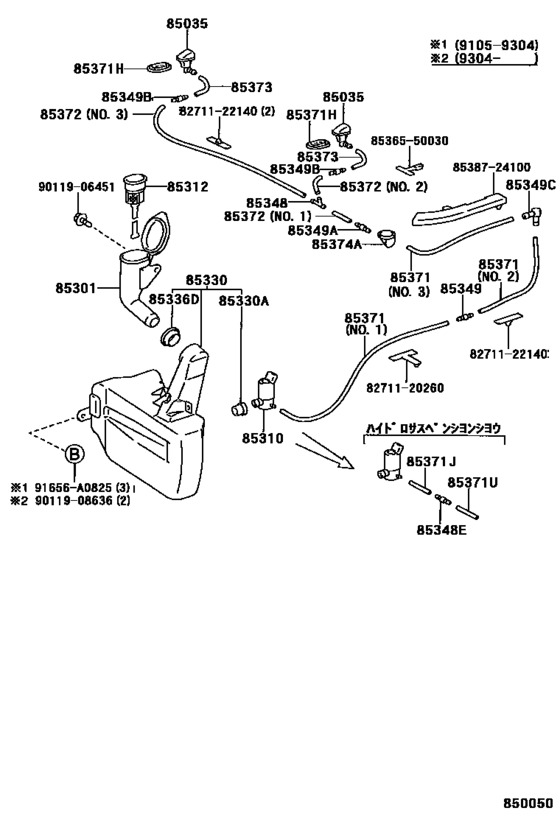

Windshield Washer ([05.1991 - 01.1994] (9105-9401)) Diagram Toyota SOARER
- Year
- 1991 - 1996
- Sales region
- Japan
- Frame
- UZZ32
- grade
- GTL
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- From
- 05.1991
- To
- 08.1996
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85385-22020-A2
Nozzle Sub-Assy, Washer
[06.1993 - 08.1998] JZZ3#,UZZ3# SUPER WHITE PEARL M,051 |
85385-22020-A2 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-A1
Nozzle Sub-Assy, Washer
[06.1993 - 08.1998] JZZ3#,UZZ3# SUPER WHITE PEARL M,051 |
85381-30060-A1 |
— | ||
|
85035
|
85035
85385-24010-A0
Nozzle Sub-Assy, Washer
[05.1991 - 06.1993] JZZ30,UZZ3# SUPER WHT PEARL MICA,051 |
85385-24010-A0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-A1
Nozzle Sub-Assy, Washer
[05.1991 - 06.1993] JZZ30,UZZ3# SUPER WHT PEARL MICA,051 |
85381-30060-A1 |
— | ||
|
85035
|
85035
85385-24010-B0
Nozzle Sub-Assy, Washer
[05.1991 - 06.1993] JZZ30,UZZ3# SUPER SILVER 3 M,176 |
85385-24010-B0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-30020-B0
Nozzle Sub-Assy, Washer
[05.1991 - 06.1993] JZZ30,UZZ3# SUPER SILVER 3 M,176 |
85385-30020-B0 |
— | ||
|
85035
|
85035
85385-24010-B2
Nozzle Sub-Assy, Washer
[01.1994 - 09.1995] JZZ3#,UZZ3# BLUISH SILVER M.,1A0 |
85385-24010-B2 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-B1
Nozzle Sub-Assy, Washer
[01.1994 - 09.1995] JZZ3#,UZZ3# BLUISH SILVER M.,1A0 |
85381-30060-B1 |
— | ||
|
85035
|
85035
85385-24010-C0
Nozzle Sub-Assy, Washer
[05.1992 - 01.1994] JZZ30,UZZ3# BLACK,202 |
85385-24010-C0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-32030
Nozzle Sub-Assy, Washer
[05.1992 - 01.1994] JZZ30,UZZ3# BLACK,202 |
85385-32030 |
— | ||
|
85035
|
85035
85385-24010-D0
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# RED MICA,3K3 ,4K9 |
85385-24010-D0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-D0
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# RED MICA,3K3 ,4K9 |
85381-30060-D0 |
— | ||
|
85035
|
85035
85385-24010-D1
Nozzle Sub-Assy, Washer
[01.1994 - 09.1995] JZZ3#,UZZ3# SUPER RED 4,3L2 |
85385-24010-D1 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-D0
Nozzle Sub-Assy, Washer
[01.1994 - 09.1995] JZZ3#,UZZ3# SUPER RED 4,3L2 |
85381-30060-D0 |
— | ||
|
85035
|
85035
85385-24010-D2
Nozzle Sub-Assy, Washer
[05.1995 - 09.1997] JZZ3#,UZZ3# WINE RED MC.,3L4 |
85385-24010-D2 |
— | ||
|
85035
|
85035
85385-24010-E0
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# BEIGE METALLIC,4K9 |
85385-24010-E0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-33080-E0
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# BEIGE METALLIC,4K9 |
85385-33080-E0 |
— | ||
|
85035
|
85035
85385-24010-G0
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# BLUISH GREEN M.I.O,6M2 |
85385-24010-G0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-30040-G2
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# BLUISH GREEN M.I.O,6M2 |
85385-30040-G2 |
— | ||
|
85035
|
85035
85385-24010-G1
Nozzle Sub-Assy, Washer
[05.1991 - 01.1994] JZZ30,UZZ3# GRAYISH GREEN M.,6M3 |
85385-24010-G1 |
— | ||
|
85035
|
85035
85385-24010-G2
Nozzle Sub-Assy, Washer
[01.1994 - 05.1995] JZZ3#,UZZ3# MI. GR. GREEN MCGR,6N1 |
85385-24010-G2 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-24020-G2
Nozzle Sub-Assy, Washer
[01.1994 - 05.1995] JZZ3#,UZZ3# MI. GR. GREEN MCGR,6N1 |
85385-24020-G2 |
— | ||
|
85035
|
85035
85385-24010-J0
Nozzle Sub-Assy, Washer
[05.1991 - 06.1993] JZZ30,UZZ3# DARK BLUE MCFP,8J5 |
85385-24010-J0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-J0
Nozzle Sub-Assy, Washer
[05.1991 - 06.1993] JZZ30,UZZ3# DARK BLUE MCFP,8J5 |
85381-30060-J0 |
— | ||
|
85035
|
85035
85385-24020-B1
Nozzle Sub-Assy, Washer
[09.1995 - 08.1998] JZZ3#,UZZ3# BLUISH SILVER M.,1A0 |
85385-24020-B1 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-B1
Nozzle Sub-Assy, Washer
[09.1995 - 08.1998] JZZ3#,UZZ3# BLUISH SILVER M.,1A0 |
85381-30060-B1 |
— | ||
|
85035
|
85035
85385-24020-D1
Nozzle Sub-Assy, Washer
[09.1995 - 12.2000] JZZ3#,UZZ3# SUPER RED 4,3L2 |
85385-24020-D1 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-D0
Nozzle Sub-Assy, Washer
[09.1995 - 12.2000] JZZ3#,UZZ3# SUPER RED 4,3L2 |
85381-30060-D0 |
— | ||
|
85035
|
85035
85385-30010-J0
Nozzle Sub-Assy, Washer
[06.1993 - 01.1994] JZZ30,UZZ3# DK.BLUE MCFP,8J5 |
85385-30010-J0 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-J0
Nozzle Sub-Assy, Washer
[06.1993 - 01.1994] JZZ30,UZZ3# DK.BLUE MCFP,8J5 |
85381-30060-J0 |
— | ||
|
85035
|
85035
85385-30020-B0
Nozzle Sub-Assy, Washer
[06.1993 - 01.1994] JZZ30,UZZ3# SUPER SILVER 3 M,176 |
85385-30020-B0 |
— | ||
|
85035
|
85035
85385-32030
Nozzle Sub-Assy, Washer
[01.1994 - 12.2000] JZZ3#,UZZ3# 202 ,6M2 ,8J5 |
85385-32030 |
— | ||
|
85310
|
85310
85310-20170
Motor And Pump Assy, Windshield Washer
[05.1991 - 03.1992] JZZ30,UZZ3# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
85310-20170 |
— | ||
|
85310
|
85310
85310-20210 Motor And Pump Assy, Windshield Washer[05.1991 - 10.1992] JZZ30,UZZ3# |
85310-20210 |
US $151.67 |
||
|
85310
|
85310
85330-12280 Motor And Pump Assy, Windshield Washer[03.1992 - 06.1993] JZZ30,UZZ3# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
85330-12280 |
US $76.88 |
||
|
85330
|
85330
85315-24050
Jar Assy, Windshield Washer
[05.1991 - 08.1996] UZZ32 |
85315-24050 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[05.1991 -] JZZ3#,UZZ3# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[05.1991 -] JZZ3#,UZZ3# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[05.1991 -] JZZ3#,UZZ3# |
90068-32002 |
US $7.46 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[01.1994 -] JZZ3#,UZZ3# |
85348-12250 |
from US $0.55 |
||
|
85348E
|
85348E
85349-89122 Valve Sub-Assy, Washer[01.1994 - 08.1996] UZZ32 |
85349-89122 |
from US $1.25 |
||
|
85349
|
85349
85334-22470 Joint, Windshield Washer Hose, No.1[05.1991 - 01.1994] JZZ30,UZZ3# |
85334-22470 |
US $0.84 |
||
|
85349
|
85349
85375-24100
Joint, Windshield Washer Hose, No.1
[01.1994 - 08.1996] UZZ32 |
85375-24100 |
— | ||
|
85349A
|
85349A
85334-22470 Joint, Windshield Washer Hose, No.1[01.1994 - 08.1996] UZZ32 |
85334-22470 |
US $0.84 |
||
|
85349A
|
85349A
85349-89122 Valve Sub-Assy, Washer[05.1991 - 01.1994] UZZ3# |
85349-89122 |
from US $1.25 |
||
|
85349B
|
85349B
85349-89122 Valve Sub-Assy, Washer[05.1991 -] JZZ3#,UZZ3# |
85349-89122 |
from US $1.25 |
||
|
85349C
|
85349C
85355-20200 Joint, Windshield Washer Hose, No.1[05.1991 - 01.1994] UZZ3# ＮＯ．２ |
85355-20200 |
from US $0.99 |
||
|
85349C
|
85349C
85375-24100
Joint, Windshield Washer Hose, No.1
[05.1991 - 01.1994] UZZ32 ＮＯ．１ |
85375-24100 |
— | ||
|
85371
|
85371
85389-24100
Hose, Windshield Washer (From Motor To Joint)
[05.1991 - 01.1994] UZZ3# ＮＯ．２ |
85389-24100 |
— | ||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[01.1994 - 08.1996] UZZ32 ＊Ｈ，Ｌ＝６００,ＮＯ．２,ＮＯ．１ |
90099-33075 |
from US $6.57 |
||
|
85371H
|
85371H
85371-50010 Cover, Washer Nozzle Service Hole[05.1991 -] JZZ3#,UZZ3# |
85371-50010 |
US $1.46 |
||
|
85371J
|
85371J
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1991 - 08.1996] UZZ32 ＊Ｈ，Ｌ＝２７０ |
90446-07001 |
from US $2.10 |
||
|
85371U
|
85371U
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1991 - 08.1996] UZZ32 ＊Ｈ，Ｌ＝４０ |
90099-33080 |
from US $8.31 |
||
|
85372
|
85372
85389-24080
Hose, Windshield Washer (From Joint To Joint), No.1
[05.1991 - 01.1994] UZZ3# 長さ＝８０,ＮＯ．１ |
85389-24080 |
— | ||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1991 - 01.1994] JZZ30 ＊Ｈ，Ｌ＝５０,ＮＯ．１; JZZ30,UZZ32 ＊Ｈ，Ｌ＝１００,ＮＯ．２ |
90099-33080 |
from US $8.31 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.1994 -] JZZ3#,UZZ3# ＊Ｈ，Ｌ＝２００ |
90099-33080 |
from US $8.31 |
||
|
85373
|
85373
90099-33723
Tube, Rubber
[05.1991 - 01.1994] JZZ30,UZZ3# ＊Ｈ，Ｌ＝１８０ |
90099-33723 |
— | ||
| replacement | |||||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1991 - 01.1994] JZZ30,UZZ3# ＊Ｈ，Ｌ＝１８０ |
90099-33080 |
from US $8.31 |
||
|
85374A
|
85374A
85374-50010 Protector, Washer Hose[05.1991 -] JZZ3#,UZZ3# |
85374-50010 |
US $2.33 |
||
|
91656A0825
|
91656A0825
91656-A0825 Bolt, Radiator Side Support Plate |
91656-A0825 |
US $2.18 |
||
| replacement | |||||
|
91656A0825
|
91656A0825
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
8271120260
|
8271120260
82711-20260 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20260 |
US $2.33 |
||
|
8271122140
|
8271122140
82711-22140 Wire, Fuse To Fuse(for Combustion Heater) |
82711-22140 |
US $3.84 |
||
|
8536550030
|
8536550030
85365-50030
Insulator, Windshield Washer Jar
|
85365-50030 |
— | ||
|
8538724100
|
8538724100
85387-24100
Clamp No.1 (for Windseield Washer)
|
85387-24100 |
— | ||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
US $1.12 |
||
|
9011908636
|
9011908636
90119-08636 BOLT |
90119-08636 |
US $1.44 |
||
