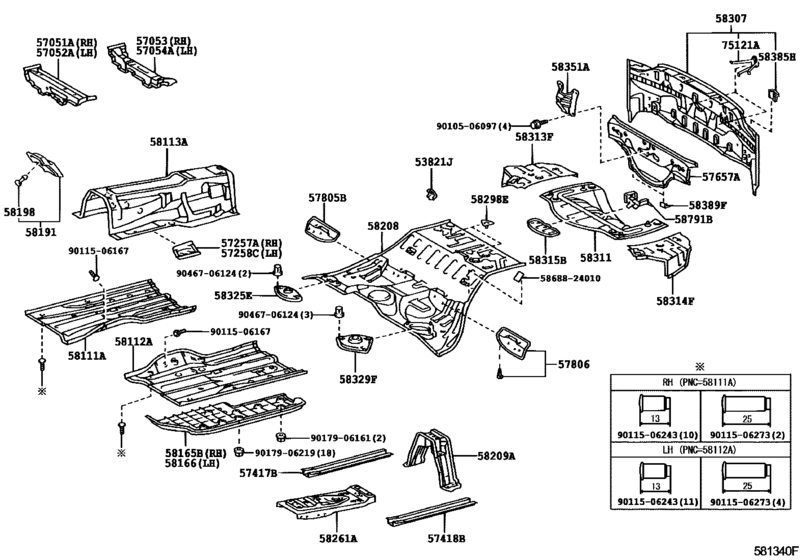

Floor Pan & Lower Back Panel ([04.2001 - 08.2005] (0104-0508)) Diagram Toyota SOARER
- Year
- 2001 - 2005
- Sales region
- Japan
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- From
- 04.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SOARER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821J
|
53821J
53821-16010 Bracket, Front Fender, Rear Rh[04.2001 - 08.2005] UZZ40 |
53821-16010 |
US $4.48 |
||
|
57051A
|
57051A
57051-24010 Member Sub-Assy, Front Floor Cross, Rh[04.2001 - 08.2005] UZZ40 |
57051-24010 |
US $77.17 |
||
|
57052A
|
57052A
57052-24010 Member Sub-Assy, Front Floor Cross, Lh[04.2001 - 08.2005] UZZ40 |
57052-24010 |
US $77.17 |
||
|
57053
|
57053
57053-24010 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[04.2001 - 08.2005] UZZ40 |
57053-24010 |
US $60.28 |
||
|
57054A
|
57054A
57054-24010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[04.2001 - 08.2005] UZZ40 |
57054-24010 |
US $60.28 |
||
|
57257A
|
57257A
57257-30030 Bracket, Engine Rear Mounting Member, Rh[04.2001 - 08.2005] UZZ40 |
57257-30030 |
US $33.63 |
||
|
57258C
|
57258C
57258-30070 Bracket, Engine Rear Mounting Member, Lh[04.2001 - 08.2005] UZZ40 |
57258-30070 |
US $35.38 |
||
|
57417B
|
57417B
57417-24030 Reinforcement, Front Floor Under[04.2001 - 08.2005] UZZ40 |
57417-24030 |
US $45.43 |
||
|
57418B
|
57418B
57418-24030 Reinforcement, Front Floor Under, Lh[04.2001 - 08.2005] UZZ40 |
57418-24030 |
US $45.43 |
||
|
57657A
|
57657A
57657-24010 Bracket, Exhaust Pipe Mounting, No.2[04.2001 - 08.2005] UZZ40 |
57657-24010 |
US $67.85 |
||
| replacement | |||||
|
57657A
|
57657A
57657-24011 Bracket, Exhaust Pipe Mounting, No.2[04.2001 - 08.2005] UZZ40 |
57657-24011 |
US $56.49 |
||
|
57805B
|
57805B
57805-24020 Reinforcement Sub-Assy, Belt Anchor, Rh[04.2001 - 08.2005] UZZ40 |
57805-24020 |
US $30.43 |
||
|
57806
|
57806
57806-24900 Reinforcement Sub-Assy, Belt Anchor, Lh[04.2001 - 08.2005] UZZ40 |
57806-24900 |
US $23.59 |
||
|
58111A
|
58111A
58111-24900 Pan, Front Floor, Rh[04.2001 - 05.2004] UZZ40..5FC |
58111-24900 |
US $251.89 |
||
| replacement | |||||
|
58111A
|
58111A
58111-24901 Pan, Front Floor, Rh[04.2001 - 05.2004] UZZ40..5FC |
58111-24901 |
US $251.89 |
||
|
58111A
|
58111A
58111-24901 Pan, Front Floor, Rh[05.2004 - 08.2005] UZZ40 |
58111-24901 |
US $251.89 |
||
|
58112A
|
58112A
58112-24902 Panel, Front Floor, Lh[04.2001 - 05.2004] UZZ40..5FC |
58112-24902 |
US $251.89 |
||
| replacement | |||||
|
58112A
|
58112A
58112-24903 Panel, Front Floor, Lh[04.2001 - 05.2004] UZZ40..5FC |
58112-24903 |
US $251.89 |
||
|
58112A
|
58112A
58112-24903 Panel, Front Floor, Lh[05.2004 - 08.2005] UZZ40 |
58112-24903 |
US $251.89 |
||
|
58113A
|
58113A
58113-24050 Panel, Front Floor, Center[04.2001 - 08.2005] UZZ40 |
58113-24050 |
US $441.17 |
||
|
58165B
|
58165B
58165-24020 Cover, Front Floor, Rh[04.2001 - 08.2005] UZZ40 |
58165-24020 |
US $107.74 |
||
|
58166
|
58166
58166-24010 Cover, Front Floor, Lh[04.2001 - 08.2005] UZZ40 |
58166-24010 |
US $107.74 |
||
|
58191
|
58191
58191-30070 Footrest, Front Floor[04.2001 - 08.2005] UZZ40 |
58191-30070 |
US $39.17 |
||
|
58198
|
58198
58198-33010 Clip, Footrest[04.2001 - 08.2005] UZZ40 |
58198-33010 |
US $4.02 |
||
|
58208
|
58208
58211-24060 Pan, Center Floor[04.2001 - 08.2005] UZZ40 |
58211-24060 |
US $382.93 |
||
|
58209A
|
58209A
58209-24020 Reinforcement Sub-Assy, Drive Shaft Center Support[04.2001 - 08.2005] UZZ40 |
58209-24020 |
US $96.10 |
||
|
58261A
|
58261A
58261-24050 Cover, Transmission[04.2001 - 08.2005] UZZ40 |
58261-24050 |
US $85.90 |
||
|
58298E
|
58298E
58298-30021 Bracket, Hot Air Intake, No.1[04.2001 - 08.2005] UZZ40 |
58298-30021 |
US $3.64 |
||
|
58307
|
58307
58307-24070 Panel Sub-Assy, Body Lower Back[04.2001 - 08.2005] UZZ40 |
58307-24070 |
US $304.30 |
||
| replacements | |||||
|
58307
|
58307
58307-24071 Panel Sub-Assy, Body Lower Back[04.2001 - 08.2005] UZZ40 |
58307-24071 |
US $253.34 |
||
|
58307
|
58307
90950-01864 Plug, Hole(For Luggage Compartment Door Panel)[04.2001 - 08.2005] UZZ40 |
90950-01864 |
US $1.60 |
||
|
58311
|
58311
58311-24050 Pan, Rear Floor[04.2001 - 08.2005] UZZ40 |
58311-24050 |
US $154.34 |
||
|
58313F
|
58313F
58313-24040 Extension, Rear Floor Pan To Quarter Panel, Rh[04.2001 - 08.2005] UZZ40 |
58313-24040 |
US $48.48 |
||
|
58314F
|
58314F
58314-24040 Extension, Rear Floor Pan To Quarter Panel, Lh[04.2001 - 08.2005] UZZ40 |
58314-24040 |
US $48.48 |
||
|
58315B
|
58315B
58315-24020 Panel, Rear Floor, Front[04.2001 - 08.2005] UZZ40 |
58315-24020 |
US $26.94 |
||
|
58325E
|
58325E
58325-30010 Cover, Rear Floor Service Hole[04.2001 - 08.2005] UZZ40 |
58325-30010 |
US $9.32 |
||
|
58329F
|
58329F
58329-30020 Cover, Rear Floor Service Hole, No.2[04.2001 - 08.2005] UZZ40 |
58329-30020 |
US $17.76 |
||
|
58351A
|
58351A
51938-24010 Bracket, Spare Wheel Carrier[04.2001 - 08.2005] UZZ40 |
51938-24010 |
US $37.39 |
||
|
58385H
|
58385H
58385-53010 Bracket, Rear Bumper Cover[04.2001 - 08.2005] UZZ40 |
58385-53010 |
US $6.29 |
||
|
58389F
|
58389F
58389-30020 Bracket, Lower Back Cover[04.2001 - 08.2005] UZZ40 |
58389-30020 |
US $3.20 |
||
|
58791B
|
58791B
58791-30030 Carrier, Jack[04.2001 - 08.2005] UZZ40 |
58791-30030 |
US $14.71 |
||
|
75121A
|
75121A
75121-24030 Bracket, Rear License Plate[04.2001 - 08.2005] UZZ40 |
75121-24030 |
US $9.03 |
||
|
5868824010
|
5868824010
58688-24010 New Genuine Part |
58688-24010 |
US $5.82 |
||
|
9010506097
|
9010506097
90105-06097
BOLT
|
90105-06097 |
— | ||
| replacement | |||||
|
9010506097
|
9010506097
90119-06871 BOLT WWASHER |
90119-06871 |
US $0.96 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011506273
|
9011506273
90115-06273 New Genuine Part |
90115-06273 |
US $0.52 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.05 |
||
| replacement | |||||
|
9017906219
|
9017906219
90182-A0005 Nut |
90182-A0005 |
US $2.22 |
||
|
9046706124
|
9046706124
90467-06124 New Genuine Part |
90467-06124 |
US $3.20 |
||
