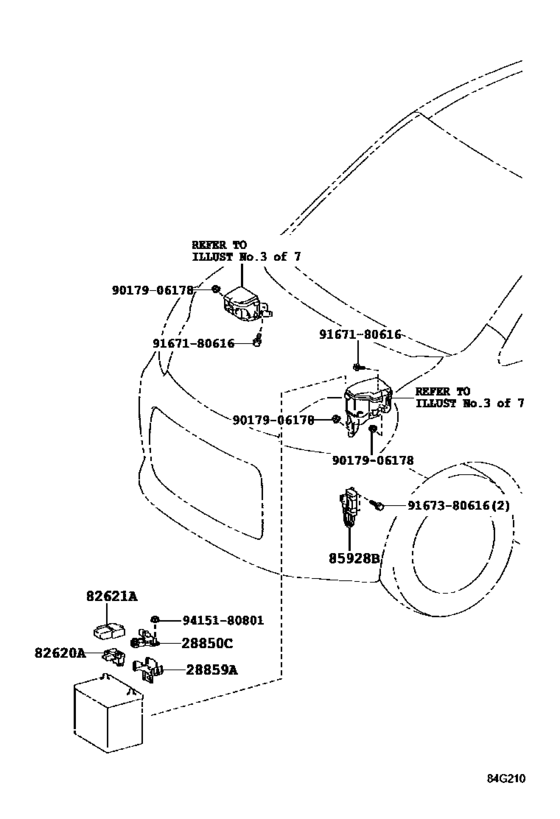

Switch & Relay & Computer ([07.2015 - ] ENGINE ROOM (1507- )) Diagram Toyota SPADE
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- NSP141
- grade
- F
- ENGINE
- 2NRFKE
- TRANSMISSION
- CVT
- DESTINATION
- HON
- From
- 07.2015
- Vehicle Model
- SPADE
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28850C
|
28850C
28850-36030 Sensor Assy, Battery State[07.2015 -] 2NRFKE..NSP141 |
28850-36030 |
from US $100.85 |
||
|
28859A
|
28859A
28859-47020 Holder, Battery Current Sensor[07.2015 -] 2NRFKE..NSP141 |
28859-47020 |
US $6.29 |
||
|
82620A
|
82620A
82620-52070 Block Assy, Fusible LinkFUSIBLE LINK [07.2015 -] NSP141 |
82620-52070 |
from US $9.40 |
||
|
82621A
|
82621A
82621-52140 Cover, Fusible Link[07.2015 -] NSP141 |
82621-52140 |
US $8.74 |
||
|
85928B
|
85928B
85928-52032 Resistor, Cooling Fan[07.2015 -] NSP141 |
85928-52032 |
from US $71.90 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.80 |
