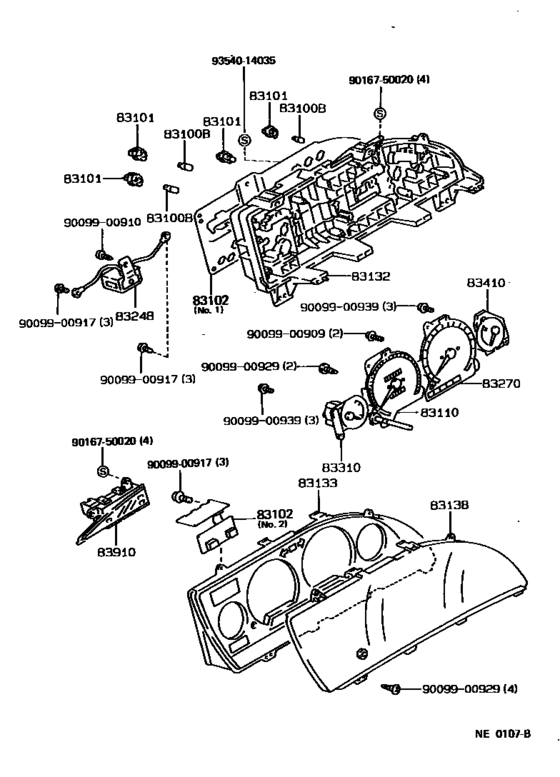

Meter ([05.1987 - ] (8705- )AV2,G,RVS,SE..CBR,DSL,EFI) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE95
- grade
- SE
- body
- 4D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 10.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83101-20080
Bulb, Combination Meter, No.1
[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ １．４Ｗ，ソケット付き |
83101-20080 |
— | ||
|
83100B
|
83100B
83109-12030 Bulb, Combination Meter, No.1[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ ３．４Ｗ，ブルー キャップ |
83109-12030 |
US $1.92 |
||
|
83100B
|
83100B
83109-20030
Bulb, Combination Meter, No.1
[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ １．４Ｗ，ブルー キャップ |
83109-20030 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ ３．４Ｗ |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# １２Ｖ ３．４Ｗ |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[05.1987 - 06.1991] AE9#,CE9#,EE9# 12V 3.4W BULB |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1987 - 06.1991] AE9#,CE9#,EE9# 14V 1.4W BULB |
83101-14040 |
US $2.93 |
||
|
83102
|
83102
83247-1E480
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1987 - 05.1989] AE91..G,SE;AE95..5F..(AV2,RVS,SE) NO.1 |
83247-1E480 |
— | ||
|
83110
|
83110
83110-1A840 Speedometer Assy[05.1987 - 05.1989] AE91,95..AV2,G,RVS,SE |
83110-1A840 |
US $419.33 |
||
|
83132
|
83132
83132-1A250
Case, Combination Meter
[05.1987 - 06.1991] AE91,95,CE90,95..(AV2,G,RVS,SE)..(CBR,DSL,EFI) |
83132-1A250 |
— | ||
|
83133
|
83133
83133-1A770
Plate, Combination Meter, No.1
[05.1987 - 08.1989] AE95..5F..(AV2,SE);AE91..(G,SE)..(CBR,EFI) |
83133-1A770 |
— | ||
|
83138
|
83138
83138-1A010
Glass, Speedometer
[05.1987 - 05.1989] AE91,95,CE90..AV2,G,RVS,SE |
83138-1A010 |
— | ||
|
83248
|
83248
86640-12100 Chime, Speed Warning[05.1987 - 05.1989] AE91,95,CE90..AV2,G,RVS,SE |
86640-12100 |
US $36.25 |
||
|
83270
|
83270
83242-1E030 Tachometer Assy, Engine[05.1987 - 05.1989] AE91,95..AV2,G,RVS,SE |
83242-1E030 |
US $483.39 |
||
|
83310
|
83310
83243-1A230 Gage Assy, Fuel Receiver[05.1987 - 05.1989] AE91,95,CE90..AV2,G,SE |
83243-1A230 |
US $119.39 |
||
|
83410
|
83410
83244-1A650 Gage Assy, Water Temperature Receiver[05.1987 - 05.1989] AE91,95,CE90..AV2,G,RVS,SE |
83244-1A650 |
US $58.24 |
||
|
83910
|
83910
83910-12400 Clock Assy[05.1987 - 05.1989] AE91,95,CE90..AV2,G,RVS,SE |
83910-12400 |
US $410.59 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
|
9354014035
|
9354014035
93540-14035 New Genuine Part |
93540-14035 |
US $2.33 |
||
