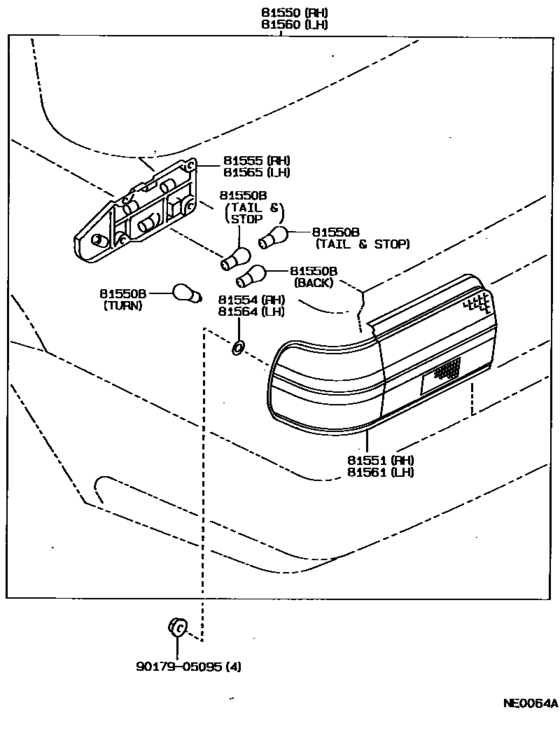

Rear Combination Lamp ([05.1987 - 08.1989] (8705-8908)4D) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE95
- grade
- SE
- body
- 4D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 10.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-1A401 Lamp Assy, Rear Combination, Rh[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81550-1A401 |
US $288.29 |
||
| replacement | |||||
|
81550
|
81550
81550-1A790 Lamp Assy, Rear Combination, Rh[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81550-1A790 |
US $288.29 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[09.1987 - 05.1989] AE9#,CE90,EE90..4D １２Ｖ ２１Ｗ,12V 21W,TURN OR BACK |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1987 - 05.1988] AE9#,CE90,EE90..4D １２Ｖ ２１／５Ｗ,STOP & TAIL; AE95..EFI １２Ｖ ２１／５Ｗ,12V 21/5W,STOP & TAIL |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-1A401
Lens, Rear Combination Lamp, Rh
[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81551-1A401 |
— | ||
| replacement | |||||
|
81551
|
81551
81551-1A790 Lens, Rear Combination Lamp, Rh[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81551-1A790 |
US $230.05 |
||
|
81554
|
81554
81554-32150 Gasket, Rear Combination Lamp Body, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
81554-32150 |
US $4.80 |
||
|
81555
|
81555
81555-1A400 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
81555-1A400 |
US $42.22 |
||
|
81560
|
81560
81560-1A361 Lamp Assy, Rear Combination, Lh[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81560-1A361 |
US $288.29 |
||
| replacement | |||||
|
81560
|
81560
81560-1A750 Lamp Assy, Rear Combination, Lh[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81560-1A750 |
US $288.29 |
||
|
81561
|
81561
81561-1A361
Lens, Rear Combination Lamp, Lh
[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81561-1A361 |
— | ||
| replacement | |||||
|
81561
|
81561
81561-1A750 Lens, Rear Combination Lamp, Lh[09.1987 - 05.1989] AE9#,CE90,EE90..4D |
81561-1A750 |
US $230.05 |
||
|
81564
|
81564
81554-32150 Gasket, Rear Combination Lamp Body, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
81554-32150 |
US $4.80 |
||
|
81565
|
81565
81565-1A360 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
81565-1A360 |
US $42.22 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
