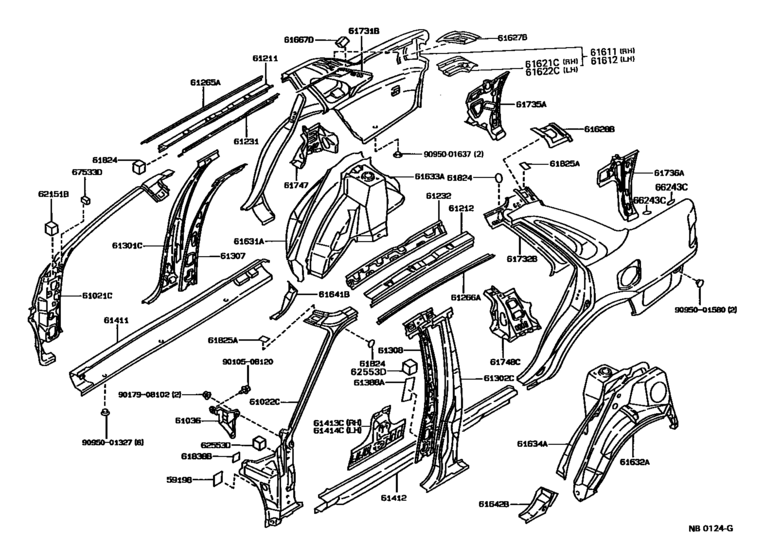

Side Member ([05.1987 - ] (8705- )4D) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- AE95
- grade
- SE
- body
- 4D
- ENGINE
- 4AF
- TRANSMISSION
- MTM
- Model
- SPRINTER
- From
- 10.1987
- To
- 05.1989
- Gear Shift Type
- 5F
- Vehicle Model
- SPRINTER
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
59198
|
59198
59198-12010 Seal, Noise Shutter[05.1987 - 11.1989] CE95..LX;AE9#,CE90,EE90 |
59198-12010 |
US $1.60 |
||
|
61021C
|
61021C
61021-12820 Pillar Sub-Assy, Front Body, Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61021-12820 |
US $630.45 |
||
|
61022C
|
61022C
61022-12830 Pillar Sub-Assy, Front Body, Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61022-12830 |
US $630.45 |
||
|
61036
|
61036
61036-12040 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[05.1987 - 08.1989] AE95..5F..AV2;AE9#,CE9#,EE9#..AV1,DX,G,GT,L,LX,MX,RVS,SE,STD,XI,XL,XS |
61036-12040 |
US $26.50 |
||
|
61211
|
61211
61211-12230 Rail, Roof Side, Outer Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61211-12230 |
US $53.87 |
||
|
61212
|
61212
61212-12230 Rail, Roof Side, Outer Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61212-12230 |
US $53.87 |
||
|
61231
|
61231
61231-12450 Rail, Roof Side, Inner Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61231-12450 |
US $43.53 |
||
|
61232
|
61232
61232-12360 Rail, Roof Side, Inner Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61232-12360 |
US $43.53 |
||
|
61265A
|
61265A
61265-12120 Channel, Roof Drip Side, Center Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61265-12120 |
US $26.50 |
||
|
61266A
|
61266A
61266-12120 Channel, Roof Drip Side, Center Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61266-12120 |
US $26.50 |
||
|
61301C
|
61301C
61301-12190 Pillar Sub-Assy, Center Body, Outer Rh[05.1987 - 05.1989] AE91..SE..EFI; AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
61301-12190 |
US $310.13 |
||
|
61302C
|
61302C
61302-12250 Pillar Sub-Assy, Center Body, Outer Lh[05.1987 - 05.1989] AE91..SE..EFI; AE91..XI;AE91..CBR;AE92,95,CE9#,EE9# |
61302-12250 |
US $310.13 |
||
|
61307
|
61307
61307-12020 Pillar Sub-Assy, Center Body, Inner Rh[05.1987 - 05.1989] AE91..SE..EFI; AE91..XI;AE91..CBR;AE92,95,CE90,EE90..4D,5D |
61307-12020 |
US $139.78 |
||
|
61308
|
61308
61308-12020 Pillar Sub-Assy, Center Body, Inner Lh[05.1987 - 05.1989] AE91..SE..EFI; AE91..XI;AE91..CBR;AE92,95,CE90,EE90..4D,5D |
61308-12020 |
US $139.78 |
||
|
61388A
|
61388A
61388-12010 Plate, Center Body Pillar End, Rh[05.1987 - 11.1989] CE95..LX;AE9#,CE90,EE90 |
61388-12010 |
US $5.82 |
||
|
61411
|
61411
61411-12370 Panel, Rocker, Outer Rh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
61411-12370 |
US $299.94 |
||
|
61412
|
61412
61412-12360 Panel, Rocker, Outer Lh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
61412-12360 |
US $299.94 |
||
|
61413C
|
61413C
61413-12040 Reinforcement, Rocker Panel, No.2 Rh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
61413-12040 |
US $44.41 |
||
|
61414C
|
61414C
61414-12060 Reinforcement, Rocker Panel, No.2 Lh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
61414-12060 |
US $44.41 |
||
|
61611
|
61611
61601-1E908 Panel, Quarter, Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61601-1E908 |
US $578.03 |
||
|
61612
|
61612
61602-1E915 Panel, Quarter, Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D..(GT,LX,MX,SE) |
61602-1E915 |
US $578.03 |
||
|
61621C
|
61621C
61621-12290 Trough, Luggage Compartment Opening, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
61621-12290 |
US $30.72 |
||
| replacement | |||||
|
61621C
|
61621C
61621-12291 Trough, Luggage Compartment Opening, Rh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
61621-12291 |
US $30.43 |
||
|
61622C
|
61622C
61622-12290 Trough, Luggage Compartment Opening, Lh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
61622-12290 |
US $30.72 |
||
| replacement | |||||
|
61622C
|
61622C
61622-12291 Trough, Luggage Compartment Opening, Lh[05.1987 - 05.1989] AE9#,CE90,EE90..4D |
61622-12291 |
US $30.43 |
||
|
61627B
|
61627B
61627-12030 Extension, Quarter Panel, Upper Rear Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61627-12030 |
US $21.99 |
||
|
61628B
|
61628B
61628-12050 Extension, Quarter Panel, Upper Rear Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61628-12050 |
US $21.99 |
||
|
61631A
|
61631A
61631-12230
Panel, Quarter Wheel House, Outer Rh
[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D,5D |
61631-12230 |
— | ||
|
61632A
|
61632A
61632-12280 Panel, Quarter Wheel House, Outer Lh[10.1987 - 06.1991] AE95,CE95..4D |
61632-12280 |
US $141.23 |
||
|
61633A
|
61633A
61607-12912
Panel, Quarter Wheel House, Inner Rh
[10.1987 - 06.1991] AE95,CE95..4D |
61607-12912 |
— | ||
|
61634A
|
61634A
61608-12910 Panel, Quarter Wheel House, Inner Lh[10.1987 - 06.1991] AE95,CE95..4D |
61608-12910 |
US $289.74 |
||
|
61641B
|
61641B
61641-12040 Gusset, Quarter Wheel House, Rh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
61641-12040 |
US $20.68 |
||
|
61642B
|
61642B
61642-12040 Gusset, Quarter Wheel House, Lh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
61642-12040 |
US $20.68 |
||
|
61667D
|
61667D
61667-12060 Seal, Quarter Panel[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61667-12060 |
US $6.26 |
||
|
61731B
|
61731B
61731-12430 Panel, Roof Side, Inner Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61731-12430 |
US $62.61 |
||
|
61732B
|
61732B
61732-12390 Panel, Roof Side, Inner Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61732-12390 |
US $62.61 |
||
|
61735A
|
61735A
61735-12900 Panel, Roof Side, Inner Rear Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61735-12900 |
US $54.60 |
||
|
61736A
|
61736A
61736-12903 Panel, Roof Side, Inner Rear Lh[10.1987 - 06.1991] AE95,CE95..4D |
61736-12903 |
US $43.83 |
||
|
61747
|
61747
61747-12110 Brace, Roof Side Inner To Wheel House, Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61747-12110 |
US $42.08 |
||
|
61748C
|
61748C
61748-12110 Brace, Roof Side Inner To Wheel House, Lh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61748-12110 |
US $38.15 |
||
|
61824
|
61824
61824-12020 Plate, Noise Control, No.1[05.1987 - 05.1989] AE9#,CE90,EE90 |
61824-12020 |
US $2.18 |
||
| replacement | |||||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[05.1987 - 05.1989] AE9#,CE90,EE90 |
61824-12040 |
US $1.89 |
||
|
61825A
|
61825A
61825-12010 Cover, Roof Side, Inner Upper Rh[05.1987 - 06.1991] AE9#,CE90,95,EE90..4D |
61825-12010 |
US $2.04 |
||
|
61838B
|
61838B
61838-12010 Plate, Noise Control, No.5[05.1987 - 11.1989] CE95..LX;AE9#,CE90,EE90 |
61838-12010 |
US $3.20 |
||
|
62151B
|
62151B
62151-12100 Pad, Cowl Side Silencer[05.1987 - 11.1989] CE95..LX;AE9#,CE90,EE90 |
62151-12100 |
US $14.71 |
||
|
62553D
|
62553D
62553-12120 Pad, Cowl Side Silencer[05.1987 - 11.1989] CE95..LX;AE9#,CE90,EE90 |
62553-12120 |
US $1.60 |
||
|
67533D
|
67533D
67533-12010 Pad, Front Door Lower Frame Garnish, Rh[05.1987 - 11.1989] CE95..LX;AE9#,CE90,EE90 |
67533-12010 |
US $6.41 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
|
9095001637
|
9095001637
90950-01637 PLUG HOLE |
90950-01637 |
US $1.76 |
||
