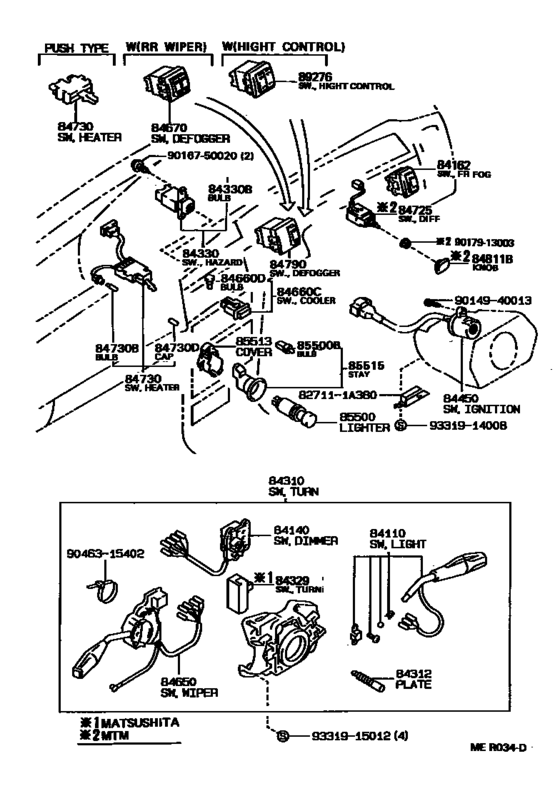

Switch & Relay & Computer ([09.1990 - ] (9009- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- AE95
- grade
- AV1
- body
- WG
- ENGINE
- 4AFHE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
- Fuel Induction
- EFIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80005 Switch Assy, Light Control, No.1[09.1990 - 08.1995] AE95 東海理化 |
84112-80005 |
US $70.18 |
||
|
84110
|
84110
84112-80007 Switch Assy, Light Control, No.1[09.1990 - 08.1995] AE95 ＭＡＴＳＵＳＨＩＴＡ |
84112-80007 |
US $63.48 |
||
|
84140
|
84140
84140-12210 Switch Assy, Headlamp Dimmer[09.1990 - 03.1991] AE95 ＭＡＴＳＵＳＨＩＴＡ |
84140-12210 |
US $77.17 |
||
| replacement | |||||
|
84140
|
84140
84140-12320 Switch Assy, Headlamp Dimmer[09.1990 - 03.1991] AE95 ＭＡＴＳＵＳＨＩＴＡ |
84140-12320 |
US $66.25 |
||
|
84140
|
84140
84140-12220 Switch Assy, Headlamp Dimmer[09.1990 - 08.1995] AE95 東海理化 |
84140-12220 |
US $77.17 |
||
|
84140
|
84140
84140-12320 Switch Assy, Headlamp Dimmer[03.1991 - 08.1995] AE95 ＭＡＴＳＵＳＨＩＴＡ |
84140-12320 |
US $66.25 |
||
|
84162
|
84162
84162-12100-03
Switch, Front Fog Lamp
[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
84162-12100-03 |
— | ||
| replacement | |||||
|
84162
|
84162
84162-12100-01
Switch, Front Fog Lamp
[09.1990 - 08.1995] AE95 SHADOW GRAY,TRIM1# |
84162-12100-01 |
— | ||
|
84162
|
84162
84162-12100-04 Switch, Front Fog Lamp[09.1990 - 08.1993] AE95 DARK BLUE,TRIM8# |
84162-12100-04 |
US $53.73 |
||
| replacement | |||||
|
84162
|
84162
84162-12100-01
Switch, Front Fog Lamp
[09.1990 - 08.1993] AE95 DARK BLUE,TRIM8# |
84162-12100-01 |
— | ||
|
84310
|
84310
84310-12800 Switch Assy, Turn Signal[09.1990 - 08.1995] AE95..AV1 |
84310-12800 |
US $250.43 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[09.1990 - 08.1995] AE95 東海理化 |
84312-12040 |
from US $6.51 |
||
|
84312
|
84312
84312-12050 Plate, Horn Contact[09.1990 - 08.1995] AE95 ＭＡＴＳＵＳＨＩＴＡ |
84312-12050 |
US $14.52 |
||
|
84329
|
84329
84329-12010 Switch, Turn Signal[09.1990 - 08.1995] AE95 |
84329-12010 |
US $14.27 |
||
|
84330
|
84330
84332-12290 Switch Assy, Hazard Warning Signal[09.1990 - 08.1995] AE95 |
84332-12290 |
US $23.30 |
||
| replacement | |||||
|
84330
|
84330
84332-12291 Switch Assy, Hazard Warning Signal[09.1990 - 08.1995] AE95 |
84332-12291 |
US $23.59 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[09.1990 - 08.1995] AE95 １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $3.84 |
||
|
84450
|
84450
84450-12150
Switch Assy, Ignition Or Starter
[09.1990 - 09.1991] AE95 |
84450-12150 |
— | ||
|
84450
|
84450
84450-12170 Switch Assy, Ignition Or Starter[09.1991 - 08.1995] AE95..4FC |
84450-12170 |
US $75.71 |
||
|
84650
|
84650
84652-12430 Switch Assy, Windshield Wiper[09.1990 - 08.1995] AE95..AV1 ＭＡＴＳＵＳＨＩＴＡ |
84652-12430 |
US $96.10 |
||
| replacement | |||||
|
84650
|
84650
84652-12440 Switch Assy, Windshield Wiper[09.1990 - 08.1995] AE95..AV1 ＭＡＴＳＵＳＨＩＴＡ |
84652-12440 |
US $99.01 |
||
|
84650
|
84650
84652-12440 Switch Assy, Windshield Wiper[09.1990 - 08.1995] AE95..AV1 東海理化 |
84652-12440 |
US $99.01 |
||
|
84660C
|
84660C
84660-12120 Switch, Cooler[09.1990 - 08.1995] AE95..AV1,RVS |
84660-12120 |
US $70.62 |
||
| replacement | |||||
|
84660C
|
84660C
84660-32060 Switch, Cooler[09.1990 - 08.1995] AE95..AV1,RVS |
84660-32060 |
US $60.57 |
||
|
84660D
|
84660D
88607-20060
Bulb(For Cooler Switch)
[09.1990 - 08.1995] AE95..AV1,RVS １４Ｖ ０．０８Ａ |
88607-20060 |
— | ||
|
84670
|
84670
84670-12020-03
Switch Assy, Rear Wiper & Defogger
[09.1990 - 08.1995] AE95..AV1,RVS SHADOW GRAY,TRIM1# |
84670-12020-03 |
— | ||
|
84670
|
84670
84670-12020-04 Switch Assy, Rear Wiper & Defogger[09.1990 - 08.1993] AE95..AV1,RVS DARK BLUE,TRIM8# |
84670-12020-04 |
US $72.51 |
||
| replacement | |||||
|
84670
|
84670
84670-12020-03
Switch Assy, Rear Wiper & Defogger
[09.1990 - 08.1993] AE95..AV1,RVS DARK BLUE,TRIM8# |
84670-12020-03 |
— | ||
|
84725
|
84725
84725-13020 Switch, Center Differential Lock[09.1990 - 08.1995] AE95..4FC |
84725-13020 |
US $75.71 |
||
|
84730
|
84730
84732-12230 Switch Assy, Heater Blower[09.1990 - 08.1995] AE95..AV1,RVS |
84732-12230 |
US $62.03 |
||
|
84730
|
84730
84732-12250
Switch Assy, Heater Blower
[09.1990 - 08.1995] AE95..AV1,RVS ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
84732-12250 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[09.1990 - 08.1995] AE95..AV1,RVS １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
84730D
|
84730D
84998-10100 Cap, Heater Blower Switch Bulb[09.1990 - 08.1995] AE95..AV1,RVS |
84998-10100 |
US $3.20 |
||
|
84790
|
84790
84790-12280-03 Switch Assy, Rear Window Defogger[09.1990 - 08.1995] AE95..AV1 SHADOW GRAY,TRIM1# |
84790-12280-03 |
US $49.50 |
||
| replacement | |||||
|
84790
|
84790
84790-12280-01 Switch Assy, Rear Window Defogger[09.1990 - 08.1995] AE95..AV1 SHADOW GRAY,TRIM1# |
84790-12280-01 |
US $49.50 |
||
|
84790
|
84790
84790-12280-04 Switch Assy, Rear Window Defogger[09.1990 - 08.1993] AE95..AV1 DARK BLUE,TRIM8# |
84790-12280-04 |
US $49.50 |
||
| replacement | |||||
|
84790
|
84790
84790-12280-01 Switch Assy, Rear Window Defogger[09.1990 - 08.1993] AE95..AV1 DARK BLUE,TRIM8# |
84790-12280-01 |
US $49.50 |
||
|
85500
|
85500
85500-10120 Lighter Assy, Cigarette[08.1994 - 08.1995] AE95 |
85500-10120 |
US $54.26 |
||
|
85500
|
85500
85500-12250
Lighter Assy, Cigarette
[09.1990 - 08.1994] AE95 |
85500-12250 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-10120 Lighter Assy, Cigarette[09.1990 - 08.1994] AE95 |
85500-10120 |
US $54.26 |
||
|
85500B
|
85500B
84999-10230
Bulb, Cigarette Lighter
[09.1990 - 08.1995] AE95 １４Ｖ １．４Ｗ |
84999-10230 |
— | ||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[09.1990 - 08.1995] AE95 |
85513-12020 |
from US $5.05 |
||
|
85515
|
85515
85515-12010 Stay, Cigarette Lighter Bezel[09.1990 - 08.1995] AE95 |
85515-12010 |
US $14.71 |
||
|
827111A380
|
827111A380
82711-1A380 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1A380 |
US $12.67 |
||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9016750020
|
9016750020
90167-50020 SCREW PAN TAPPING |
90167-50020 |
US $1.92 |
||
|
9017913003
|
9017913003
90179-13003 Bolt Or Nut, Rear Window Defogger Switch Set |
90179-13003 |
US $8.15 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
