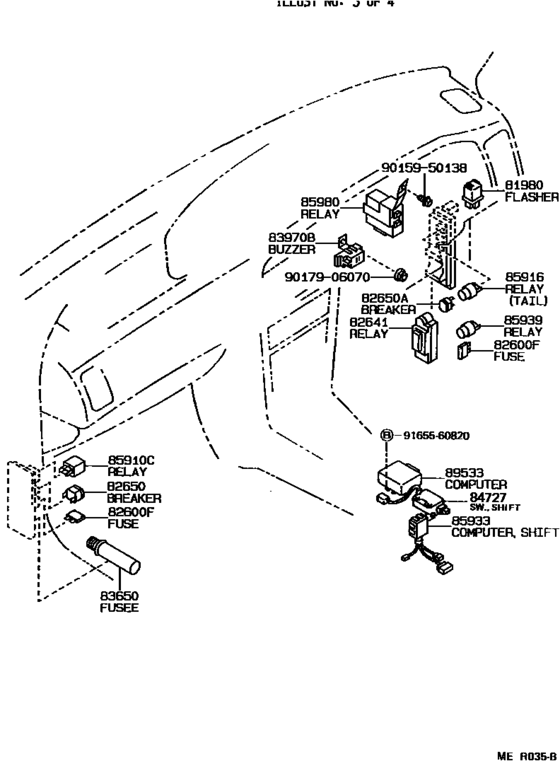

Switch & Relay & Computer ([09.1990 - ] (9009- )) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- AE95
- grade
- AV1
- body
- WG
- ENGINE
- 4AFHE
- TRANSMISSION
- ATM
- Model
- SPRINTER CARIB
- From
- 09.1990
- To
- 08.1995
- Gear Shift Type
- 4FC
- Vehicle Model
- SPRINTER CARIB
- Fuel Induction
- EFIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[09.1990 - 08.1995] AE95 |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[09.1990 - 08.1995] AE95 |
81980-32010 |
from US $54.42 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[09.1990 - 08.1995] AE95 ３０Ａ |
90982-07011 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[09.1990 - 08.1995] AE95 １０Ａ |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[09.1990 - 08.1995] AE95 １５Ａ |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[09.1990 - 08.1995] AE95 ２０Ａ |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[09.1990 - 08.1995] AE95 ７．５Ａ |
90982-09005 |
from US $1.03 |
||
|
82641
|
82641
82641-12080 Relay, Integration No.1[08.1991 - 08.1995] AE95..AV1,RVS |
82641-12080 |
US $147.06 |
||
| replacement | |||||
|
82641
|
82641
82641-12081 Relay, Integration No.1[08.1991 - 08.1995] AE95..AV1,RVS |
82641-12081 |
US $101.92 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[09.1990 - 08.1995] AE95 ３０Ａ |
82650-20011 |
US $14.08 |
||
|
82650A
|
82650A
82650-20011 Breaker Assy, Wiring Circuit, No.1[09.1990 - 08.1993] AE95 ３０Ａ |
82650-20011 |
US $14.08 |
||
|
83650
|
83650
90986-01005
Fusee
[09.1990 - 08.1995] AE95 |
90986-01005 |
— | ||
|
83970B
|
83970B
83970-12010 Buzzer Assy, Reverse Warning[09.1990 - 08.1995] AE95..4FC |
83970-12010 |
US $41.64 |
||
|
84727
|
84727
84727-12010 Switch, Shift Lock Control[09.1990 - 08.1995] AE95..4FC |
84727-12010 |
US $34.51 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[09.1990 - 08.1995] AE95 |
90987-04002 |
from US $24.67 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[09.1990 - 08.1995] AE95 MARUKO,TAIL |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95 MARUKO,TAIL |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[09.1990 - 08.1995] AE95 NIPPONDENSO,TAIL |
90987-02004 |
from US $28.70 |
||
|
85916
|
85916
90987-02006 Relay[09.1990 - 08.1995] AE95 HEAD |
90987-02006 |
from US $27.28 |
||
|
85933
|
85933
85933-12010 Computer, Shift Lock Control[09.1990 - 08.1995] AE95..4FC |
85933-12010 |
US $87.36 |
||
|
85980
|
85980
85980-12070 Relay Assy, Door Control[09.1990 - 08.1993] AE95 |
85980-12070 |
US $308.67 |
||
|
89533
|
89533
89533-13010 Computer, 4 Wheel Drive Control[09.1990 - 08.1995] AE95..4FC |
89533-13010 |
US $173.26 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.03 |
||
