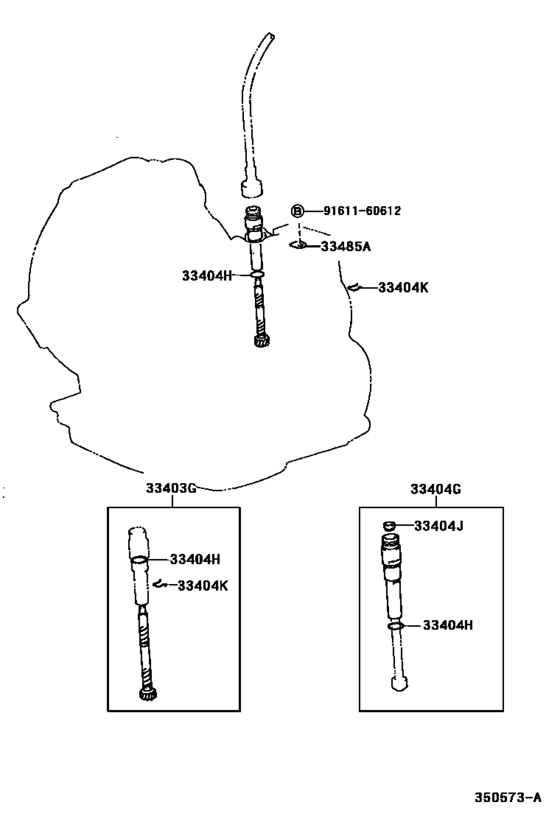

Speedometer Driven Gear (Atm) ([05.1995 - ] A132L (9505- )3FC) Diagram Toyota SPRINTER/ CARIB/ TRUENO
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- EE111
- grade
- LX
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- SPRINTER
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 3FC
- Vehicle Model
- SPRINTER
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-19305 Gear Sub-Assy, Speedometer Driven (Atm)[05.1995 - 04.1997] EE111..3FC 歯数＝２２，マーク ２２：２５ |
33403-19305 |
US $36.43 |
||
|
33404G
|
33404G
33404-32010
Sleeve Sub-Assy, Speedometer Shaft (Atm)
[05.1995 - 04.1997] EE111..3FC |
33404-32010 |
— | ||
|
33404H
|
33404H
96711-24018 Ring, O[05.1995 - 04.1997] CE110,EE111..ATM |
96711-24018 |
from US $2.26 |
||
|
33404J
|
33404J
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[05.1995 - 04.1997] AE110,114,CE110,EE111..ATM |
90310-09001 |
from US $2.56 |
||
|
33404K
|
33404K
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[05.1995 - 04.1997] AE11#,CE110,EE111..ATM |
90468-12005 |
US $1.44 |
||
|
33485A
|
33485A
33485-14010 Plate, Speedometer Sleeve Lock (Mtm)[05.1995 - 04.1997] CE110,EE111..ATM |
33485-14010 |
US $2.24 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
