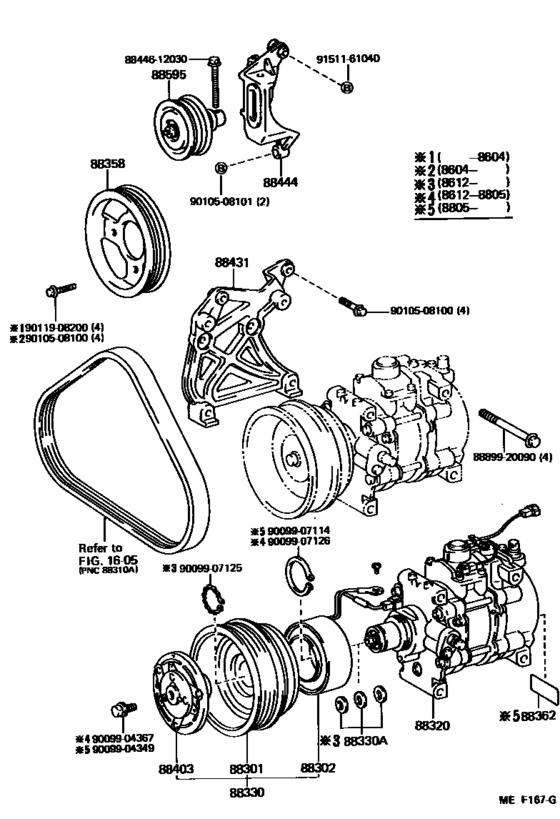

Heating & Air Conditioning - Compressor ([10.1984 - ] (8410- )) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-10010
Rotor Sub-Assy, Magnet Clutch
[10.1984 - 02.1985] EP7# |
88412-10010 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-10060
Rotor Sub-Assy, Magnet Clutch
[10.1984 - 02.1985] EP7# |
88412-10060 |
— | ||
|
88301
|
88301
88412-10030
Rotor Sub-Assy, Magnet Clutch
[02.1985 - 08.1985] EP70 |
88412-10030 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-10070
Rotor Sub-Assy, Magnet Clutch
[02.1985 - 08.1985] EP70 |
88412-10070 |
— | ||
|
88301
|
88301
88412-10031
Rotor Sub-Assy, Magnet Clutch
[08.1985 - 12.1986] EP70 |
88412-10031 |
— | ||
| replacement | |||||
|
88301
|
88301
88412-10070
Rotor Sub-Assy, Magnet Clutch
[08.1985 - 12.1986] EP70 |
88412-10070 |
— | ||
|
88301
|
88301
88412-10070
Rotor Sub-Assy, Magnet Clutch
[12.1986 - 05.1988] EP70 |
88412-10070 |
— | ||
|
88301
|
88301
88412-10120
Rotor Sub-Assy, Magnet Clutch
[05.1988 - 12.1989] EP70 |
88412-10120 |
— | ||
|
88302
|
88302
88411-10010
Stator Sub-Assy, Magnet Clutch
[10.1984 - 12.1986] EP7# |
88411-10010 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-10030
Stator Sub-Assy, Magnet Clutch
[10.1984 - 12.1986] EP7# |
88411-10030 |
— | ||
|
88302
|
88302
88411-10030
Stator Sub-Assy, Magnet Clutch
[12.1986 - 05.1988] EP7# |
88411-10030 |
— | ||
|
88302
|
88302
88411-16021
Stator Sub-Assy, Magnet Clutch
[05.1988 - 12.1989] EP7# |
88411-16021 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-60030
Stator Sub-Assy, Magnet Clutch
[05.1988 - 12.1989] EP7# |
88411-60030 |
— | ||
|
88320
|
88320
88320-10060
Compressor Assy, Cooler
[10.1984 - 12.1986] EP7# |
88320-10060 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-10190
Compressor Assy, Cooler
[10.1984 - 12.1986] EP7# |
88320-10190 |
— | ||
|
88320
|
88320
88320-10090
Compressor Assy, Cooler
[12.1986 - 05.1988] EP7# |
88320-10090 |
— | ||
|
88320
|
88320
88320-10180
Compressor Assy, Cooler
[05.1988 - 12.1989] EP7# |
88320-10180 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-10200
Compressor Assy, Cooler
[05.1988 - 12.1989] EP7# |
88320-10200 |
— | ||
|
88330
|
88330
88410-10020 Clutch Assy, Magnet[10.1984 - 02.1985] EP7# |
88410-10020 |
US $557.65 |
||
| replacement | |||||
|
88330
|
88330
88410-10022 Clutch Assy, Magnet[10.1984 - 02.1985] EP7# |
88410-10022 |
US $560.56 |
||
|
88330
|
88330
88410-10040 Clutch Assy, MagnetMAGNET [02.1985 - 08.1985] EP70 |
88410-10040 |
US $557.65 |
||
| replacement | |||||
|
88330
|
88330
88410-10042 Clutch Assy, MagnetMAGNET [02.1985 - 08.1985] EP70 |
88410-10042 |
US $560.56 |
||
|
88330
|
88330
88410-10041 Clutch Assy, MagnetMAGNET [08.1985 - 12.1986] EP70 |
88410-10041 |
US $560.56 |
||
| replacement | |||||
|
88330
|
88330
88410-10042 Clutch Assy, MagnetMAGNET [08.1985 - 12.1986] EP70 |
88410-10042 |
US $560.56 |
||
|
88330
|
88330
88410-10042 Clutch Assy, MagnetMAGNET [12.1986 - 05.1988] EP70 |
88410-10042 |
US $560.56 |
||
|
88330
|
88330
88410-10110 Clutch Assy, MagnetMAGNET [05.1988 - 12.1989] EP70 |
88410-10110 |
US $563.47 |
||
| replacement | |||||
|
88330
|
88330
88410-10190 Clutch Assy, Magnet[05.1988 - 12.1989] EP70 |
88410-10190 |
US $556.19 |
||
|
88330A
|
88330A
88335-10030
Washer (For Magnet Clutch)
[12.1986 - 05.1988] EP7# |
88335-10030 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[05.1988 - 12.1989] EP7# |
88335-14020 |
from US $1.25 |
||
|
88358
|
88358
88358-10010 Pulley, Crankshaft To Cooler Compressor Drive[10.1984 - 04.1986] EP7# |
88358-10010 |
US $110.66 |
||
|
88358
|
88358
88358-10011 Pulley, Crankshaft, No.2[04.1986 - 12.1989] EP7# |
88358-10011 |
US $109.20 |
||
|
88362
|
88362
88356-12010
Plate, Caution
[05.1988 - 12.1989] EP7# |
88356-12010 |
— | ||
|
88403
|
88403
88403-10010
Hub Sub-Assy, Magnet Clutch
[10.1984 - 05.1988] EP7# |
88403-10010 |
— | ||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[05.1988 - 12.1989] EP7# |
88403-16011 |
US $82.47 |
||
|
88431
|
88431
88431-10040
Bracket, Compressor Mounting, No.1
[10.1984 - 04.1986] EP7# |
88431-10040 |
— | ||
|
88431
|
88431
88431-10041
Bracket, Compressor Mounting, No.1
[04.1986 - 05.1988] EP7# |
88431-10041 |
— | ||
|
88431
|
88431
88431-16060
Bracket, Compressor Mounting, No.1
[05.1988 - 12.1989] EP7# |
88431-16060 |
— | ||
|
88444
|
88444
88444-10020
Bracket, Idle Pulley
[10.1984 - 04.1986] EP70 |
88444-10020 |
— | ||
|
88444
|
88444
88444-10021
Bracket, Idle Pulley
[04.1986 - 12.1989] EP70 |
88444-10021 |
— | ||
|
88595
|
88595
88440-17010 Pulley Assy, Idle[10.1984 - 12.1989] EP7# |
88440-17010 |
US $94.72 |
||
|
8844612030
|
8844612030
88446-12030
Bolt, Idle Pulley
|
88446-12030 |
— | ||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904367
|
9009904367
90099-04367
New Genuine Part
|
90099-04367 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.05 |
||
|
9009907126
|
9009907126
90099-07126
New Genuine Part
|
90099-07126 |
— | ||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010508101
|
9010508101
90105-08101 New Genuine Part |
90105-08101 |
US $1.22 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
