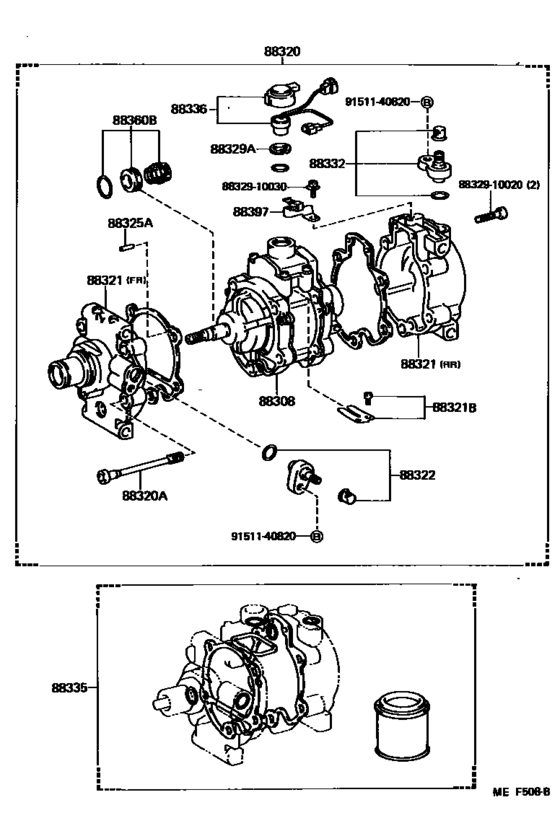

Heating & Air Conditioning - Compressor ([10.1984 - 12.1986] (8410-8612)) Diagram Toyota STARLET
- Year
- 1984 - 1989
- Sales region
- General
- Frame
- EP70
- grade
- XL
- body
- SED
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- From
- 10.1984
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88308
|
88308
88309-10010
Pump Assy, Cooler Compressor
[10.1984 - 12.1986] EP7# |
88309-10010 |
— | ||
|
88308
|
88308
88309-10020
Pump Assy, Cooler Compressor
[12.1986 - 05.1988] EP7# |
88309-10020 |
— | ||
|
88308
|
88308
88309-10030
Pump Assy, Cooler Compressor
[05.1988 - 12.1989] EP7# |
88309-10030 |
— | ||
|
88320
|
88320
88320-10060
Compressor Assy, Cooler
[10.1984 - 12.1986] EP7# |
88320-10060 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-10190
Compressor Assy, Cooler
[10.1984 - 12.1986] EP7# |
88320-10190 |
— | ||
|
88320
|
88320
88320-10090
Compressor Assy, Cooler
[12.1986 - 05.1988] EP7# |
88320-10090 |
— | ||
|
88320
|
88320
88320-10180
Compressor Assy, Cooler
[05.1988 - 12.1989] EP7# |
88320-10180 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-10200
Compressor Assy, Cooler
[05.1988 - 12.1989] EP7# |
88320-10200 |
— | ||
|
88320A
|
88320A
88329-10010
Bolt, Through
[10.1984 - 12.1989] EP7# |
88329-10010 |
— | ||
|
88321
|
88321
88321-10010
Head, Cooler Compressor Cylinder
[10.1984 - 12.1986] EP7# FR |
88321-10010 |
— | ||
|
88321
|
88321
88321-10040
Head, Cooler Compressor Cylinder
[12.1986 - 05.1988] EP7# FR |
88321-10040 |
— | ||
|
88321
|
88321
88321-10060
Head, Cooler Compressor Cylinder
[05.1988 - 12.1989] EP7# FR |
88321-10060 |
— | ||
|
88321
|
88321
88322-10010
Head, Cooler Compressor Cylinder
[10.1984 - 12.1986] EP7# RR |
88322-10010 |
— | ||
|
88321
|
88321
88322-10020
Head, Cooler Compressor Cylinder
[12.1986 - 12.1989] EP7# RR |
88322-10020 |
— | ||
|
88321B
|
88321B
88307-10010
Reed Sub-Assy, Valve
[10.1984 - 12.1989] EP7# |
88307-10010 |
— | ||
|
88322
|
88322
88371-10030
Valve, Cooler Compressor Suction Service
[10.1984 - 12.1986] EP7# |
88371-10030 |
— | ||
| replacement | |||||
|
88322
|
88322
88376-16020
Valve, Suction
[10.1984 - 12.1986] EP7# |
88376-16020 |
— | ||
|
88322
|
88322
88371-16050
Valve, Cooler Compressor Suction Service
[12.1986 - 05.1988] EP7# |
88371-16050 |
— | ||
| replacement | |||||
|
88322
|
88322
88376-16020
Valve, Suction
[12.1986 - 05.1988] EP7# |
88376-16020 |
— | ||
|
88322
|
88322
88376-16020
Valve, Suction
[05.1988 - 12.1989] EP7# |
88376-16020 |
— | ||
|
88325A
|
88325A
88328-10010
Pin, Cylinder Block
[10.1984 - 12.1989] EP7# |
88328-10010 |
— | ||
|
88329A
|
88329A
90096-90029
Ring, Compressor Piston Snap
[10.1984 - 12.1986] EP7# |
90096-90029 |
— | ||
|
88332
|
88332
88372-10040
Valve, Cooler Compressor Discharge Service
[10.1984 - 12.1986] EP7# |
88372-10040 |
— | ||
|
88332
|
88332
88372-16030
Valve, Cooler Compressor Discharge Service
[12.1986 - 03.1987] EP7# |
88372-16030 |
— | ||
| replacement | |||||
|
88332
|
88332
88376-16030
Valve, Discharge
[12.1986 - 03.1987] EP7# |
88376-16030 |
— | ||
|
88332
|
88332
88372-16040
Valve, Cooler Compressor Discharge Service
[03.1987 - 05.1988] EP7# |
88372-16040 |
— | ||
|
88332
|
88332
88376-16030
Valve, Discharge
[05.1988 - 12.1989] EP7# |
88376-16030 |
— | ||
|
88335
|
88335
88335-10010
Gasket Kit, Overhaul
[10.1984 - 12.1986] EP7# |
88335-10010 |
— | ||
|
88335
|
88335
88335-10020
Gasket Kit, Overhaul
[12.1986 - 12.1989] EP7# |
88335-10020 |
— | ||
|
88336
|
88336
88336-10010
Sensor, Compressor
[10.1984 - 12.1986] EP7# |
88336-10010 |
— | ||
|
88336
|
88336
88336-10020
Sensor, Compressor
[12.1986 - 12.1989] EP7# |
88336-10020 |
— | ||
|
88360B
|
88360B
88360-10010
Seal Assy, Cooler Compressor Shaft
[10.1984 - 12.1986] EP7# |
88360-10010 |
— | ||
|
88360B
|
88360B
88360-10020
Seal Assy, Shaft
[12.1986 - 12.1989] EP7# |
88360-10020 |
— | ||
|
88397
|
88397
88397-10010
Clip, Sensor
[10.1984 - 12.1986] EP7# |
88397-10010 |
— | ||
|
88397
|
88397
88397-10020
Clip, Sensor
[12.1986 - 12.1989] EP7# |
88397-10020 |
— | ||
|
8832910020
|
8832910020
88329-10020
Bolt, Through
|
88329-10020 |
— | ||
|
8832910030
|
8832910030
88329-10030
Piston Sub-assy, Cooler Compressor
|
88329-10030 |
— | ||
|
9151140820
|
9151140820
91511-40820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-40820 |
US $2.04 |
||
| replacement | |||||
|
9151140820
|
9151140820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.05 |
||
