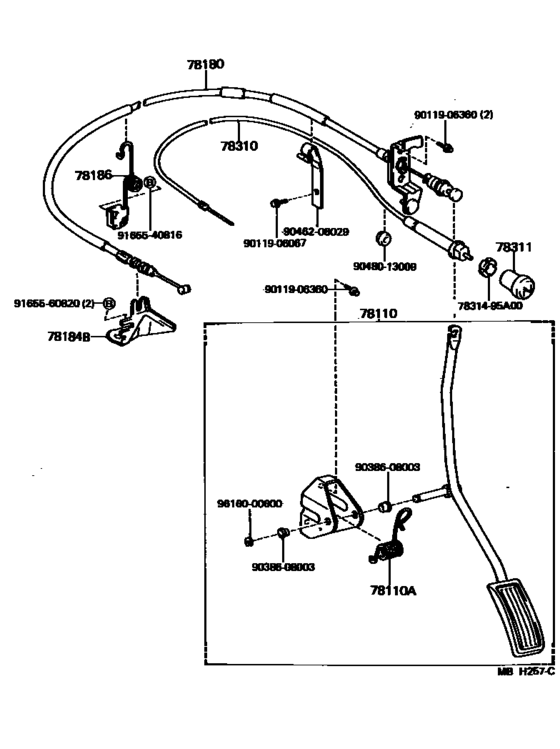

Accelerator Link ([10.1984 - ] (8410- )EP7#..RHD) Diagram Toyota STARLET
- Year
- 1985 - 1989
- Sales region
- Europe
- Frame
- EP70
- grade
- XL
- ENGINE
- 1EL
- TRANSMISSION
- MTM
- DESTINATION
- EUG
- From
- 08.1985
- To
- 12.1989
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-10010 Rod Assy, Accelerator Pedal[10.1984 - 12.1986] EP7#..RHD |
78120-10010 |
US $27.66 |
||
|
78110
|
78110
78120-10030 Rod Assy, Accelerator Pedal[12.1986 - 12.1989] EP7#,NP70..RHD |
78120-10030 |
US $41.35 |
||
|
78110A
|
78110A
90508-18057 Spring (For Accelerator Pedal Rod)[10.1984 - 12.1986] EP7#..RHD |
90508-18057 |
US $3.35 |
||
|
78110A
|
78110A
90508-21004 Spring (For Accelerator Pedal Rod)[12.1986 - 12.1989] EP7#,NP70..RHD |
90508-21004 |
US $3.35 |
||
|
78180
|
78180
78180-10260 Wire Assy, AcceleratorACCELERATOR [10.1984 - 12.1989] EP70..RHD |
78180-10260 |
US $48.63 |
||
|
78186
|
78186
78186-10050 Support, Accelerator Control Cable, No.1[10.1984 - 12.1989] EP70..RHD |
78186-10050 |
US $6.84 |
||
|
78310
|
78310
84506-10020 Cable Assy, ChokeCHOKE [10.1984 - 12.1985] EP70..RHD |
84506-10020 |
US $40.04 |
||
| replacement | |||||
|
78310
|
78310
84506-10021 Cable Assy, ChokeCHOKE [10.1984 - 12.1985] EP70..RHD |
84506-10021 |
US $40.33 |
||
|
78310
|
78310
84506-10021 Cable Assy, ChokeCHOKE [12.1985 - 12.1989] EP70..RHD |
84506-10021 |
US $40.33 |
||
|
78311
|
78311
78311-10040 Knob, Choke Control CableCHOKE CONTROL CABLE [10.1984 - 01.1986] EP70 |
78311-10040 |
US $11.21 |
||
| replacement | |||||
|
78311
|
78311
78311-10041
Knob, Choke Control Cable
[10.1984 - 01.1986] EP70 |
78311-10041 |
— | ||
|
78311
|
78311
78311-10041
Knob, Choke Control Cable
[01.1986 - 12.1989] EP70 |
78311-10041 |
— | ||
|
7831495A00
|
7831495A00
78314-95A00 Nut, Choke Shaft Set |
78314-95A00 |
US $4.95 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9011906360
|
9011906360
90119-06360
New Genuine Part
|
90119-06360 |
— | ||
|
9038608003
|
9038608003
90386-08003
Bush, Accelerator Bellcrank
|
90386-08003 |
— | ||
|
9046208029
|
9046208029
90462-08029 New Genuine Part |
90462-08029 |
US $4.95 |
||
|
9048013009
|
9048013009
90480-13009
Grommet, Choke Cable
|
90480-13009 |
— | ||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
