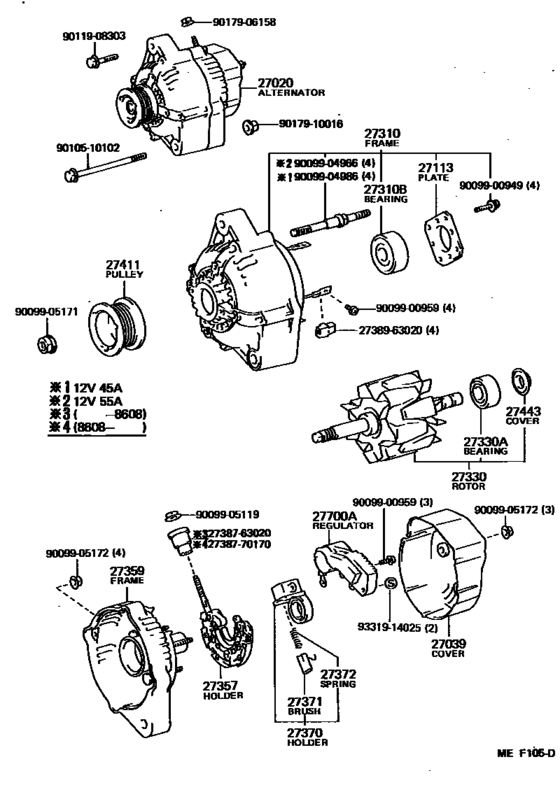

Alternator ([10.1984 - ] 12V 45A OR 55A (8410- )2E#) Diagram Toyota STARLET
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- TBS
- body
- SED
- ENGINE
- 2ETELU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 12.1989
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-10060 Alternator Assy[01.1986 - 08.1986] 2ETELU..EP71..4FC １２Ｖ ５５Ａ |
27060-10060 |
US $1,287.10 |
||
|
27020
|
27020
27060-10061 Alternator Assy[08.1986 - 12.1986] 2ETELU..EP71..4FC １２Ｖ ６０Ａ |
27060-10061 |
US $1,275.46 |
||
|
27020
|
27020
27060-11040 Alternator Assy[04.1988 - 12.1989] 2ETELU..EP71..4FC １２Ｖ ５５Ａ |
27060-11040 |
US $1,447.26 |
||
| replacement | |||||
|
27020
|
27020
27060-11041 Alternator Assy[04.1988 - 12.1989] 2ETELU..EP71..4FC １２Ｖ ５５Ａ |
27060-11041 |
US $1,434.16 |
||
|
27020
|
27020
27060-11041 Alternator Assy[12.1989 - 12.1989] 2ETELU..EP71..4FC １２Ｖ ５５Ａ |
27060-11041 |
US $1,434.16 |
||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27039-15171 |
— | ||
|
27113
|
27113
27312-70200
Plate, Bearing Retainer, Alternator
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27312-70200 |
— | ||
|
27113
|
27113
27312-72100 Plate, Bearing Retainer, Alternator[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A,60A |
27312-72100 |
US $3.90 |
||
|
27310
|
27310
27310-10021
Frame Assy, Drive End, Alternator
[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27310-10021 |
— | ||
| replacement | |||||
|
27310
|
27310
27310-10070
Frame Assy, Drive End, Alternator
[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27310-10070 |
— | ||
|
27310
|
27310
27310-16181
Frame Assy, Drive End, Alternator
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27310-16181 |
— | ||
|
27310B
|
27310B
90099-10159
Bearing(For Alternator Drive End Frame)
[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A,60A |
90099-10159 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10199 Bearing(For Alternator Drive End Frame)[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A,60A |
90099-10199 |
from US $19.39 |
||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
90099-10178 |
from US $17.65 |
||
|
27330
|
27330
27330-10020
Rotor Assy, Alternator
[10.1984 - 09.1987] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27330-10020 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-10021
Rotor Assy, Alternator
[10.1984 - 09.1987] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27330-10021 |
— | ||
|
27330
|
27330
27330-10021
Rotor Assy, Alternator
[09.1987 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27330-10021 |
— | ||
|
27330
|
27330
27330-72101
Rotor Assy, Alternator
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27330-72101 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[10.1984 - 12.1989] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A,60A |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63040
Holder, Alternator, W/rectifier
[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27357-63040 |
— | ||
|
27357
|
27357
27357-63060
Holder, Alternator, W/rectifier
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27357-63060 |
— | ||
|
27359
|
27359
27359-16081
Frame, Alternator Rectifier End
[10.1984 - 04.1988] 2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7# 12V 55A |
27359-16081 |
— | ||
|
27359
|
27359
27359-16180
Frame, Alternator Rectifier End
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27359-16180 |
— | ||
| replacements | |||||
|
27359
|
27359
27359-16181
Frame, Alternator Rectifier End
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27359-16181 |
— | ||
|
27359
|
27359
27384-16380
Washer
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27384-16380 |
— | ||
|
27370
|
27370
27370-16011
Holder Assy, Alternator Brush
[10.1984 - 12.1989] 2E#..EP7# 12V 45A,55A |
27370-16011 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[10.1984 - 12.1989] 2E#..EP7# 12V 45A,55A |
27370-58320 |
from US $19.81 |
||
|
27371
|
27371
27371-63020
Brush, Alternator
[10.1984 - 12.1989] 2E#,1N..EP7#,NP7# 12V 45A,55A,60A |
27371-63020 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[10.1984 - 12.1989] 2E#,1N..EP7#,NP7# 12V 45A,55A,60A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-72100
Spring, Alternator Brush
[01.1985 - 12.1989] 2E#,1N..EP7#,NP7# 12V 45A,55A,60A |
27372-72100 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[01.1985 - 12.1989] 2E#,1N..EP7#,NP7# 12V 45A,55A,60A |
27372-87501 |
— | ||
|
27411
|
27411
27411-10070
Pulley, Alternator
[01.1986 - 12.1986] 2ETELU..EP71..4FC 12V 55A |
27411-10070 |
— | ||
|
27411
|
27411
27411-65010
Pulley, Alternator
[04.1988 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27411-65010 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[10.1984 - 12.1989] 2E#,1N..EP7#,NP7# 12V 45A,55A,60A |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-10061 Regulator Assy, Generator[04.1988 - 04.1988] 2ETELU..EP71..4FC 12V 55A |
27700-10061 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-66020 Regulator Assy, Generator[04.1988 - 04.1988] 2ETELU..EP71..4FC 12V 55A |
27700-66020 |
US $263.54 |
||
|
27700A
|
27700A
27700-63021 Regulator Assy, Generator[10.1984 - 02.1986] 2E#..EP7# 12V 45A,55A |
27700-63021 |
US $285.38 |
||
| replacement | |||||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[10.1984 - 02.1986] 2E#..EP7# 12V 45A,55A |
27700-70030 |
US $263.54 |
||
|
27700A
|
27700A
27700-70030 Regulator Assy, Generator[12.1989 - 12.1989] 2ETELU..EP71..4FC 12V 55A |
27700-70030 |
US $263.54 |
||
|
2738763020
|
2738763020
27387-63020
Insulator, Terminal
|
27387-63020 |
— | ||
|
2738770170
|
2738770170
27387-70170
Insulator, Terminal
|
27387-70170 |
— | ||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
9009900949
|
9009900949
90099-00949
New Genuine Part
|
90099-00949 |
— | ||
|
9009900959
|
9009900959
90099-00959
New Genuine Part
|
90099-00959 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009904986
|
9009904986
90099-04986
New Genuine Part
|
90099-04986 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010510102
|
9010510102
90105-10102 BOLT |
90105-10102 |
US $4.02 |
||
|
9011908303
|
9011908303
90119-08303 New Genuine Part |
90119-08303 |
US $2.24 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
