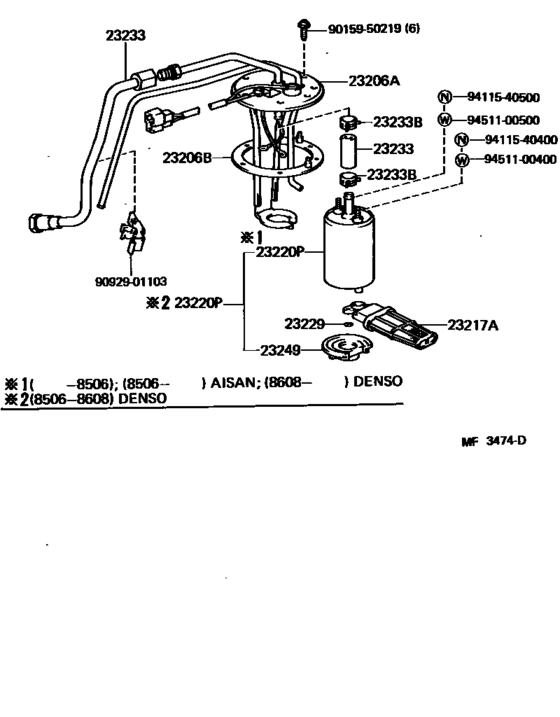

Fuel Injection System ([10.1984 - ] (8410- )2EELU,2ETELU) Diagram Toyota STARLET
- Year
- 1986 - 1989
- Sales region
- Japan
- Frame
- EP71
- grade
- TBS
- body
- SED
- ENGINE
- 2ETELU
- TRANSMISSION
- ATM
- From
- 01.1986
- To
- 12.1989
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23206A
|
23206A
23206-11010
Bracket, Fuel Pump
[09.1986 - 12.1989] 2EELU,2ETELU..EP71 |
23206-11010 |
— | ||
|
23206A
|
23206A
23206-11020
Bracket, Fuel Pump
[10.1984 - 09.1986] 2EELU,2ETELU..EP71 |
23206-11020 |
— | ||
| replacement | |||||
|
23206A
|
23206A
23206-11010
Bracket, Fuel Pump
[10.1984 - 09.1986] 2EELU,2ETELU..EP71 |
23206-11010 |
— | ||
|
23206B
|
23206B
77169-32010 Gasket, Fuel Pump Bracket[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
77169-32010 |
from US $6.40 |
||
|
23217A
|
23217A
23217-16043 Filter, Fuel Pump[09.1985 - 12.1989] 2EELU,2ETELU..EP71 AISAN |
23217-16043 |
US $8 |
||
|
23220P
|
23220P
23220-16082 Pump Assy, Fuel[09.1985 - 02.1986] 2EELU,2ETELU..EP71 AISAN |
23220-16082 |
US $515.42 |
||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [09.1985 - 02.1986] 2EELU,2ETELU..EP71 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-16083 Pump Assy, Fuel[02.1986 - 08.1986] 2EELU,2ETELU..EP71 AISAN |
23220-16083 |
US $567.84 |
||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [02.1986 - 08.1986] 2EELU,2ETELU..EP71 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-16084
Pump Assy, Fuel
[08.1986 - 12.1989] 2EELU,2ETELU..EP71 AISAN |
23220-16084 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [08.1986 - 12.1989] 2EELU,2ETELU..EP71 AISAN |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-16190 Pump Assy, Fuel[08.1986 - 12.1989] 2EELU,2ETELU..EP71 DENSO |
23220-16190 |
from US $430.77 |
||
|
23220P
|
23220P
23220-19015
Pump Assy, Fuel
[06.1985 - 08.1986] 2EELU,2ETELU..EP71 DENSO |
23220-19015 |
— | ||
| replacements | |||||
|
23220P
|
23220P
23220-16190 Pump Assy, Fuel[06.1985 - 08.1986] 2EELU,2ETELU..EP71 DENSO |
23220-16190 |
from US $430.77 |
||
|
23220P
|
23220P
23249-43080 Rubber, Cushion(For Fuel Pump)[06.1985 - 08.1986] 2EELU,2ETELU..EP71 DENSO |
23249-43080 |
from US $23.41 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23091-11010 Hose, Fuel Pump[10.1984 - 12.1989] 2EELU,2ETELU..EP71 BRACKET TO FUEL PIPE |
23091-11010 |
US $107.74 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[10.1984 - 12.1989] 2EELU,2ETELU..EP71 PUMP TO BRACKET |
23239-16010 |
from US $1.81 |
||
|
23233B
|
23233B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
90467-13001 |
— | ||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[10.1984 - 12.1989] 2EELU,2ETELU..EP71 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-43080 Rubber, Cushion(For Fuel Pump)[09.1985 - 12.1989] 2EELU,2ETELU..EP71 DENSO |
23249-43080 |
from US $23.41 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.64 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9092901103
|
9092901103
90929-01103 New Genuine Part |
90929-01103 |
US $4.22 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
