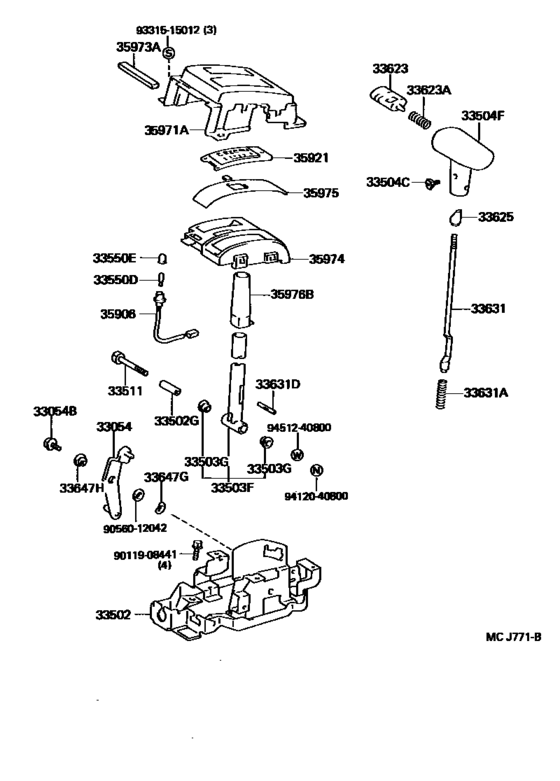

Shift Lever & Retainer ([12.1989 - ] (8912- )3FC) Diagram Toyota STARLET
- Year
- 1991 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- XLI
- ENGINE
- 2EE
- TRANSMISSION
- ATM
- From
- 06.1991
- To
- 01.1996
- Gear Shift Type
- 3FC
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33054
|
33054
33054-10040 Lever Sub-Assy, Shift, No.2(For Floor Shift)SHIFT, NO.2(FOR FLOOR SHIFT) [12.1989 - 01.1996] EP81..3FC |
33054-10040 |
US $30.43 |
||
|
33054B
|
33054B
90119-08606 Bolt(For Shift Lever No.2)[12.1989 - 01.1996] EP81..3FC |
90119-08606 |
US $1.89 |
||
|
33502
|
33502
33502-10130 Plate Sub-Assy, Shift LeverSHIFT LEVER [12.1989 - 01.1996] EP81..3FC |
33502-10130 |
US $154.34 |
||
|
33502G
|
33502G
90387-08114
Collar (For Shift Lever Plate)
[12.1989 - 01.1996] EP81..3FC |
90387-08114 |
— | ||
|
33503F
|
33503F
33503-10180 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [12.1989 - 01.1996] EP81..3FC |
33503-10180 |
US $32.47 |
||
|
33503G
|
33503G
90386-11012 Bush(For Shift Lever)[12.1989 - 01.1996] EP81..3FC |
90386-11012 |
US $2.62 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[12.1989 - 01.1996] EP81..3FC |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-12150-14 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.1989 - 01.1992] EP81..3FC BLUE,TRIM8# |
33542-12150-14 |
US $41.06 |
||
| replacement | |||||
|
33504F
|
33504F
33542-12150-B1 Knob Sub-Assy, Shift LeverSHIFT LEVER [12.1989 - 01.1992] EP81..3FC BLUE,TRIM8# |
33542-12150-B1 |
US $41.06 |
||
|
33504F
|
33504F
33542-12150-B1 Knob Sub-Assy, Shift LeverSHIFT LEVER [01.1992 - 01.1996] EP81..3FC SHADOW GRAY,TRIM1# |
33542-12150-B1 |
US $41.06 |
||
|
33504F
|
33504F
33542-12150-E3 Knob Sub-Assy, Shift LeverSHIFT LEVER [01.1992 - 12.1992] EP81..3FC OAK,TRIM4# |
33542-12150-E3 |
US $41.06 |
||
| replacement | |||||
|
33504F
|
33504F
33542-12150-B1 Knob Sub-Assy, Shift LeverSHIFT LEVER [01.1992 - 12.1992] EP81..3FC OAK,TRIM4# |
33542-12150-B1 |
US $41.06 |
||
|
33511
|
33511
33511-12070 Shaft, Control (For Floor Shift)[12.1989 - 01.1996] EP81..3FC |
33511-12070 |
US $9.90 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[12.1989 - 01.1996] EP81..3FC 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
33550E
|
33550E
90339-04014 Cap, Position Indicator Lamp[12.1989 - 01.1996] EP81..3FC |
90339-04014 |
US $1.60 |
||
|
33623
|
33623
33623-10010-03 Button, Shift Lever Knob[12.1989 - 01.1996] EP81..3FC GRAY,TRIM1# |
33623-10010-03 |
US $21.84 |
||
|
33623
|
33623
33623-10010-04 Button, Shift Lever Knob[12.1989 - 01.1992] EP81..3FC BLUE,TRIM8# |
33623-10010-04 |
US $21.69 |
||
|
33623
|
33623
33623-10010-E0 Button, Shift Lever Knob[01.1992 - 12.1992] EP81..3FC OAK,TRIM4# |
33623-10010-E0 |
US $21.84 |
||
| replacement | |||||
|
33623
|
33623
33623-10010-03 Button, Shift Lever Knob[01.1992 - 12.1992] EP81..3FC OAK,TRIM4# |
33623-10010-03 |
US $21.84 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[12.1989 - 01.1996] EP81..3FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-22020 Sleeve, Shift Lever Knob[12.1989 - 01.1996] EP81..3FC |
33625-22020 |
US $12.48 |
||
|
33631
|
33631
33631-12100 Rod, Detent[12.1989 - 01.1996] EP81..3FC |
33631-12100 |
US $17.76 |
||
|
33631A
|
33631A
90501-08129 Spring, Compression (For Detent Rod)[12.1989 - 01.1996] EP81..3FC |
90501-08129 |
US $2.18 |
||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[12.1989 - 01.1996] EP81..3FC |
90256-04003 |
US $2.97 |
||
|
33647G
|
33647G
90206-12002 Washer, Wave (For Control Link Shaft)[12.1989 - 01.1996] EP81..3FC |
90206-12002 |
US $1.75 |
||
|
33647H
|
33647H
90386-12029 Bush(For Shift Lever No.2)[12.1989 - 01.1996] EP81..3FC |
90386-12029 |
US $1.46 |
||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[01.1991 - 01.1996] EP81..3FC |
35906-17020 |
US $13.69 |
||
|
35921
|
35921
35921-10120 Plate, Control Position IndicatorCONTROL POSITION INDICATOR [12.1989 - 01.1996] EP81..3FC |
35921-10120 |
US $62.32 |
||
|
35971A
|
35971A
35971-10110 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [12.1989 - 01.1992] EP81..3FC |
35971-10110 |
US $42.22 |
||
|
35971A
|
35971A
35971-10110-03 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [01.1992 - 01.1996] EP81..3FC GRAY,TRIM1# |
35971-10110-03 |
US $42.22 |
||
| replacement | |||||
|
35971A
|
35971A
35971-10110 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [01.1992 - 01.1996] EP81..3FC GRAY,TRIM1# |
35971-10110 |
US $42.22 |
||
|
35971A
|
35971A
35971-10110-E0 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [01.1992 - 12.1992] EP81..3FC OAK,TRIM4# |
35971-10110-E0 |
US $42.22 |
||
| replacement | |||||
|
35971A
|
35971A
35971-10110 Housing, Position Indicator, UpperPOSITION INDICATOR, UPPER [01.1992 - 12.1992] EP81..3FC OAK,TRIM4# |
35971-10110 |
US $42.22 |
||
|
35973A
|
35973A
35973-10010 Attachment, Position Indicator Housing Cover[03.1990 - 01.1996] EP81..3FC |
35973-10010 |
US $1.89 |
||
|
35974
|
35974
35974-10090 Housing, Position Indicator, LowerPOSITION INDICATOR, LOWER [12.1989 - 01.1996] EP81..3FC |
35974-10090 |
US $27.23 |
||
|
35975
|
35975
35975-10050 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [12.1989 - 01.1996] EP81..3FC |
35975-10050 |
US $40.77 |
||
|
35976B
|
35976B
35976-10020 Cover, Shift Lever Knob (For Floor Shift)[12.1989 - 01.1996] EP81..3FC |
35976-10020 |
US $23.88 |
||
|
9011908441
|
9011908441
90119-08441 New Genuine Part |
90119-08441 |
US $1.79 |
||
|
9056012042
|
9056012042
90560-12042
New Genuine Part
|
90560-12042 |
— | ||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451240800
|
9451240800
94512-40800
New Genuine Part
|
94512-40800 |
— | ||
