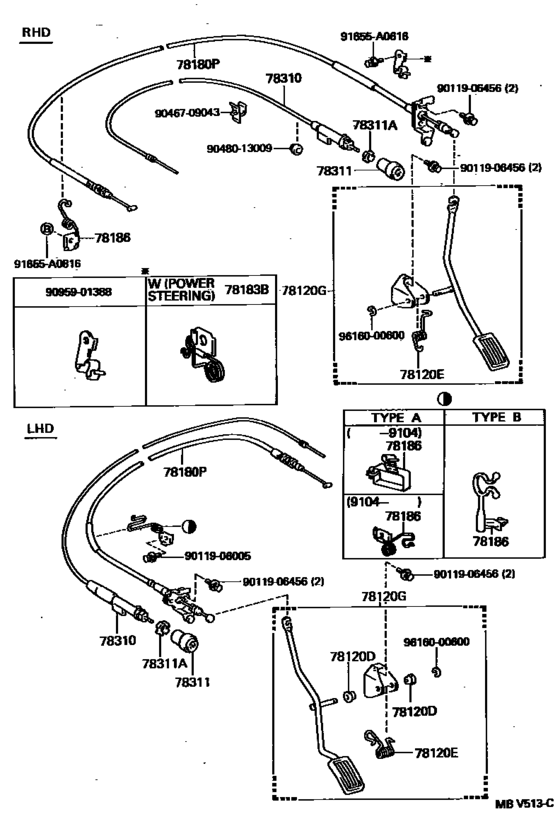

Accelerator Link ([12.1989 - ] (8912- )) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78120D
|
78120D
90386-08003
Bush, Accelerator Bellcrank
[12.1989 - 01.1996] EP8#,NP80..LHD |
90386-08003 |
— | ||
|
78120E
|
78120E
90508-20111 Spring, Tension (For Accelerator Link Rod)TENSION (FOR ACCELERATOR LINK ROD) [12.1989 - 01.1996] EP8#,NP80..LHD |
90508-20111 |
US $2.48 |
||
|
78120G
|
78120G
78120-10070 Rod Assy, Accelerator PedalACCELERATOR PEDAL [12.1989 - 01.1996] EP8#,NP80..LHD |
78120-10070 |
US $49.21 |
||
|
78180P
|
78180P
78180-10450
Cable Assy, Accelerator Control
[12.1989 - 01.1996] EP81..LHD..EFI |
78180-10450 |
— | ||
|
78186
|
78186
78186-10080 Support, Accelerator Control Cable, No.2ACCELERATOR CONTROL CABLE, NO.2 [06.1991 - 01.1996] EP81..LHD..EFI |
78186-10080 |
US $5.82 |
||
|
91655A0616
|
91655A0616
91655-A0616
New Genuine Part
|
91655-A0616 |
— | ||
| replacement | |||||
|
91655A0616
|
91655A0616
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
91655A0816
|
91655A0816
91655-A0816
New Genuine Part
|
91655-A0816 |
— | ||
| replacement | |||||
|
91655A0816
|
91655A0816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906456
|
9011906456
90119-06456 New Genuine Part |
90119-06456 |
US $0.42 |
||
| replacement | |||||
|
9011906456
|
9011906456
91653-A0620 New Genuine Part |
91653-A0620 |
US $0.96 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.56 |
||
|
9048013009
|
9048013009
90480-13009
Grommet, Choke Cable
|
90480-13009 |
— | ||
|
9095901388
|
9095901388
90959-01388 New Genuine Part |
90959-01388 |
US $4.66 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
