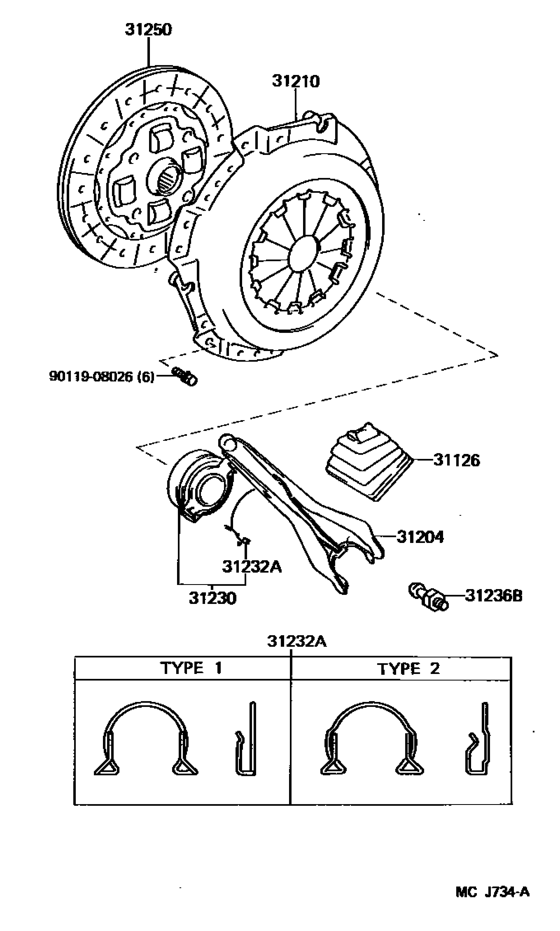

Clutch & Release Fork ([12.1989 - ] (8912- )MTM) Diagram Toyota STARLET
- Year
- 1989 - 1996
- Sales region
- Europe
- Frame
- EP81
- grade
- SI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- From
- 12.1989
- To
- 01.1996
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[12.1989 - 06.1991] EP8#,NP80..MTM |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-12050 Fork Sub-Assy, Clutch Release[12.1989 - 06.1991] EP8#,NP80..MTM |
31204-12050 |
from US $39.98 |
||
|
31210
|
31210
31210-10080 Cover Assy, ClutchCLUTCH [12.1989 - 07.1990] EP81..MTM;EP80..RHD;EP80..LHD..5D;EP80..3D..STD;EP80..3D..5F..XL |
31210-10080 |
US $136.86 |
||
| replacement | |||||
|
31210
|
31210
31210-10081
Cover Assy, Clutch
[12.1989 - 07.1990] EP81..MTM;EP80..RHD;EP80..LHD..5D;EP80..3D..STD;EP80..3D..5F..XL |
31210-10081 |
— | ||
|
31230
|
31230
31230-12140
Bearing Assy, Clutch Release
[12.1989 - 06.1991] EP8#,NP80..MTM; EP80..LHD..5F ANNEX 24C |
31230-12140 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-16061 Bearing Assy, Clutch Release[12.1989 - 06.1991] EP8#,NP80..MTM; EP80..LHD..5F ANNEX 24C |
31230-16061 |
from US $56.92 |
||
|
31232A
|
31232A
31232-12040
Clip, Release Bearing Hub
[12.1989 - 06.1991] EP8#,NP80..MTM TYPE 1 |
31232-12040 |
— | ||
|
31232A
|
31232A
31232-16031
Clip, Release Bearing Hub
[12.1989 - 06.1991] EP8#,NP80..MTM TYPE 2 |
31232-16031 |
— | ||
|
31236B
|
31236B
31236-12011 Ball, Release Fork[12.1989 - 06.1991] EP8#,NP80..MTM |
31236-12011 |
from US $11.36 |
||
|
31250
|
31250
31250-10062 Disc Assy, Clutch[12.1989 - 06.1990] EP8#..MTM |
31250-10062 |
US $117.94 |
||
| replacement | |||||
|
31250
|
31250
31250-10066 Disc Assy, Clutch[12.1989 - 06.1990] EP8#..MTM |
31250-10066 |
US $79.67 |
||
|
31250
|
31250
31250-10063 Disc Assy, ClutchCLUTCH [06.1990 - 04.1991] EP8#..MTM |
31250-10063 |
US $117.94 |
||
| replacement | |||||
|
31250
|
31250
31250-10066 Disc Assy, Clutch[06.1990 - 04.1991] EP8#..MTM |
31250-10066 |
US $79.67 |
||
|
31250
|
31250
31250-10064
Disc Assy, Clutch
[04.1991 - 06.1991] EP8#..MTM |
31250-10064 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-10066 Disc Assy, Clutch[04.1991 - 06.1991] EP8#..MTM |
31250-10066 |
US $79.67 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
