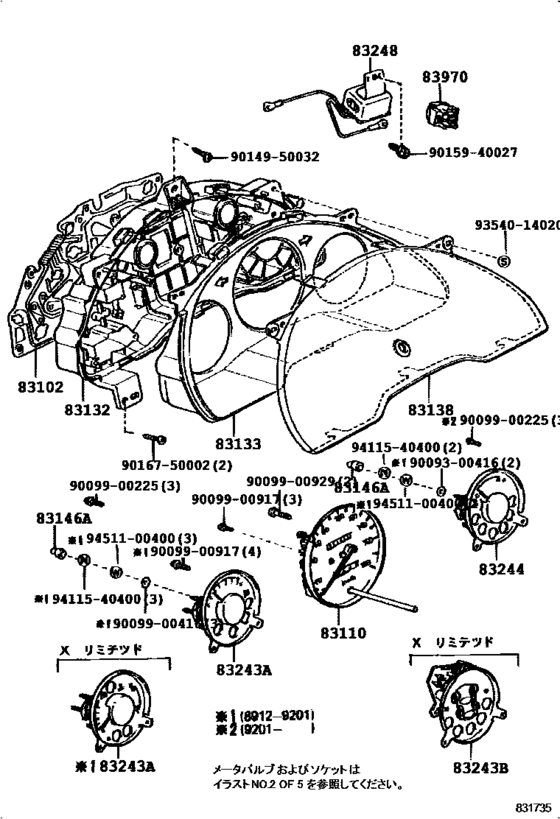

Meter ([12.1989 - 01.1996] ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ (8912-9201)X ; (8912-9601)EP82,NP80..SOL,SOLL ; (9008-9601)EP85..SOLL) Diagram Toyota STARLET
- Year
- 1989 - 1992
- Sales region
- Japan
- Frame
- EP82
- grade
- SOLL
- ENGINE
- 4EF
- TRANSMISSION
- ATM
- From
- 12.1989
- To
- 01.1992
- Gear Shift Type
- 3FC
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83102
|
83102
83149-10250
Plate Sub-Assy, Combination Meter Circuit, No.1
[12.1989 - 01.1992] EP82..SOL,SOLL |
83149-10250 |
— | ||
| replacement | |||||
|
83102
|
83102
83149-10270
Plate Sub-Assy, Combination Meter Circuit, No.1
[12.1989 - 01.1992] EP82..SOL,SOLL |
83149-10270 |
— | ||
|
83102
|
83102
83149-10270
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1990 - 01.1992] EP82..SOL,SOLL ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
83149-10270 |
— | ||
|
83110
|
83110
83110-10550 Speedometer Assy[12.1989 - 01.1992] EP8#,NP80..SOL,SOLL |
83110-10550 |
US $366.91 |
||
|
83110
|
83110
83110-10850 Speedometer Assy[09.1990 - 01.1992] EP82..SOL,SOLL ｱﾘ(*66) |
83110-10850 |
US $366.91 |
||
|
83132
|
83132
83132-1C130
Case, Combination Meter
[12.1989 - 01.1992] EP82..SOL,SOLL |
83132-1C130 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-1C150
Case, Combination Meter
[12.1989 - 01.1992] EP82..SOL,SOLL |
83132-1C150 |
— | ||
|
83132
|
83132
83132-1C150
Case, Combination Meter
[09.1990 - 01.1992] EP82..SOL,SOLL ｱﾘ(ｱﾝﾁ ﾛﾂｸ ﾌﾞﾚ-ｷ ｼｽﾃﾑ) |
83132-1C150 |
— | ||
|
83133
|
83133
83133-10830
Plate, Combination Meter, No.1
[12.1989 - 01.1992] EP8#,NP80..SOL,SOLL,X |
83133-10830 |
— | ||
|
83138
|
83138
83138-10450
Glass, Speedometer
[12.1989 - 01.1996] EP82..SOL..EFI;EP8#,NP80..(SOL,SOLL)..(CBR,DSL) |
83138-10450 |
— | ||
|
83138
|
83138
83138-10470
Glass, Speedometer
[09.1990 - 01.1992] EP82..SOL,SOLL ｱﾘ(*66) |
83138-10470 |
— | ||
|
83146A
|
83146A
83146-30830
Cover, Speedmeter
[12.1989 - 01.1992] EP82..SOL,SOLL,X |
83146-30830 |
— | ||
|
83243A
|
83243A
83243-10490 Gauge Sub-Assy, Fuel Receiver[12.1989 - 01.1992] EP82..SOL,SOLL |
83243-10490 |
US $39.02 |
||
|
83243A
|
83243A
83243-10510 Gauge Sub-Assy, Fuel Receiver[09.1990 - 01.1992] EP82..SOL,SOLL ｱﾘ(*66) |
83243-10510 |
US $39.02 |
||
|
83244
|
83244
83244-10270 Gauge Sub-Assy, Water Temperature Receiver[12.1989 - 01.1992] EP82..SOL,SOLL,X |
83244-10270 |
US $39.02 |
||
|
83248
|
83248
86640-10060 Chime, Speed Warning[12.1989 - 01.1996] EP8#,NP80..SOL,SOLL,X |
86640-10060 |
US $34.36 |
||
|
83970
|
83970
83970-10010 Buzzer Assy, Reverse Warning[12.1989 - 01.1992] EP82,NP80;EP85..4FC |
83970-10010 |
US $41.64 |
||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900225
|
9009900225
90099-00225
New Genuine Part
|
90099-00225 |
— | ||
|
9009900416
|
9009900416
90099-00416
New Genuine Part
|
90099-00416 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
US $1.28 |
||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
