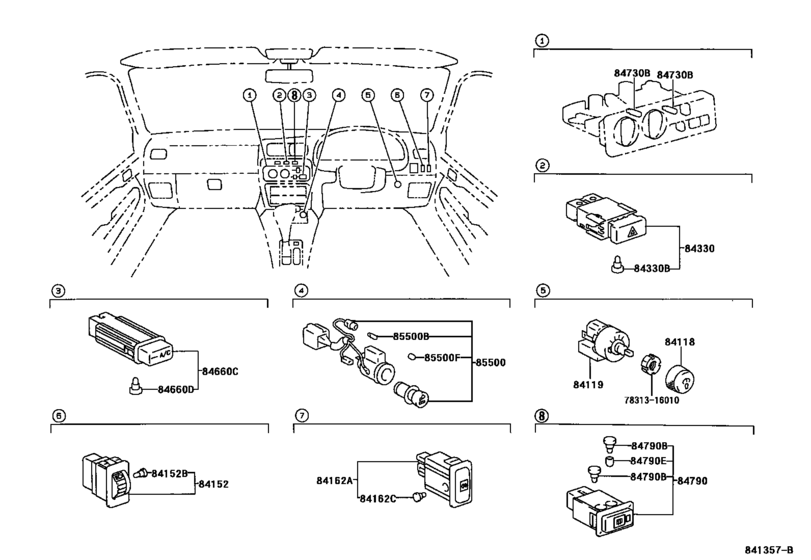

Switch & Relay & Computer ([01.1996 - ] INSTRUMENT PANEL SWITCH (9601- )RHD) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Europe
- Frame
- EP91
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 3FC
- No.of Doors
- 3D
- Vehicle Model
- STARLET
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84118
|
84118
84118-20011-22
Knob, Light Control Rheostat
[01.1996 - 07.1999] EP91 BLACK,TRIM1# |
84118-20011-22 |
— | ||
| replacement | |||||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[01.1996 - 07.1999] EP91 BLACK,TRIM1# |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-16050
Rheostat, Light Control
[01.1996 -] EP91..RHD |
84119-16050 |
— | ||
|
84152
|
84152
84152-26010 Switch, Headlamp LevelingHEADLAMP LEVELING [01.1996 -] EP91 |
84152-26010 |
US $69.01 |
||
| replacement | |||||
|
84152
|
84152
84152-14010 Switch, Headlamp LevelingHEADLAMP LEVELING [01.1996 -] EP91 |
84152-14010 |
US $69.01 |
||
|
84152B
|
84152B
84999-10650
Bulb (For Rear Fog Lamp Switch)
[12.1997 -] EP91 |
84999-10650 |
— | ||
|
84162A
|
84162A
84165-16010 Switch, Rear Fog Lamp[01.1996 -] EP91 |
84165-16010 |
US $52.24 |
||
|
84162C
|
84162C
84999-20120 Bulb (For Rear Fog Lamp Switch)[01.1996 -] EP91 14V 0.7W |
84999-20120 |
US $4.19 |
||
|
84330
|
84330
84332-20350 Switch Assy, Hazard Warning Signal[01.1996 - 07.1999] EP91..RHD |
84332-20350 |
US $57.37 |
||
|
84330B
|
84330B
84999-10860 Bulb, Hazard Warning Signal Switch[01.1996 - 07.1999] EP91..RHD 14V 0.91W |
84999-10860 |
from US $4.32 |
||
|
84660C
|
84660C
84660-10110 Switch, Cooler[01.1996 -] EP91..RHD |
84660-10110 |
US $74.95 |
||
|
84660D
|
84660D
88607-10020
Bulb(For Cooler Switch)
[01.1996 -] EP91..RHD 14V 0.08A |
88607-10020 |
— | ||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[01.1996 -] EP91 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84790
|
84790
84790-10200
Switch Assy, Rear Window Defogger
[01.1996 -] EP91..RHD |
84790-10200 |
— | ||
|
84790B
|
84790B
84999-10310 Bulb, Air Conditioner Control[12.1997 -] EP91..RHD 14V 0.91W |
84999-10310 |
from US $2.96 |
||
|
84790E
|
84790E
84998-10180 Cap, Cooler Switch Bulb[01.1996 -] EP91..RHD |
84998-10180 |
US $2.97 |
||
|
85500
|
85500
85500-16200 Lighter Assy, Cigarette[01.1996 -] EP91 |
85500-16200 |
US $70.32 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[01.1996 -] EP91 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
85500F
|
85500F
84998-10390 Cap, Heater Blower Switch Bulb[01.1996 -] EP91 |
84998-10390 |
US $2.61 |
||
|
7831316010
|
7831316010
78313-16010
Nut, Choke Shaft Set
|
78313-16010 |
— | ||
