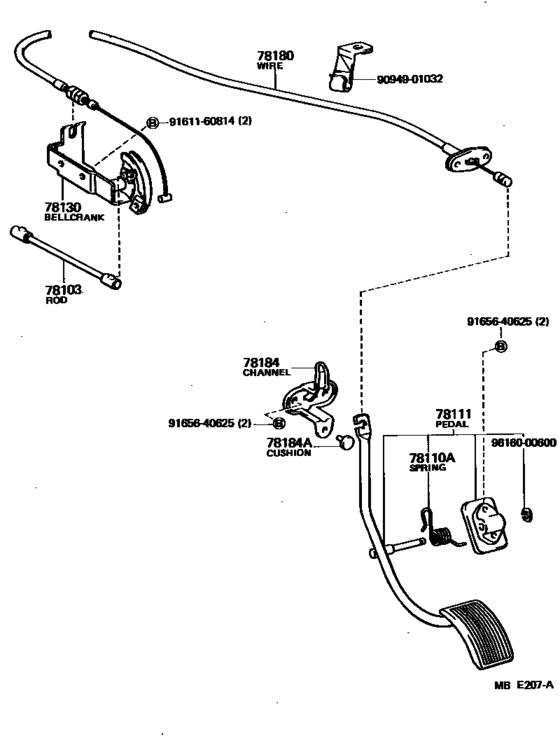

Accelerator Link ([08.1982 - ] (8208- )EFI) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- KP61
- grade
- XL
- body
- SED
- ENGINE
- 4KEU
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78103
|
78103
78103-10030
Rod Sub-Assy, Accelerator Connecting, No.1
[08.1982 - 09.1984] KP61..EFI |
78103-10030 |
— | ||
|
78110A
|
78110A
90508-23021 Spring (For Accelerator Pedal Rod)[05.1980 - 09.1984] KP6#..MTM |
90508-23021 |
US $3.79 |
||
|
78111
|
78111
78010-10080
Pedal, Accelerator
[08.1982 - 09.1984] KP61..EFI |
78010-10080 |
— | ||
|
78130
|
78130
78160-10010
Bellcrank Assy, Accelerator
[08.1982 - 09.1984] KP61..EFI |
78160-10010 |
— | ||
|
78180
|
78180
78180-10200 Wire Assy, AcceleratorACCELERATOR [08.1982 - 09.1984] KP61..EFI |
78180-10200 |
US $55.48 |
||
|
78184
|
78184
78181-10060
Channel, Accelerator Idle Adjusting Stopper
[02.1978 - 09.1984] KP6# |
78181-10060 |
— | ||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[02.1978 - 09.1984] KP6# |
90541-06008 |
from US $1.60 |
||
|
9094901032
|
9094901032
90949-01032 New Genuine Part |
90949-01032 |
US $3.64 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165640625
|
9165640625
91656-40625 New Genuine Part |
91656-40625 |
US $1.89 |
||
| replacement | |||||
|
9165640625
|
9165640625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
