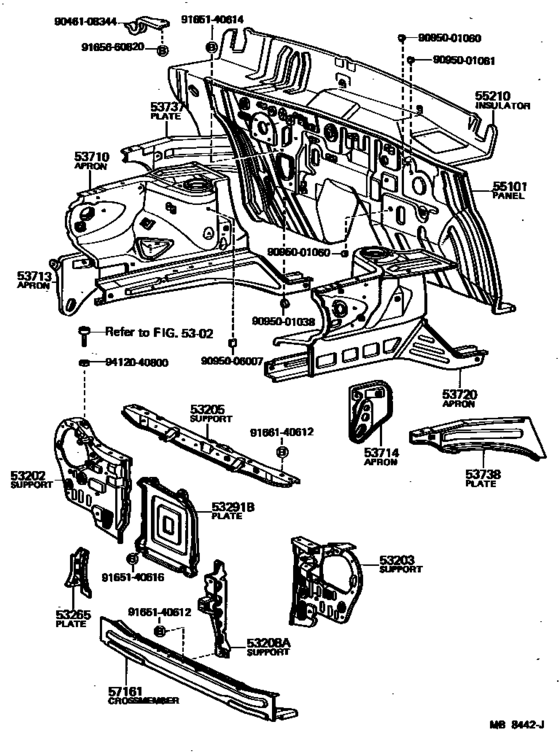

Front Fender Apron & Dash Panel ([02.1978 - 05.1980] (7802-8005)) Diagram Toyota STARLET
- Year
- 1978 - 1981
- Sales region
- Japan
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- ATM
- From
- 02.1978
- To
- 08.1981
- Gear Shift Type
- 2FC
- No.of Doors
- 5D
- Seating Capacity
- 05S
- Vehicle Model
- STARLET
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-10050
Support Sub-Assy, Radiator, Rh
[02.1978 - 05.1980] KP6# |
53202-10050 |
— | ||
|
53202
|
53202
53202-10051
Support Sub-Assy, Radiator, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,S,STD,XL |
53202-10051 |
— | ||
| replacement | |||||
|
53202
|
53202
53202-10052
Support Sub-Assy, Radiator, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,S,STD,XL |
53202-10052 |
— | ||
|
53202
|
53202
53202-10052
Support Sub-Assy, Radiator, Rh
[08.1981 - 08.1982] KP6#..DLX,DXA,S,STD,XL |
53202-10052 |
— | ||
|
53203
|
53203
53203-10060
Support Sub-Assy, Radiator, Lh
[02.1978 - 01.1979] KP6# |
53203-10060 |
— | ||
|
53203
|
53203
53203-10061 Support Sub-Assy, Radiator, Lh[05.1980 - 08.1981] KP61..DLX,DXA,S,STD,XL |
53203-10061 |
US $158.70 |
||
| replacement | |||||
|
53203
|
53203
53203-10100
Support Sub-Assy, Radiator, Lh
[05.1980 - 08.1981] KP61..DLX,DXA,S,STD,XL |
53203-10100 |
— | ||
|
53203
|
53203
53203-10062
Support Sub-Assy, Radiator, Lh
[08.1981 - 08.1982] KP61..DLX,DXA,S,STD,XL |
53203-10062 |
— | ||
|
53205
|
53205
53205-10040
Support Sub-Assy, Radiator, Upper
[02.1978 - 05.1980] KP6# |
53205-10040 |
— | ||
|
53205
|
53205
53205-10041
Support Sub-Assy, Radiator, Upper
[05.1980 - 08.1982] KP6# |
53205-10041 |
— | ||
|
53208A
|
53208A
53208-10010
Support Sub-Assy, Hood Lock
[02.1978 - 05.1980] KP6# |
53208-10010 |
— | ||
|
53208A
|
53208A
53208-10011 Support Sub-Assy, Hood LockHOOD LOCK [05.1980 - 08.1982] KP6# |
53208-10011 |
US $27.08 |
||
|
53265
|
53265
53265-10010
Plate, Battery Carrier Mounting, No.2
[02.1978 - 05.1980] KP6# |
53265-10010 |
— | ||
|
53291B
|
53291B
53291-10010
Plate, Radiator Cover
[02.1978 - 08.1982] KP6# |
53291-10010 |
— | ||
|
53710
|
53710
53701-10120
Apron Assy, W/front Side Member, Rh
[02.1978 - 05.1980] KP6# |
53701-10120 |
— | ||
|
53710
|
53710
53701-10121
Apron Assy, W/front Side Member, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,S,STD,XL |
53701-10121 |
— | ||
| replacement | |||||
|
53710
|
53710
53701-10232
Apron Assy, W/front Side Member, Rh
[05.1980 - 08.1981] KP6#..DLX,DXA,S,STD,XL |
53701-10232 |
— | ||
|
53710
|
53710
53701-10180 Apron Assy, W/front Side Member, Rh[08.1981 - 09.1981] KP61..DLX,DXA,S,STD,XL |
53701-10180 |
US $615.89 |
||
| replacement | |||||
|
53710
|
53710
53701-10181
Apron Assy, W/front Side Member, Rh
[08.1981 - 09.1981] KP61..DLX,DXA,S,STD,XL |
53701-10181 |
— | ||
|
53713
|
53713
53707-10010
Apron, Fender Side, Rh
[02.1978 - 05.1980] KP6# |
53707-10010 |
— | ||
|
53713
|
53713
53707-10011 Apron, Fender Side, RhFENDER SIDE, RH [05.1980 - 08.1982] KP6#..DLX,DXA,S,STD,XL |
53707-10011 |
US $38.15 |
||
| replacement | |||||
|
53713
|
53713
53707-10012
Apron, Fender Side, Rh
[05.1980 - 08.1982] KP6#..DLX,DXA,S,STD,XL |
53707-10012 |
— | ||
|
53714
|
53714
53708-10010
Apron, Fender Side, Lh
[02.1978 - 05.1980] KP6# |
53708-10010 |
— | ||
|
53714
|
53714
53708-10011 Apron, Fender Side, LhFENDER SIDE, LH [05.1980 - 08.1982] KP6#..DLX,DXA,S,STD,XL |
53708-10011 |
US $38.15 |
||
| replacement | |||||
|
53714
|
53714
53708-10012
Apron, Fender Side, Lh
[05.1980 - 08.1982] KP6#..DLX,DXA,S,STD,XL |
53708-10012 |
— | ||
|
53720
|
53720
53702-10150
Apron Assy, W/front Side Member, Lh
[02.1978 - 05.1980] KP6# |
53702-10150 |
— | ||
|
53720
|
53720
53702-10151
Apron Assy, W/front Side Member, Lh
[05.1980 - 08.1981] KP6#..DLX,DXA,S,STD,XL |
53702-10151 |
— | ||
|
53720
|
53720
53702-10152 Apron Assy, W/front Side Member, Lh[08.1981 - 09.1981] KP61..DLX,DXA,S,STD,XL |
53702-10152 |
US $615.89 |
||
| replacement | |||||
|
53720
|
53720
53702-10153
Apron Assy, W/front Side Member, Lh
[08.1981 - 09.1981] KP61..DLX,DXA,S,STD,XL |
53702-10153 |
— | ||
|
53737
|
53737
53737-10030 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [02.1978 - 05.1980] KP6# |
53737-10030 |
US $43.97 |
||
| replacement | |||||
|
53737
|
53737
53737-10040 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [02.1978 - 05.1980] KP6# |
53737-10040 |
US $44.12 |
||
|
53737
|
53737
53737-10040 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [01.1981 - 08.1981] KP6# |
53737-10040 |
US $44.12 |
||
|
53737
|
53737
53737-10041 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [08.1981 - 08.1982] KP6# |
53737-10041 |
US $47.17 |
||
| replacement | |||||
|
53737
|
53737
53737-10042 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [08.1981 - 08.1982] KP6# |
53737-10042 |
US $46.88 |
||
|
53737
|
53737
53737-10050
Plate, Front Apron To Cowl Side Member, Rh
[05.1980 - 01.1981] KP61 |
53737-10050 |
— | ||
| replacement | |||||
|
53737
|
53737
53737-10040 Plate, Front Apron To Cowl Side Member, RhFRONT APRON TO COWL SIDE MEMBER, RH [05.1980 - 01.1981] KP61 |
53737-10040 |
US $44.12 |
||
|
53738
|
53738
53738-10030 Plate, Front Apron To Cowl Side Member, LhFRONT APRON TO COWL SIDE MEMBER, LH [02.1978 - 05.1980] KP6# |
53738-10030 |
US $43.97 |
||
| replacement | |||||
|
53738
|
53738
53738-10040
Plate, Front Apron To Cowl Side Member, Lh
[02.1978 - 05.1980] KP6# |
53738-10040 |
— | ||
|
53738
|
53738
53738-10040
Plate, Front Apron To Cowl Side Member, Lh
[01.1981 - 08.1981] KP6# |
53738-10040 |
— | ||
|
53738
|
53738
53738-10041
Plate, Front Apron To Cowl Side Member, Lh
[08.1981 - 08.1983] KP6# |
53738-10041 |
— | ||
| replacement | |||||
|
53738
|
53738
53738-10040
Plate, Front Apron To Cowl Side Member, Lh
[08.1981 - 08.1983] KP6# |
53738-10040 |
— | ||
|
53738
|
53738
53738-10050
Plate, Front Apron To Cowl Side Member, Lh
[05.1980 - 01.1981] KP61 |
53738-10050 |
— | ||
| replacement | |||||
|
53738
|
53738
53738-10040
Plate, Front Apron To Cowl Side Member, Lh
[05.1980 - 01.1981] KP61 |
53738-10040 |
— | ||
|
55101
|
55101
55101-10210
Panel Sub-Assy, Dash
[02.1978 - 05.1979] KP61..2FC |
55101-10210 |
— | ||
|
55101
|
55101
55101-10211 Panel Sub-Assy, Dash[05.1979 - 05.1980] KP61..2FC |
55101-10211 |
US $279.55 |
||
| replacement | |||||
|
55101
|
55101
55101-10212
Panel Sub-Assy, Dash
[05.1979 - 05.1980] KP61..2FC |
55101-10212 |
— | ||
|
55101
|
55101
55101-10212
Panel Sub-Assy, Dash
[05.1980 - 08.1981] KP61..2FC |
55101-10212 |
— | ||
|
55101
|
55101
55101-10213 Panel Sub-Assy, Dash[08.1981 - 08.1982] KP61..3FC |
55101-10213 |
US $281.01 |
||
| replacements | |||||
|
55101
|
55101
55101-10253
Panel Sub-Assy, Dash
[08.1981 - 08.1982] KP61..3FC |
55101-10253 |
— | ||
|
55101
|
55101
90950-01002 New Genuine Part[08.1981 - 08.1982] KP61..3FC |
90950-01002 |
US $2.91 |
||
|
55210
|
55210
55210-10010 Insulator Assy, Dash PanelDASH PANEL [02.1978 - 08.1981] KP6# |
55210-10010 |
US $184.91 |
||
| replacement | |||||
|
55210
|
55210
55210-10090
Insulator Assy, Dash Panel
[02.1978 - 08.1981] KP6# |
55210-10090 |
— | ||
|
55210
|
55210
55210-10090
Insulator Assy, Dash Panel
[08.1981 - 08.1982] KP6# |
55210-10090 |
— | ||
|
57161
|
57161
57104-10040 Crossmember, FrontFRONT [02.1978 - 05.1980] KP6# |
57104-10040 |
US $206.75 |
||
| replacement | |||||
|
57161
|
57161
57104-19015
Crossmember, Front
[02.1978 - 05.1980] KP6# |
57104-19015 |
— | ||
|
57161
|
57161
57104-10041 Crossmember, FrontFRONT [05.1980 - 08.1982] KP6# |
57104-10041 |
US $182 |
||
| replacement | |||||
|
57161
|
57161
57104-10050 Crossmember, Front[05.1980 - 08.1982] KP6# |
57104-10050 |
US $183.46 |
||
|
9046108344
|
9046108344
90461-08344
New Genuine Part
|
90461-08344 |
— | ||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095006007
|
9095006007
90950-06007 Protector, Front Side Panel, No.3 |
90950-06007 |
US $3.49 |
||
| replacement | |||||
|
9095006007
|
9095006007
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.08 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
