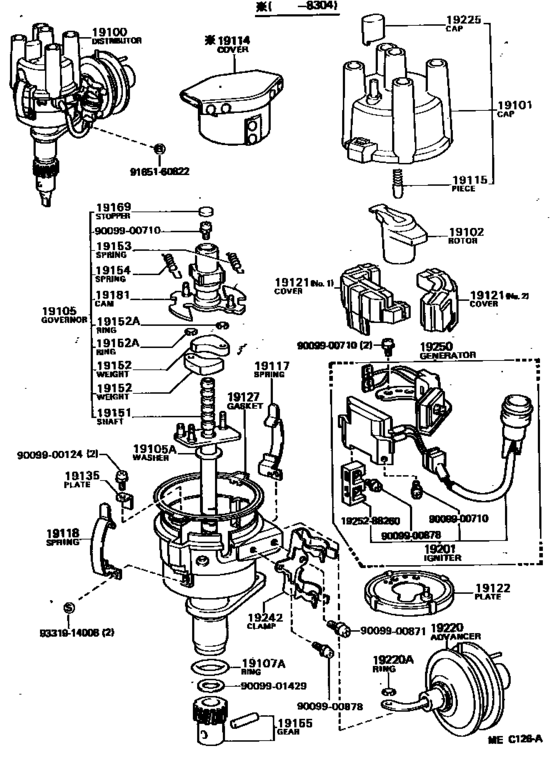

Distributor ([08.1982 - 05.1983] (8208-8305)4KE..4F) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19060-13030
Distributor Assy
[08.1982 - 12.1983] 4KE..KP61..4F |
19060-13030 |
— | ||
|
19101
|
19101
19101-25070 Cap Sub-Assy, Distributor[08.1980 - 12.1983] 4K#..KP61 |
19101-25070 |
US $38.44 |
||
|
19102
|
19102
19102-26150
Rotor Sub-Assy, Distributor
[08.1980 - 12.1983] 4K#..KP61 |
19102-26150 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-26151 Rotor Sub-Assy, Distributor[08.1980 - 12.1983] 4K#..KP61 |
19102-26151 |
US $17.33 |
||
|
19105
|
19105
19105-13020
Governor Sub-Assy
[08.1982 - 12.1983] 4KE..KP61..4F |
19105-13020 |
— | ||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[08.1980 - 12.1983] 4K#..KP61 T=2.5,T=2.5 |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[08.1980 - 12.1983] 4K#..KP61 T=2.7,T=2.7 |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[08.1980 - 12.1983] 4K#..KP61 T=2.9,T=2.9 |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[08.1980 - 12.1983] 4K#..KP61 T=2.3,T=2.3 |
90099-01412 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1980 - 12.1983] 4K#..KP61 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1980 - 12.1983] 4K#..KP61 |
90099-14090 |
from US $2.80 |
||
|
19114
|
19114
19114-24020
Cover, Water Proof(For Distributor)
[08.1982 - 04.1983] 4KE..KP61..USA COLD SPEC |
19114-24020 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1980 - 12.1983] 4K#..KP61 |
19115-50010 |
— | ||
|
19117
|
19117
19117-24080
Spring, Distributor Cap, A
[08.1980 - 12.1983] 4K#..KP61 |
19117-24080 |
— | ||
|
19118
|
19118
19117-24080
Spring, Distributor Cap, A
[08.1980 - 12.1983] 4K#..KP61 |
19117-24080 |
— | ||
|
19121
|
19121
19121-88260
Cover, Dust Proof
[08.1982 - 12.1983] 4KE..KP61..4F NO.2 |
19121-88260 |
— | ||
|
19121
|
19121
19121-88261
Cover, Dust Proof
[08.1982 - 12.1983] 4KE..KP61..4F NO.1 |
19121-88261 |
— | ||
|
19122
|
19122
19122-88263
Plate, Stationary, Distributor
[08.1982 - 12.1983] 4KE..KP61 |
19122-88263 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[08.1981 - 12.1983] 4K#..KP61 |
19127-15010 |
— | ||
|
19135
|
19135
19135-24080
Plate, Holder
[08.1980 - 12.1983] 4K#..KP61 |
19135-24080 |
— | ||
|
19151
|
19151
19151-24081 Shaft, Governor[08.1980 - 12.1983] 4K#..KP61 |
19151-24081 |
US $44.12 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1980 - 12.1983] 4K#..KP61 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1980 - 12.1983] 4K#..KP61 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[08.1980 - 12.1983] 4K#..KP61 |
90099-07109 |
— | ||
|
19153
|
19153
19153-13020
Spring, Governor, A
[08.1982 - 12.1983] 4KE..KP61..4F |
19153-13020 |
— | ||
|
19154
|
19154
19154-13020
Spring, Governor, B
[08.1982 - 12.1983] 4KE..KP61..4F |
19154-13020 |
— | ||
|
19155
|
19155
19195-13060 Gear, Spiral, Distributor[08.1982 - 12.1983] 4KE..KP61 |
19195-13060 |
US $42.66 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1980 - 12.1983] 4K#..KP61 |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1980 - 12.1983] 4K#..KP61 |
19169-63011 |
— | ||
|
19181
|
19181
19181-13020
Rotor, Distributor, Signal
[08.1982 - 12.1983] 4KE..KP61..4F |
19181-13020 |
— | ||
|
19201
|
19201
89620-10070
Igniter
[08.1982 - 12.1983] 4KE..KP61..4F |
89620-10070 |
— | ||
|
19220
|
19220
19220-13020 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1982 - 12.1983] 4KE..KP61..4F |
19220-13020 |
US $115.02 |
||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[08.1980 - 12.1983] 4K#..KP61 |
90099-07109 |
— | ||
|
19225
|
19225
19225-25070
Cap, Rubber
[08.1980 - 12.1983] 4K#..KP61 |
19225-25070 |
— | ||
|
19242
|
19242
19242-13150 Clamp, Cord[08.1982 - 12.1983] 4KE..KP61 |
19242-13150 |
US $12.52 |
||
|
19250
|
19250
19250-13020 Generator Assy, Signal[05.1983 - 12.1983] 4KE..KP61..4F |
19250-13020 |
US $168.90 |
||
| replacement | |||||
|
19250
|
19250
19250-13120
Generator Assy, Signal
[05.1983 - 12.1983] 4KE..KP61..4F |
19250-13120 |
— | ||
|
19250
|
19250
19250-13040
Generator Assy, Signal
[08.1982 - 05.1983] 4KE..KP61..4F |
19250-13040 |
— | ||
|
1925288260
|
1925288260
19252-88260
New Genuine Part
|
19252-88260 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009901429
|
9009901429
90099-01429
Washer, No.2(For Governor Shaft Thrust)
|
90099-01429 |
— | ||
|
9165160822
|
9165160822
91651-60822
New Genuine Part
|
91651-60822 |
— | ||
| replacement | |||||
|
9165160822
|
9165160822
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
