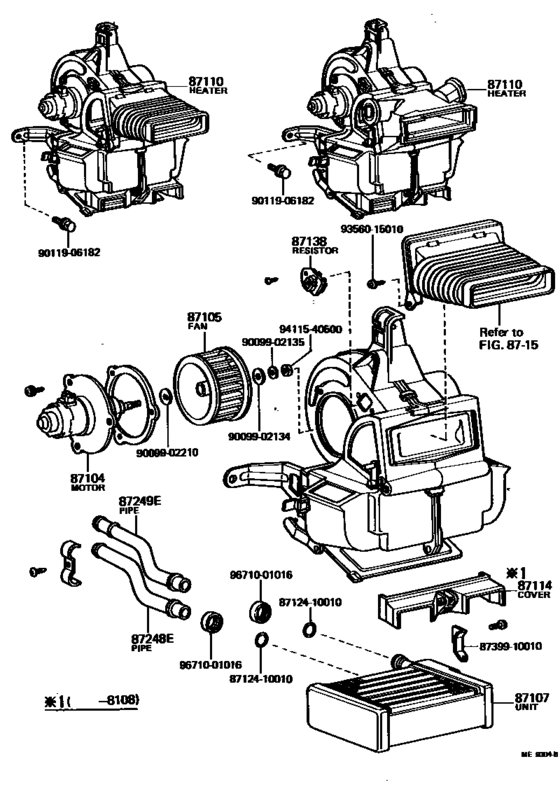

Heating & Air Conditioning - Heater Unit & Blower ([08.1980 - 08.1982] (8008-8208)) Diagram Toyota STARLET
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1982
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-10090
Motor Sub-Assy, Heater Blower
[08.1980 - 01.1981] KP61..USA |
87104-10090 |
— | ||
|
87104
|
87104
87104-10120
Motor Sub-Assy, Heater Blower
[08.1980 - 08.1982] KP61..USA W/COOLER |
87104-10120 |
— | ||
|
87104
|
87104
87104-10130 Motor Sub-Assy, Heater BlowerHEATER BLOWER [08.1982 - 12.1983] KP61 |
87104-10130 |
US $327.60 |
||
|
87104
|
87104
87104-95403 Motor Sub-Assy, Heater Blower[08.1980 - 08.1981] KP61..CND; KP61..USA HEAVY DUTY |
87104-95403 |
US $313.04 |
||
|
87104
|
87104
88550-87701
Motor Sub-Assy, Heater Blower
[08.1981 - 08.1982] KP61..CND; KP61..USA HEAVY DUTY;HEAVY DUTY,W/RR DUCT |
88550-87701 |
— | ||
|
87105
|
87105
87105-12040
Fan Sub-Assy, Heater Blower
[08.1980 - 08.1982] KP61 |
87105-12040 |
— | ||
|
87105
|
87105
87105-12060
Fan Sub-Assy, Heater Blower
[08.1982 - 12.1983] KP61 |
87105-12060 |
— | ||
|
87107
|
87107
87107-10120
Unit Sub-Assy, Heater Radiator
[08.1980 - 08.1982] KP61 |
87107-10120 |
— | ||
|
87107
|
87107
87107-10160
Unit Sub-Assy, Heater Radiator
[08.1982 - 12.1983] KP61..USA |
87107-10160 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-10170
Unit Sub-Assy, Heater Radiator
[08.1982 - 12.1983] KP61..USA |
87107-10170 |
— | ||
|
87107
|
87107
87107-10170
Unit Sub-Assy, Heater Radiator
[08.1982 - 12.1983] KP61 FIN PICH=3.2 |
87107-10170 |
— | ||
|
87110
|
87110
87110-10210
Heater Assy
[08.1980 - 08.1981] KP61..USA W/COOLER |
87110-10210 |
— | ||
| replacements | |||||
|
87110
|
87110
55906-10112 Cable Sub-Assy, Defrost ControlDEFROST CONTROL [08.1980 - 08.1981] KP61..USA W/COOLER |
55906-10112 |
US $10.05 |
||
|
87110
|
87110
87110-10211
Heater Assy
[08.1980 - 08.1981] KP61..USA W/COOLER |
87110-10211 |
— | ||
|
87110
|
87110
87110-10211
Heater Assy
[08.1981 - 08.1982] KP61..USA W/COOLER |
87110-10211 |
— | ||
|
87110
|
87110
87110-10240
Heater Assy
[08.1980 - 01.1981] KP61..USA |
87110-10240 |
— | ||
| replacement | |||||
|
87110
|
87110
87110-10250
Heater Assy
[08.1980 - 01.1981] KP61..USA |
87110-10250 |
— | ||
|
87110
|
87110
87110-10250
Heater Assy
[08.1980 - 08.1981] KP61..USA HEAVY DUTY |
87110-10250 |
— | ||
|
87110
|
87110
87110-10251
Heater Assy
[08.1981 - 08.1982] KP61..USA HEAVY DUTY |
87110-10251 |
— | ||
|
87110
|
87110
87110-10261
Heater Assy
[08.1981 - 08.1982] KP61..USA HEAVY DUTY,W/COOLER |
87110-10261 |
— | ||
|
87110
|
87110
87110-10271
Heater Assy
[08.1981 - 08.1982] KP61..USA HEAVY DUTY,W/RR DUCT |
87110-10271 |
— | ||
|
87114
|
87114
87114-10020
Cover, Heater
[08.1980 - 08.1981] KP61..USA |
87114-10020 |
— | ||
|
87138
|
87138
87138-10080
Resistor, Heater Blower
[08.1982 - 12.1983] KP61 |
87138-10080 |
— | ||
|
87138
|
87138
87138-14020
Resistor, Heater Blower
[08.1980 - 08.1982] KP61..USA W/COOLER |
87138-14020 |
— | ||
|
87138
|
87138
87138-16010
Resistor, Heater Blower
[08.1980 - 01.1981] KP61..USA |
87138-16010 |
— | ||
|
87138
|
87138
87138-16020
Resistor, Heater Blower
[08.1980 - 08.1981] KP61..CND; KP61..USA HEAVY DUTY |
87138-16020 |
— | ||
|
87248E
|
87248E
87291-10100
Pipe, Heater Water Inlet, E
[08.1980 - 08.1982] KP61 |
87291-10100 |
— | ||
|
87249E
|
87249E
87291-10090
Pipe, Heater Water Outlet, E (For Heater Unit)
[08.1980 - 08.1982] KP61 |
87291-10090 |
— | ||
|
8712410010
|
8712410010
87124-10010 Clamp, Heater |
87124-10010 |
from US $1.75 |
||
|
8739910010
|
8739910010
87399-10010
Band Assy (for Combustion Heater)
|
87399-10010 |
— | ||
|
9009902134
|
9009902134
90099-02134
New Genuine Part
|
90099-02134 |
— | ||
|
9009902135
|
9009902135
90099-02135
New Genuine Part
|
90099-02135 |
— | ||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9011906182
|
9011906182
90119-06182 Bolt, W/washer (For Floor Shift) |
90119-06182 |
US $1.44 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.28 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9671001016
|
9671001016
96710-01016
Ring, O, No.2(For Vane Pump Housing)
|
96710-01016 |
— | ||
| replacement | |||||
|
9671001016
|
9671001016
96711-19016 Ring, O (For 5Th Shift Arm Shaft) |
96711-19016 |
US $4.80 |
||
