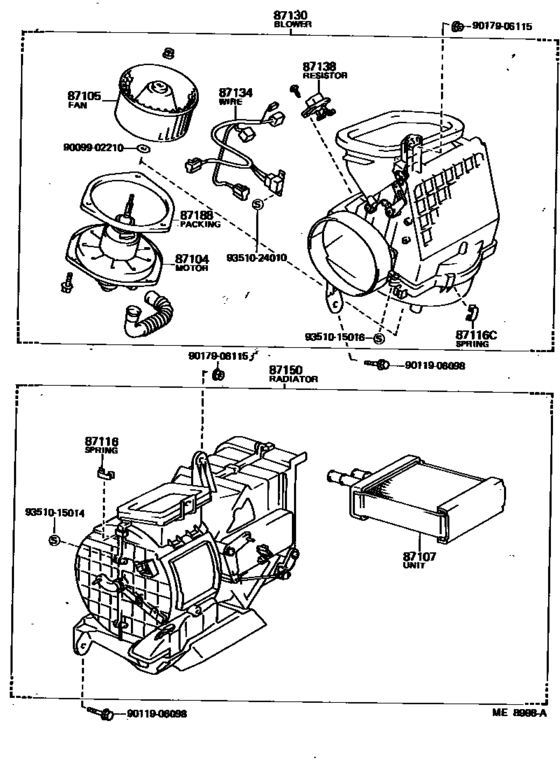

Heating & Air Conditioning - Heater Unit & Blower ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-10120
Motor Sub-Assy, Heater Blower
[08.1980 - 08.1982] KP61..USA W/COOLER |
87104-10120 |
— | ||
|
87104
|
87104
87104-10130 Motor Sub-Assy, Heater BlowerHEATER BLOWER [08.1982 - 12.1983] KP61 |
87104-10130 |
US $327.60 |
||
|
87104
|
87104
88550-87701
Motor Sub-Assy, Heater Blower
[08.1981 - 08.1982] KP61..CND; KP61..USA HEAVY DUTY;HEAVY DUTY,W/RR DUCT |
88550-87701 |
— | ||
|
87105
|
87105
87105-12040
Fan Sub-Assy, Heater Blower
[08.1980 - 08.1982] KP61 |
87105-12040 |
— | ||
|
87105
|
87105
87105-12060
Fan Sub-Assy, Heater Blower
[08.1982 - 12.1983] KP61 |
87105-12060 |
— | ||
|
87107
|
87107
87107-10120
Unit Sub-Assy, Heater Radiator
[08.1980 - 08.1982] KP61 |
87107-10120 |
— | ||
|
87107
|
87107
87107-10160
Unit Sub-Assy, Heater Radiator
[08.1982 - 12.1983] KP61..USA |
87107-10160 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-10170
Unit Sub-Assy, Heater Radiator
[08.1982 - 12.1983] KP61..USA |
87107-10170 |
— | ||
|
87107
|
87107
87107-10170
Unit Sub-Assy, Heater Radiator
[08.1982 - 12.1983] KP61 FIN PICH=3.2 |
87107-10170 |
— | ||
|
87116
|
87116
87116-14010
Spring, Heater Case Fastening
[08.1982 - 12.1983] KP61 |
87116-14010 |
— | ||
|
87116C
|
87116C
87116-14010
Spring, Heater Case Fastening
[08.1982 - 12.1983] KP61 |
87116-14010 |
— | ||
|
87130
|
87130
87130-10090
Blower Assy, Heater, Front
[08.1982 - 12.1983] KP61 |
87130-10090 |
— | ||
|
87134
|
87134
87134-10020
Wire, Heater Blower
[08.1982 - 12.1983] KP61 |
87134-10020 |
— | ||
| replacement | |||||
|
87134
|
87134
82134-10020
Wire, Heater Blower
[08.1982 - 12.1983] KP61 |
82134-10020 |
— | ||
|
87138
|
87138
87138-10080
Resistor, Heater Blower
[08.1982 - 12.1983] KP61 |
87138-10080 |
— | ||
|
87138
|
87138
87138-14020
Resistor, Heater Blower
[08.1980 - 08.1982] KP61..USA W/COOLER |
87138-14020 |
— | ||
|
87150
|
87150
87150-10090
Radiator Assy, Heater
[08.1982 - 12.1983] KP61..USA |
87150-10090 |
— | ||
|
87150
|
87150
87150-10100
Radiator Assy, Heater
[08.1982 - 12.1983] KP61 FIN PICH=3.2,W/RR DUCT |
87150-10100 |
— | ||
|
87150
|
87150
87150-10120
Radiator Assy, Heater
[08.1982 - 12.1983] KP61..USA FIN PICH=3.2,W/O RR DUCT |
87150-10120 |
— | ||
| replacement | |||||
|
87150
|
87150
87150-10090
Radiator Assy, Heater
[08.1982 - 12.1983] KP61..USA FIN PICH=3.2,W/O RR DUCT |
87150-10090 |
— | ||
|
87188
|
87188
87127-12020
Packing, Heater Blower Motor
[08.1982 - 12.1983] KP61 |
87127-12020 |
— | ||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9011906098
|
9011906098
90119-06098 BOLT |
90119-06098 |
US $1.28 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9351015014
|
9351015014
93510-15014
New Genuine Part
|
93510-15014 |
— | ||
|
9351015016
|
9351015016
93510-15016 New Genuine Part |
93510-15016 |
US $3.06 |
||
|
9351024010
|
9351024010
93510-24010 New Genuine Part |
93510-24010 |
US $2.33 |
||
