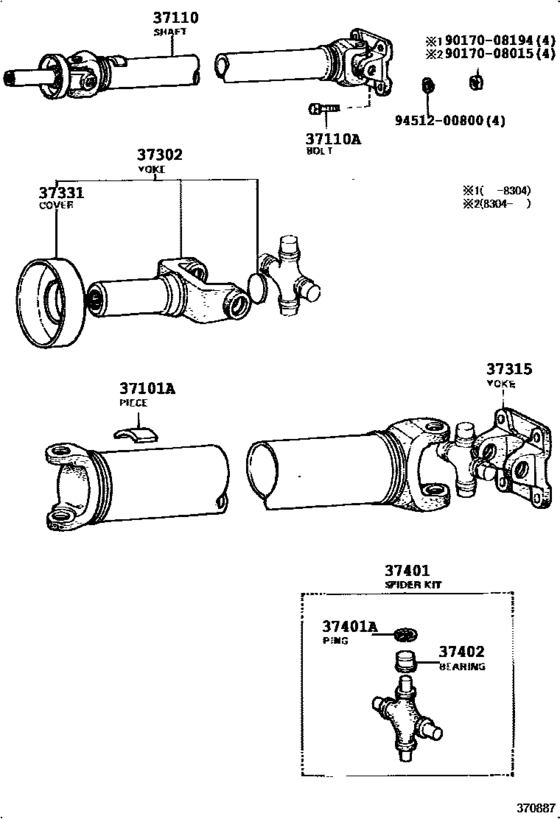

Propeller Shaft & Universal Joint ([08.1980 - ] (8008- )) Diagram Toyota STARLET
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- KP61
- body
- SED
- ENGINE
- 4KE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 12.1983
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 10G,L=20.7,10G |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 20G,L=41.4,20G |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 30G,L=62.2,30G |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 2G,T=2.0,2G |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 4G,T=2.0,4G |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 6G,L=12.4,6G |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 8G,L=16.6,8G |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 12G,L=24.9,12G |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 14G,L=29.0,14G |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 16G,L=33.2,16G |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 18G,L=37.3,18G |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 22G,L=45.6,22G |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 24G,L=49.7,24G |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 26G,L=53.9,26G |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.1980 - 12.1983] KP61 28G,L=58.1,28G |
90937-01158 |
US $1.75 |
||
|
37110
|
37110
37110-10080 Shaft Assy, PropellerPROPELLER [08.1980 - 08.1982] KP61 |
37110-10080 |
US $642.10 |
||
| replacement | |||||
|
37110
|
37110
37110-10140 Shaft Assy, Propeller[08.1980 - 08.1982] KP61 |
37110-10140 |
US $642.10 |
||
|
37110
|
37110
37110-10100 Shaft Assy, PropellerPROPELLER [08.1982 - 12.1983] KP61 |
37110-10100 |
US $642.10 |
||
| replacement | |||||
|
37110
|
37110
37110-10150 Shaft Assy, Propeller[08.1982 - 12.1983] KP61 |
37110-10150 |
US $642.10 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.1983 - 12.1983] KP61 *8-1.25PX25-12,13G |
90101-08082 |
from US $1.09 |
||
|
37110A
|
37110A
90101-08085 Bolt (For Propeller Shaft)[08.1980 - 06.1983] KP61 15G,YELLOW |
90101-08085 |
US $8.44 |
||
|
37110A
|
37110A
90101-08086 Bolt (For Propeller Shaft)[08.1980 - 06.1983] KP61 17G,YELLOW |
90101-08086 |
US $8.01 |
||
|
37110A
|
37110A
90101-08087 Bolt (For Propeller Shaft)[08.1980 - 06.1983] KP61 19G,YELLOW |
90101-08087 |
US $8.15 |
||
|
37110A
|
37110A
90101-08088 Bolt (For Propeller Shaft)[06.1983 - 12.1983] KP61 15G,BLACK |
90101-08088 |
US $9.03 |
||
|
37110A
|
37110A
90101-08090 Bolt (For Propeller Shaft)[06.1983 - 12.1983] KP61 17G,BLACK |
90101-08090 |
US $9.17 |
||
|
37110A
|
37110A
90101-08091 Bolt (For Propeller Shaft)[06.1983 - 12.1983] KP61 19G,BLACK |
90101-08091 |
US $9.17 |
||
|
37110A
|
37110A
90101-08214
Bolt (For Winch Drive Shaft Setting)
[08.1981 - 04.1983] KP61 *8-1.25PX25-12,13.5G |
90101-08214 |
— | ||
| replacement | |||||
|
37110A
|
37110A
90101-08262 Bolt (For Propeller Shaft)[08.1981 - 04.1983] KP61 *8-1.25PX25-12,13.5G |
90101-08262 |
from US $1.48 |
||
|
37302
|
37302
37302-12011
Yoke Sub-Assy, Universal Joint Sleeve
[08.1980 - 12.1983] KP61 |
37302-12011 |
— | ||
|
37315
|
37315
37315-12010
Yoke, Universal Joint Flange
[08.1980 - 12.1983] KP61 |
37315-12010 |
— | ||
|
37331
|
37331
37331-12010
Cover, Sliding Shaft Dust
[08.1980 - 12.1983] KP61 |
37331-12010 |
— | ||
|
37401
|
37401
04371-10011 Spider Kit, Universal Joint(For Propeller Shaft)[08.1980 - 12.1983] KP61 |
04371-10011 |
from US $39.72 |
||
|
37401A
|
37401A
90521-22011 Ring, Hole Snap (For Spider Bearing)[08.1980 - 12.1983] KP61 T=1.2,T=1.175-1.225 |
90521-22011 |
US $4 |
||
|
37401A
|
37401A
90521-22012 Ring, Hole Snap (For Spider Bearing)[08.1980 - 12.1983] KP61 T=1.25,T=1.225-1.275 |
90521-22012 |
US $3.35 |
||
|
37401A
|
37401A
90521-22013 Ring, Hole Snap (For Spider Bearing)[08.1980 - 12.1983] KP61 T=1.30,T=1.275-1.325 |
90521-22013 |
US $3.06 |
||
|
37402
|
37402
37402-10020
Bearing Sub-Assy, Universal Joint Spider
[08.1980 - 12.1983] KP61 |
37402-10020 |
— | ||
|
9017008015
|
9017008015
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90170-08015 |
from US $1.92 |
||
|
9017008194
|
9017008194
90170-08194
Nut(For Backing Plate To Rear Axle Housing Setting)
|
90170-08194 |
— | ||
| replacement | |||||
|
9017008194
|
9017008194
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
