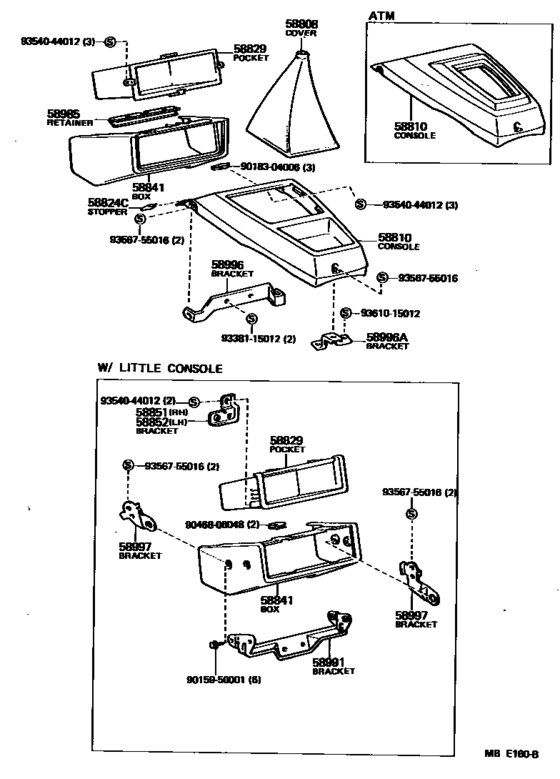

Console Box & Bracket ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58808
|
58808
58808-10031-01 Cover Sub-Assy, Shifting HoleSHIFTING HOLE [08.1981 - 08.1982] KP60,61..SED..MTM..EUR BLACK |
58808-10031-01 |
US $71.49 |
||
|
58810
|
58810
58811-10061-01
Console Assy
[08.1981 - 08.1982] KP60,61..SED..MTM..EUR BLACK,BLACK,TRIM2# |
58811-10061-01 |
— | ||
|
58810
|
58810
58811-10061-04 Console Assy[08.1981 - 08.1982] KP60,61..SED..MTM..EUR BLUE,BLUE,TRIM8# |
58811-10061-04 |
US $109.20 |
||
| replacement | |||||
|
58810
|
58810
58811-10060-01
Console Assy
[08.1981 - 08.1982] KP60,61..SED..MTM..EUR BLUE,BLUE,TRIM8# |
58811-10060-01 |
— | ||
|
58810
|
58810
58811-10061-06
Console Assy
[08.1981 - 08.1982] KP60,61..SED..MTM..EUR LIGHT BROWN,BROWN,TRIM4# |
58811-10061-06 |
— | ||
| replacement | |||||
|
58810
|
58810
58811-10060-01
Console Assy
[08.1981 - 08.1982] KP60,61..SED..MTM..EUR LIGHT BROWN,BROWN,TRIM4# |
58811-10060-01 |
— | ||
|
58829
|
58829
58811-10090 Pocket, Console BoxCONSOLE BOX [08.1982 - 09.1984] KP6#..MTM W/LITTLE CONSOLE |
58811-10090 |
US $37.86 |
||
|
58841
|
58841
58811-10100-02
Box, Console, Upper
[08.1982 - 09.1984] KP61..SED..SDZ W/LITTLE CONSOLE,DARK WINE,RED/MAROON,TRIM3#; KP61..LHD..5F..DLX..EUG W/LITTLE CONSOLE,DARK WINE,RED/MAROON,TRIM3#; KP6#..SED..LHD..4F..EUG W/LITTLE CONSOLE,DARK WINE,RED/MAROON,TRIM3# |
58811-10100-02 |
— | ||
|
58841
|
58841
58811-10100-03
Box, Console, Upper
[08.1982 - 09.1984] KP6#..LHD..MTM..EUR W/LITTLE CONSOLE,GRAY,GRAY,TRIM1# |
58811-10100-03 |
— | ||
|
58841
|
58841
58811-10100-06
Box, Console, Upper
[08.1982 - 09.1984] KP6#..LHD..MTM..(DLX,STD)..EUR W/LITTLE CONSOLE,BROWN,BROWN,TRIM4# |
58811-10100-06 |
— | ||
|
58851
|
58851
58918-10010
Bracket, Console Support, Upper Rh
[08.1982 - 09.1984] KP6#..MTM |
58918-10010 |
— | ||
|
58852
|
58852
58918-10020
Bracket, Console Support, Upper Lh
[08.1982 - 09.1984] KP6#..MTM |
58918-10020 |
— | ||
|
58991
|
58991
58991-10040 Bracket, Console Box Mounting, UpperCONSOLE BOX MOUNTING, UPPER [08.1982 - 09.1984] KP6#..MTM W/LITTLE CONSOLE |
58991-10040 |
US $99.01 |
||
|
58997
|
58997
55389-10060
Bracket, Console Box Mounting, No.3
[08.1982 - 09.1984] KP6#..LHD..MTM RH |
55389-10060 |
— | ||
|
58997
|
58997
58997-10040
Bracket, Console Box Mounting, No.3
[08.1982 - 09.1984] KP6#..LHD..MTM LH |
58997-10040 |
— | ||
|
9015950001
|
9015950001
90159-50001 New Genuine Part |
90159-50001 |
US $2.62 |
||
|
9018304006
|
9018304006
90183-04006 New Genuine Part |
90183-04006 |
US $1.22 |
||
|
9046806048
|
9046806048
90468-06048 New Genuine Part |
90468-06048 |
US $4.22 |
||
|
9338115012
|
9338115012
93381-15012
New Genuine Part
|
93381-15012 |
— | ||
|
9354044012
|
9354044012
93540-44012 Screw, Front Body Pillar Garnish |
93540-44012 |
US $1.46 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9361015012
|
9361015012
93610-15012 New Genuine Part |
93610-15012 |
US $1.05 |
||
