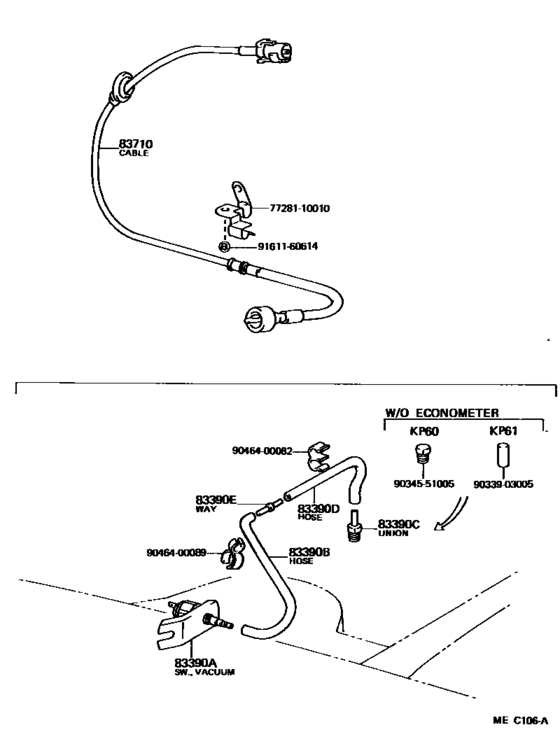

Meter ([08.1982 - ] (8208- )) Diagram Toyota STARLET
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- KP61
- grade
- DLX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- From
- 08.1982
- To
- 09.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- STARLET
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83710
|
83710
83710-10200 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [08.1982 - 10.1982] KP6#..LHD L=2200 |
83710-10200 |
US $55.04 |
||
|
83710
|
83710
83710-10201 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [10.1982 - 09.1984] KP6#..LHD..MTM L=2175 |
83710-10201 |
US $58.24 |
||
|
83710
|
83710
83710-19456 Cable Assy, Speedometer Drive, No.1SPEEDOMETER DRIVE, NO.1 [05.1980 - 08.1982] KP6#..LHD..MTM L=2200 |
83710-19456 |
US $39.31 |
||
|
7728110010
|
7728110010
77281-10010
Bracket, Fuel Main Tube, No.1
|
77281-10010 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9034551005
|
9034551005
90345-51005
Plug, W/head Taper Screw, No.1
|
90345-51005 |
— | ||
| replacement | |||||
|
9034551005
|
9034551005
90345-51025 Plug, W/head Taper Screw, No.2 |
90345-51025 |
US $3.36 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9046400089
|
9046400089
90464-00089 New Genuine Part |
90464-00089 |
US $2.48 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
