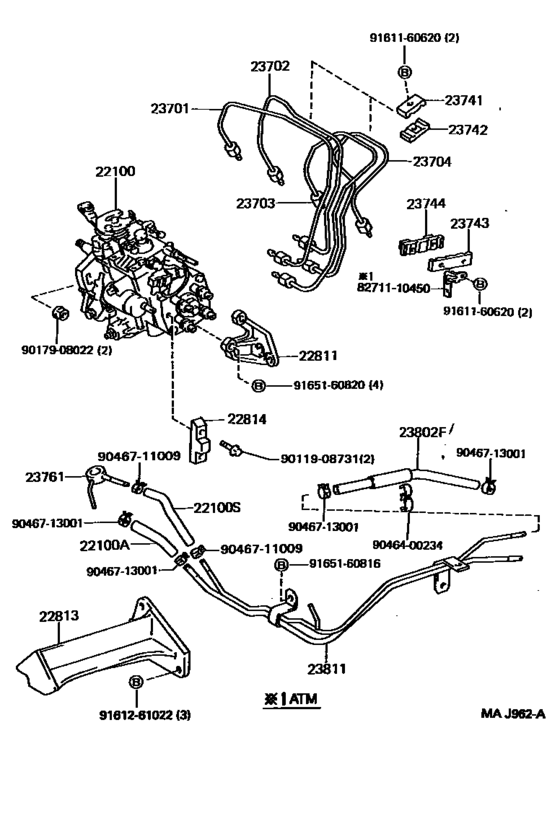

Injection Pump Assembly ([01.1996 - ] (9601- )1N) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- NP90
- grade
- RFL
- ENGINE
- 1N
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-55330 Pump Assy, Injection Or Supply[01.1996 -] 1N..NP90..4FC |
22100-55330 |
US $4,382.56 |
||
|
22100A
|
22100A
95333-08010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[01.1996 -] 1N..NP90 ＊Ｈ，Ｌ＝１００，内径＝８ |
95333-08010 |
— | ||
|
22100S
|
22100S
23273-55010 Hose, Fuel(For Injection Pump To Fuel Pipe)[01.1996 -] 1N..NP90 |
23273-55010 |
US $10.92 |
||
|
22811
|
22811
22811-55010 Stay, Injection Pump, No.1[01.1996 -] 1N..NP90 |
22811-55010 |
US $48.78 |
||
|
22813
|
22813
22813-55020 Protector, Injection Pump, No.1[01.1996 -] 1N..NP90 |
22813-55020 |
US $90.27 |
||
|
22814
|
22814
22814-55021 Protector, Injection Pump, No.2[01.1996 -] 1N..NP90 |
22814-55021 |
US $31.16 |
||
|
23701
|
23701
23701-55010 Pipe Sub-Assy, Injection, No.1[01.1996 -] 1N..NP90 |
23701-55010 |
US $26.50 |
||
|
23702
|
23702
23702-55010 Pipe Sub-Assy, Injection, No.2[01.1996 -] 1N..NP90 |
23702-55010 |
US $30.87 |
||
|
23703
|
23703
23703-55010 Pipe Sub-Assy, Injection, No.3[01.1996 -] 1N..NP90 |
23703-55010 |
US $30.87 |
||
|
23704
|
23704
23704-55010 Pipe Sub-Assy, Injection, No.4[01.1996 -] 1N..NP90 |
23704-55010 |
US $30.87 |
||
|
23741
|
23741
23741-54010 Clamp, Injection Pipe, No.1[01.1996 -] 1N..NP90 |
23741-54010 |
US $20.22 |
||
|
23742
|
23742
23742-54010 Clamp, Injection Pipe, No.2[01.1996 -] 1N..NP90 |
23742-54010 |
US $20.22 |
||
|
23743
|
23743
23741-64020
Clamp, Injection Pipe, No.1
[01.1996 -] 1N..NP90 |
23741-64020 |
— | ||
| replacement | |||||
|
23743
|
23743
23741-64021 Clamp, Injection Pipe, No.1[01.1996 -] 1N..NP90 |
23741-64021 |
US $11.36 |
||
|
23744
|
23744
23742-55010 Clamp, Injection Pipe, No.4[01.1996 -] 1N..NP90 |
23742-55010 |
US $17.76 |
||
| replacement | |||||
|
23744
|
23744
23742-55011 Clamp, Injection Pipe, No.4[01.1996 -] 1N..NP90 |
23742-55011 |
US $17.76 |
||
|
23761
|
23761
23764-55020 Pipe, Nozzle Leakage, No.1[01.1996 -] 1N..NP90 |
23764-55020 |
US $18.20 |
||
|
23802F
|
23802F
90447-14049 Hose, Fuel[01.1996 -] 1N..NP90 |
90447-14049 |
US $17.47 |
||
|
23811
|
23811
23811-55040 Pipe, Fuel(For Fuel Filter To Injection Pump)[01.1996 -] 1N..NP90 |
23811-55040 |
US $66.25 |
||
|
8271110450
|
8271110450
82711-10450 Wire, Fuse To Fuse(for Combustion Heater) |
82711-10450 |
US $5.10 |
||
|
9011908731
|
9011908731
90119-08731 New Genuine Part |
90119-08731 |
US $1.89 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9046400234
|
9046400234
90464-00234
New Genuine Part
|
90464-00234 |
— | ||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
|
9161261022
|
9161261022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
