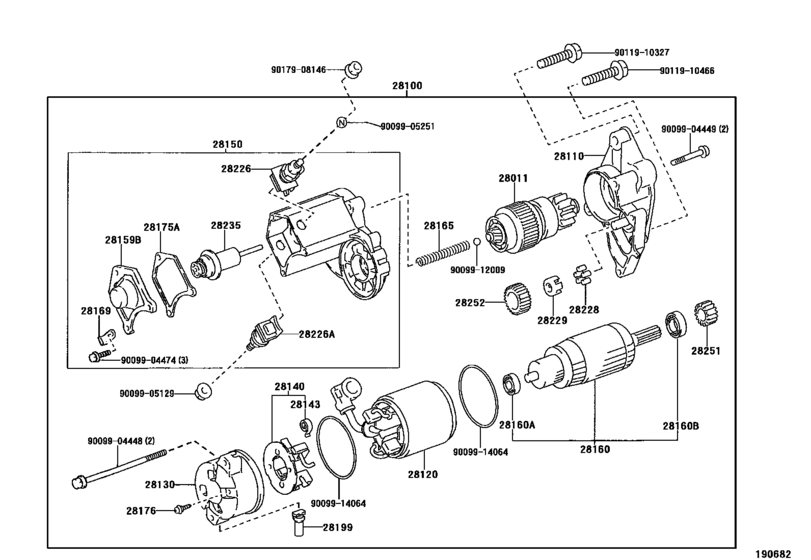

Starter ([01.1996 - ] 12V 1.4KW (9601- )1N) Diagram Toyota STARLET
- Year
- 1996 - 1999
- Sales region
- Japan
- Frame
- NP90
- grade
- RFL
- ENGINE
- 1N
- TRANSMISSION
- ATM
- From
- 01.1996
- To
- 07.1999
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- STARLET
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-55050 Clutch Sub-Assy, Starter[01.1996 -] 1N..NP90 |
28011-55050 |
US $286.83 |
||
|
28011
|
28011
28011-55060 Clutch Sub-Assy, Starter[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28011-55060 |
US $345.07 |
||
|
28100
|
28100
28100-55050 Starter Assy[01.1996 -] 1N..NP90 １２Ｖ １．４ＫＷ |
28100-55050 |
US $1,415.23 |
||
| replacement | |||||
|
28100
|
28100
28100-55060 Starter Assy[01.1996 -] 1N..NP90 １２Ｖ １．４ＫＷ |
28100-55060 |
US $1,805.44 |
||
|
28100
|
28100
28100-55060 Starter Assy[01.1996 -] 1N..NP90 １２Ｖ ２．０ＫＷ |
28100-55060 |
US $1,805.44 |
||
|
28110
|
28110
28110-55050 Housing Assy, Starter Drive[01.1996 -] 1N..NP90 |
28110-55050 |
US $177.63 |
||
|
28110
|
28110
28110-55060 Housing Assy, Starter Drive[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28110-55060 |
US $88.82 |
||
|
28120
|
28120
28120-54380 Yoke Assy, Starter[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28120-54380 |
US $177.24 |
||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[01.1996 -] 1N..NP90 |
28120-55050 |
— | ||
|
28130
|
28130
28130-55050
Frame Assy, Starter Commutator End
[01.1996 -] 1N..NP90 |
28130-55050 |
— | ||
|
28130
|
28130
28130-55060
Frame Assy, Starter Commutator End
[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28130-55060 |
— | ||
|
28140
|
28140
28140-54380 Holder Assy, Starter Brush[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28140-54380 |
from US $53.46 |
||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[01.1996 -] 1N..NP90 |
28140-64130 |
— | ||
|
28143
|
28143
28143-54380
Spring, Starter Brush
[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28143-54380 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[01.1996 -] 1N..NP90 |
90099-17112 |
— | ||
|
28150
|
28150
28150-55051 Switch Assy, Magnet Starter[01.1996 -] 1N..NP90 |
28150-55051 |
US $224.22 |
||
|
28150
|
28150
28150-55060 Switch Assy, Magnet Starter[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-55060 |
US $285.38 |
||
|
28159B
|
28159B
28159-54380
Cover, Magnet Switch
[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28159-54380 |
— | ||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[01.1996 -] 1N..NP90 |
28159-55050 |
— | ||
|
28160
|
28160
28160-55060 Armature Assy, Starter[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-55060 |
US $381.47 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[01.1996 -] 1N..NP90 |
28160-74070 |
— | ||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[01.1996 -] 1N..NP90 |
90099-10197 |
from US $7.34 |
||
|
28160B
|
28160B
90099-10196 Bearing, Starter Armature[01.1996 -] 1N..NP90 |
90099-10196 |
from US $6.12 |
||
|
28165
|
28165
28165-76070
Spring, Starter Magnet Switch Return
[01.1996 -] 1N..NP90 |
28165-76070 |
— | ||
|
28169
|
28169
28169-54380 Clamp, Starter Motor Lead Wire[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28169-54380 |
US $1.85 |
||
|
28169
|
28169
28169-55050
Clamp, Starter Motor Lead Wire
[01.1996 -] 1N..NP90 |
28169-55050 |
— | ||
|
28175A
|
28175A
28175-54380 Gasket, Magnet Switch Cover[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28175-54380 |
US $1.67 |
||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[01.1996 -] 1N..NP90 |
28175-55050 |
from US $1.91 |
||
|
28176
|
28176
90099-00270
Screw, Starter
[01.1996 - 12.1997] 4EFE,1N..EP9#,NP90 |
90099-00270 |
— | ||
|
28176
|
28176
90099-00271
Screw, Starter
[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
90099-00271 |
— | ||
|
28199
|
28199
28199-74110 Cover, Starter End Frame[01.1996 -] 1N..NP90 |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[01.1996 -] 1N..NP90 |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[01.1996 -] 1N..NP90 |
28226-64370 |
from US $7.12 |
||
|
28226
|
28226
28226-66060 Starter Kit, Battery Terminal[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28226-66060 |
US $14.35 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[01.1996 - 12.1997] 4EF#,1N..EP9#,NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28226-72010 |
from US $10.49 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[01.1996 -] 1N..NP90 |
28226-74070 |
from US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[01.1996 - 12.1997] 4EF#,1N..EP9#,NP90 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[01.1996 -] 1N..NP90 |
28229-74070 |
US $1.46 |
||
|
28235
|
28235
28235-54380 Plunger, Magnet Switch[01.1996 -] 1N..NP90 ｶﾝﾚｲﾁ ｼﾖｳ |
28235-54380 |
from US $21.43 |
||
|
28235
|
28235
28235-55050 Plunger, Magnet Switch[01.1996 -] 1N..NP90 |
28235-55050 |
US $20.27 |
||
|
28251
|
28251
28254-54380
Pinion, Starter Drive
[01.1996 -] 1N..NP90 |
28254-54380 |
— | ||
|
28252
|
28252
28254-64130
Pinion, Starter Drive
[01.1996 -] 1N..NP90 |
28254-64130 |
— | ||
|
9009904448
|
9009904448
90099-04448
Bolt, Starter
|
90099-04448 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9011910327
|
9011910327
90119-10327 New Genuine Part |
90119-10327 |
US $4.51 |
||
|
9011910466
|
9011910466
90119-10466
Bolt(For Transaxle & Engine Setting)
|
90119-10466 |
— | ||
| replacement | |||||
|
9011910466
|
9011910466
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.29 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
