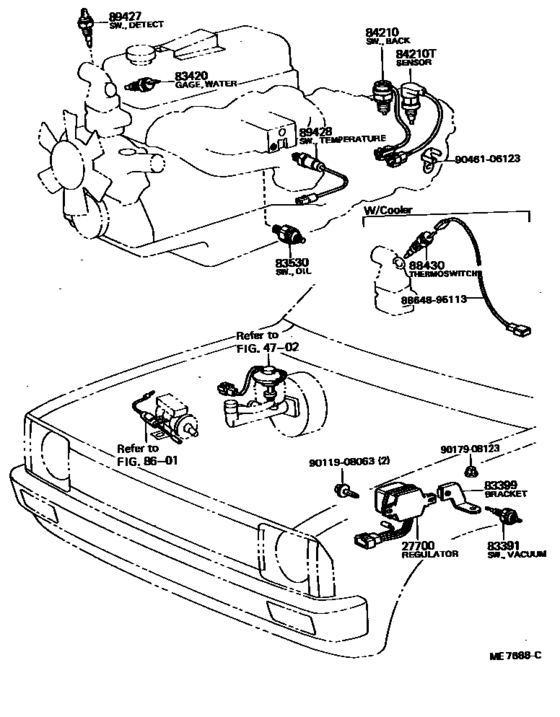

Switch & Relay & Computer ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- RK111
- body
- T1
- ENGINE
- 5R
- From
- 01.1982
- To
- 03.1986
- Vehicle Model
- STOUT
- Loading Capacity
- 20T
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-13050
Regulator Assy, Generator
[08.1981 - 03.1986] 5R..RK11# |
27700-13050 |
— | ||
|
83420
|
83420
83420-16010
Gage Assy, Water Temperature Sender
[12.1979 - 03.1986] RK11# DENSO |
83420-16010 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 03.1986] RK11# DENSO |
83420-20020 |
from US $30.54 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[12.1979 - 03.1986] RK11# YAZAKI |
83420-20020 |
from US $30.54 |
||
|
83530
|
83530
83530-14010
Switch Assy, Oil Pressure (For Engine)
[08.1981 - 02.1985] RK11# |
83530-14010 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[08.1981 - 02.1985] RK11# |
83530-28030 |
from US $26.05 |
||
|
83530
|
83530
83530-14030
Switch Assy, Oil Pressure (For Engine)
[02.1985 - 03.1986] RK111 |
83530-14030 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-28030 Switch Assy, Oil Pressure (For Engine)[02.1985 - 03.1986] RK111 |
83530-28030 |
from US $26.05 |
||
|
84210
|
84210
84210-25020 Switch Assy, Back-Up LampBACK-UP LAMP [03.1979 - 03.1986] RK11# |
84210-25020 |
US $41.35 |
||
|
88430
|
88430
88430-96440
Thermoswitch Assy, Air Conditioner
[01.1982 - 03.1986] RK111 |
88430-96440 |
— | ||
| replacement | |||||
|
88430
|
88430
89428-60040
Switch, Temperature Detect, No.2
[01.1982 - 03.1986] RK111 |
89428-60040 |
— | ||
|
8864895113
|
8864895113
88648-95113
Wiring, Cooler, No.1
|
88648-95113 |
— | ||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9046106123
|
9046106123
90461-06123 New Genuine Part |
90461-06123 |
US $3.35 |
||
