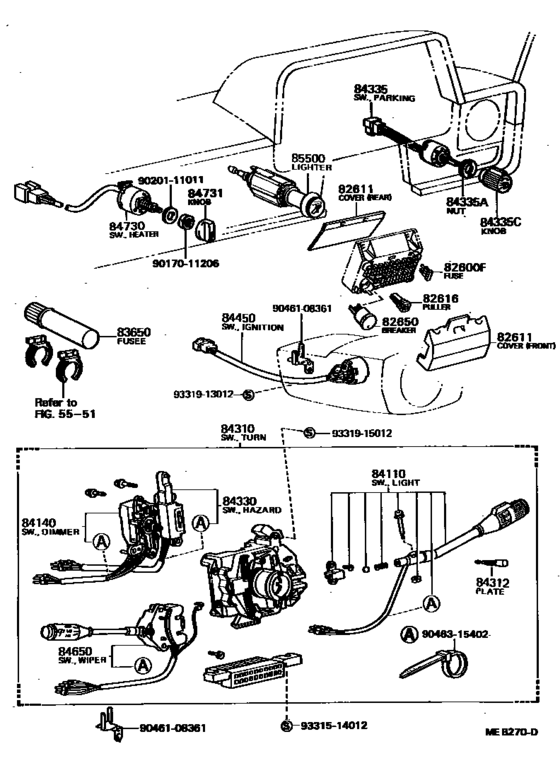

Switch & Relay & Computer ([01.1982 - ] (8201- )) Diagram Toyota STOUT
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- RK111
- body
- T1
- ENGINE
- 5R
- From
- 01.1982
- To
- 03.1986
- Vehicle Model
- STOUT
- Loading Capacity
- 20T
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-09002 Fusible Link[01.1982 - 03.1986] RK111 １０Ａ,10A |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[01.1982 - 03.1986] RK111 １５Ａ,15A |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[01.1982 - 03.1986] RK111 ２０Ａ,20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[01.1982 - 03.1986] RK111 ７．５Ａ,7.5A |
90982-09005 |
from US $1.03 |
||
|
82611
|
82611
82611-89108
Cover, Fuse Block
[01.1982 - 03.1986] RK111 FR |
82611-89108 |
— | ||
|
82611
|
82611
82611-89109
Cover, Fuse Block
[01.1982 - 03.1986] RK111 RR |
82611-89109 |
— | ||
|
82616
|
82616
82616-12010 Lever, Fuse[01.1982 - 03.1986] RK111 |
82616-12010 |
from US $3.04 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[01.1982 - 03.1986] RK111 ２０Ａ |
82650-35010 |
US $18 |
||
|
83650
|
83650
90986-01003
Fusee
[03.1979 - 03.1986] RK11# |
90986-01003 |
— | ||
|
84110
|
84110
84112-39135 Switch Assy, Light Control, No.1[01.1982 - 03.1986] RK111 |
84112-39135 |
US $69.89 |
||
| replacement | |||||
|
84110
|
84110
84112-19245
Switch Assy, Light Control, No.1
[01.1982 - 03.1986] RK111 |
84112-19245 |
— | ||
|
84140
|
84140
84140-39055 Switch Assy, Headlamp Dimmer[01.1982 - 03.1986] RK111 |
84140-39055 |
US $65.96 |
||
| replacement | |||||
|
84140
|
84140
84140-69065
Switch Assy, Headlamp Dimmer
[01.1982 - 03.1986] RK111 |
84140-69065 |
— | ||
|
84310
|
84310
84310-35120 Switch Assy, Turn Signal[01.1982 - 03.1986] RK111 |
84310-35120 |
US $243.15 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[03.1979 - 03.1986] RK11# |
84312-20011 |
from US $5.01 |
||
|
84330
|
84330
84332-39115 Switch Assy, Hazard Warning Signal[01.1982 - 03.1986] RK111 |
84332-39115 |
US $61.01 |
||
| replacement | |||||
|
84330
|
84330
84332-29195 Switch Assy, Hazard Warning Signal[01.1982 - 03.1986] RK111 |
84332-29195 |
US $60.13 |
||
|
84335
|
84335
84332-89108 Switch Assy, Parking Lamp[03.1979 - 03.1986] RK11# |
84332-89108 |
US $46.45 |
||
|
84335A
|
84335A
90170-11003
Nut, Choke
[03.1979 - 03.1986] RK11# |
90170-11003 |
— | ||
|
84335C
|
84335C
84331-89107 Knob, Parking Lamp Switch[08.1980 - 03.1986] RK11# |
84331-89107 |
US $8.88 |
||
|
84450
|
84450
84450-14021
Switch Assy, Ignition Or Starter
[03.1979 - 03.1986] RK11# |
84450-14021 |
— | ||
|
84650
|
84650
84652-39165 Switch Assy, Windshield Wiper[01.1982 - 03.1986] RK111 |
84652-39165 |
US $106.29 |
||
| replacement | |||||
|
84650
|
84650
84652-19325 Switch Assy, Windshield Wiper[01.1982 - 03.1986] RK111 |
84652-19325 |
US $101.92 |
||
|
84730
|
84730
84732-89106
Switch Assy, Heater Blower
[01.1982 - 03.1986] RK111 |
84732-89106 |
— | ||
|
84730
|
84730
84732-89107
Switch Assy, Heater Blower
[01.1982 - 03.1986] RK111 W/COOLER |
84732-89107 |
— | ||
|
84731
|
84731
84731-12010 Knob, Heater Blower Switch[01.1982 - 03.1986] RK111 |
84731-12010 |
from US $6.81 |
||
|
85500
|
85500
85500-30340
Lighter Assy, Cigarette (12V)
[08.1980 - 03.1986] RK11# |
85500-30340 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-16060 Lighter Assy, Cigarette[08.1980 - 03.1986] RK11# |
85500-16060 |
from US $37.30 |
||
|
9017011206
|
9017011206
90170-11206 Nut, Heater Blower Switch |
90170-11206 |
US $1.40 |
||
|
9020111011
|
9020111011
90201-11011 WASHER |
90201-11011 |
US $1.31 |
||
|
9046108361
|
9046108361
90461-08361 New Genuine Part |
90461-08361 |
US $3.93 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9331913012
|
9331913012
93319-13012 New Genuine Part |
93319-13012 |
US $1.75 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
