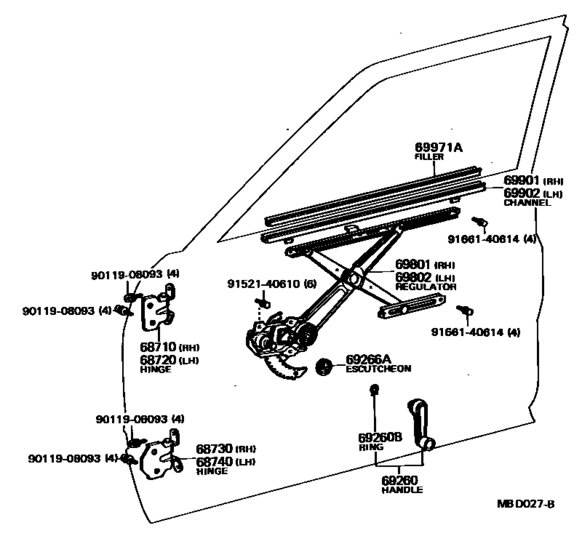

Front Door Window Regulator & Hinge ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-14020
Hinge Assy, Front Door, Upper Rh
[03.1979 - 04.1988] RK110 |
68710-14020 |
— | ||
|
68720
|
68720
68720-14020
Hinge Assy, Front Door, Upper Lh
[03.1979 - 04.1988] RK110 |
68720-14020 |
— | ||
|
68730
|
68730
68730-14020
Hinge Assy, Front Door, Lower Rh
[03.1979 - 04.1988] RK110 |
68730-14020 |
— | ||
|
68740
|
68740
68740-14020
Hinge Assy, Front Door, Lower Lh
[03.1979 - 04.1988] RK110 |
68740-14020 |
— | ||
|
69260
|
69260
69260-10040-04
Handle Assy, Front Door Window Regulator
[03.1979 - 04.1988] RK110 BLUE,BLUE |
69260-10040-04 |
— | ||
|
69260
|
69260
69260-10040-05 Handle Assy, Front Door Window Regulator[03.1979 - 04.1988] RK110 BEIGE,BEIGE |
69260-10040-05 |
US $20.46 |
||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[03.1979 - 04.1988] RK110 |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[03.1979 - 04.1988] RK110 |
90520-01274 |
from US $1.01 |
||
|
69266A
|
69266A
69266-22010
Escutcheon, Door Regulator Handle(For Front Door)
[03.1979 - 04.1988] RK110 |
69266-22010 |
— | ||
| replacement | |||||
|
69266A
|
69266A
69266-22010-08 Escutcheon, Window Regulator Handle (CLEAR)[03.1979 - 04.1988] RK110 |
69266-22010-08 |
from US $1.07 |
||
|
69266A
|
69266A
69266-22010-08 Escutcheon, Window Regulator Handle (CLEAR)[04.1988 - 07.1989] YK110 NATURAL WHITE,TRIM4#,8# |
69266-22010-08 |
from US $1.07 |
||
|
69266A
|
69266A
69272-30010-08 Escutcheon, Door Regulator Handle(For Front Door)[07.1989 - 02.2000] YK110 NATURAL WHITE,TRIM4#,8# |
69272-30010-08 |
US $2.24 |
||
|
69801
|
69801
69801-89105
Regulator Sub-Assy, Front Door Window, Rh
[03.1979 - 04.1988] RK110..GEN |
69801-89105 |
— | ||
|
69801
|
69801
69801-89106
Regulator Sub-Assy, Front Door Window, Rh
[04.1988 - 08.1993] YK110..SA; YK110..GEN W(FRONT DOOR VENTILATOR WINDOW) |
69801-89106 |
— | ||
|
69802
|
69802
69802-89105
Regulator Sub-Assy, Front Door Window, Lh
[03.1979 - 04.1988] RK110..GEN |
69802-89105 |
— | ||
|
69802
|
69802
69802-89106
Regulator Sub-Assy, Front Door Window, Lh
[04.1988 - 08.1993] YK110..SA; YK110..GEN W(FRONT DOOR VENTILATOR WINDOW) |
69802-89106 |
— | ||
|
69901
|
69901
69901-89105
Channel Sub-Assy, Front Door Glass, Rh
[03.1979 - 04.1988] RK110..GEN |
69901-89105 |
— | ||
|
69901
|
69901
69901-89106
Channel Sub-Assy, Front Door Glass, Rh
[04.1988 - 08.1993] YK110..SA; YK110..GEN W(FRONT DOOR VENTILATOR WINDOW) |
69901-89106 |
— | ||
|
69902
|
69902
69901-89105
Channel Sub-Assy, Front Door Glass, Rh
[03.1979 - 04.1988] RK110..GEN |
69901-89105 |
— | ||
|
69902
|
69902
69901-89106
Channel Sub-Assy, Front Door Glass, Rh
[04.1988 - 08.1993] YK110..SA; YK110..GEN W(FRONT DOOR VENTILATOR WINDOW) |
69901-89106 |
— | ||
|
69971A
|
69971A
68173-22010 Weatherstrip, Front Door Glass Channel[04.1988 - 02.2000] YK110..T1..5F;YK110..(4F,4H)..GEN W(FRONT DOOR VENTILATOR WINDOW) |
68173-22010 |
US $9.46 |
||
| replacement | |||||
|
69971A
|
69971A
69971-90K00 Filler, Front Door Glass Channel[04.1988 - 02.2000] YK110..T1..5F;YK110..(4F,4H)..GEN W(FRONT DOOR VENTILATOR WINDOW) |
69971-90K00 |
from US $8.81 |
||
|
69971A
|
69971A
69971-95110
Filler, Front Door Glass Channel
[03.1979 - 04.1988] RK110..GEN |
69971-95110 |
— | ||
| replacement | |||||
|
69971A
|
69971A
69971-90K00 Filler, Front Door Glass Channel[03.1979 - 04.1988] RK110..GEN |
69971-90K00 |
from US $8.81 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9152140610
|
9152140610
91521-40610
New Genuine Part
|
91521-40610 |
— | ||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
