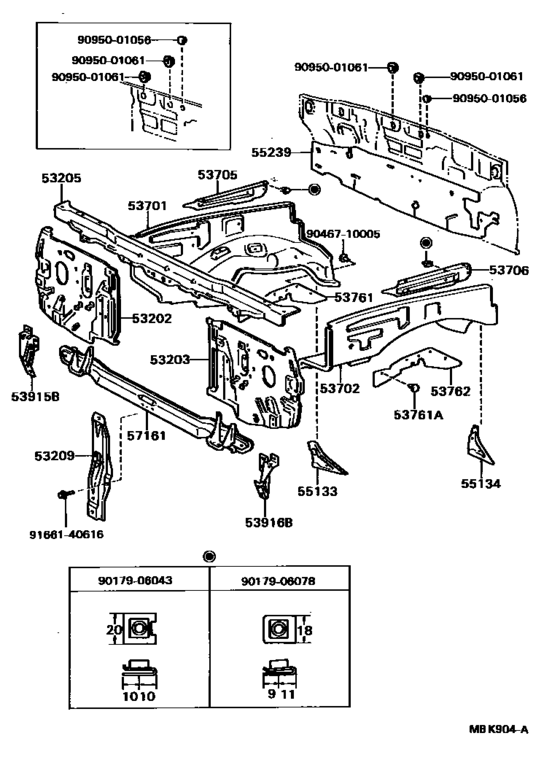

Front Fender Apron & Dash Panel ([09.1986 - ] (8609- )) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-92300 Support Sub-Assy, Radiator, RhRADIATOR, RH [08.1983 - 04.1988] RK110..LHD..T1 W/AIR CONDITIONER |
53202-92300 |
US $183.46 |
||
|
53202
|
53202
53202-95121
Support Sub-Assy, Radiator, Rh
[08.1981 - 04.1988] RK110..T1 |
53202-95121 |
— | ||
|
53203
|
53203
53203-95128 Support Sub-Assy, Radiator, LhRADIATOR, LH [08.1981 - 04.1988] RK110..T1 |
53203-95128 |
US $199.47 |
||
|
53205
|
53205
53205-92300 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [09.1986 - 02.2000] YK110 |
53205-92300 |
US $147.06 |
||
|
53209
|
53209
53217-95110
Brace Sub-Assy, Hood Lock
[03.1979 - 04.1988] RK110 |
53217-95110 |
— | ||
|
53701
|
53701
53701-92300 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [04.1988 - 08.1993] YK110..SA; YK110..GEN W(FENDER LINER) |
53701-92300 |
US $465.92 |
||
|
53701
|
53701
53701-92301 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [09.1986 - 08.1993] YK110..GEN |
53701-92301 |
US $463.01 |
||
| replacement | |||||
|
53701
|
53701
53701-92300 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [09.1986 - 08.1993] YK110..GEN |
53701-92300 |
US $465.92 |
||
|
53701
|
53701
53701-92302 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [04.1988 - 08.1993] YK110..LHD W(AIR CONDITIONER) |
53701-92302 |
US $463.01 |
||
|
53701
|
53701
53701-92303 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [04.1988 - 08.1993] YK110..LHD W(FENDER LINER & AIR CONDITIONER) |
53701-92303 |
US $463.01 |
||
|
53702
|
53702
53702-92306 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [09.1986 - 08.1993] YK110..LHD |
53702-92306 |
US $463.01 |
||
| replacement | |||||
|
53702
|
53702
53702-92307 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [09.1986 - 08.1993] YK110..LHD |
53702-92307 |
US $465.92 |
||
|
53702
|
53702
53702-92307 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [04.1988 - 08.1993] YK110..LHD W(FENDER LINER) |
53702-92307 |
US $465.92 |
||
|
53705
|
53705
53745-95111 Reinforcement Sub-Assy, Front Fender Apron, Rear RhFRONT FENDER APRON, REAR RH [01.1982 - 04.1988] RK110 |
53745-95111 |
US $23.73 |
||
|
53706
|
53706
53746-95112 Reinforcement Sub-Assy, Front Fender Apron, Rear LhFRONT FENDER APRON, REAR LH [01.1982 - 04.1988] RK110 |
53746-95112 |
US $23.73 |
||
|
53761
|
53761
53736-35060 Mudguard, RhRH [12.1991 - 02.2000] YK110 |
53736-35060 |
US $25.19 |
||
|
53761
|
53761
53736-95111 Mudguard, RhRH [03.1979 - 04.1988] RK110 |
53736-95111 |
US $26.64 |
||
| replacement | |||||
|
53761
|
53761
53736-35060 Mudguard, RhRH [03.1979 - 04.1988] RK110 |
53736-35060 |
US $25.19 |
||
|
53761A
|
53761A
90467-10005-01 Clip(For Front Fender Apron Seal)[03.1979 - 04.1988] RK110 BLACK,BLACK |
90467-10005-01 |
US $3.36 |
||
|
53762
|
53762
53737-35030 Mudguard, LhLH [12.1991 - 02.2000] YK110 |
53737-35030 |
US $21.40 |
||
|
53762
|
53762
53737-92300 Mudguard, LhLH [08.1983 - 04.1988] RK110 |
53737-92300 |
US $22.13 |
||
| replacement | |||||
|
53762
|
53762
53737-35030 Mudguard, LhLH [08.1983 - 04.1988] RK110 |
53737-35030 |
US $21.40 |
||
|
53915B
|
53915B
53915-95110
Brace, Valance Panel To Radiator Support, Rh
[03.1979 - 04.1988] RK110 |
53915-95110 |
— | ||
|
53916B
|
53916B
53916-95110
Brace, Valance Panel To Radiator Support, Lh
[03.1979 - 04.1988] RK110 |
53916-95110 |
— | ||
|
55133
|
55133
55133-89101 Plate, Front Fender Apron Set, Lower Rh[03.1979 - 04.1988] RK110 |
55133-89101 |
US $18.05 |
||
|
55134
|
55134
55134-89101 Plate, Front Fender Apron Set, Lower Lh[03.1979 - 04.1988] RK110 |
55134-89101 |
US $18.05 |
||
|
55239
|
55239
55210-92309
Silencer, Steering Column Hole Cover
[09.1986 - 02.2000] YK110..LHD |
55210-92309 |
— | ||
|
57161
|
57161
57104-95112 Crossmember, FrontFRONT [02.1981 - 04.1988] RK110..T1 |
57104-95112 |
US $206.75 |
||
|
9017906043
|
9017906043
90179-06043 New Genuine Part |
90179-06043 |
US $6.55 |
||
|
9017906078
|
9017906078
90179-06078 New Genuine Part |
90179-06078 |
US $1.05 |
||
|
9046710005
|
9046710005
90467-10005
Retainer(For Mudguard)
|
90467-10005 |
— | ||
| replacements | |||||
|
9046710005
|
9046710005
90467-10005-E0 Clip (For Roof Side Trim Garnish) |
90467-10005-E0 |
US $3.06 |
||
|
9046710005
|
9046710005
90467-10005-01 Clip(For Front Fender Apron Seal) |
90467-10005-01 |
US $3.36 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
