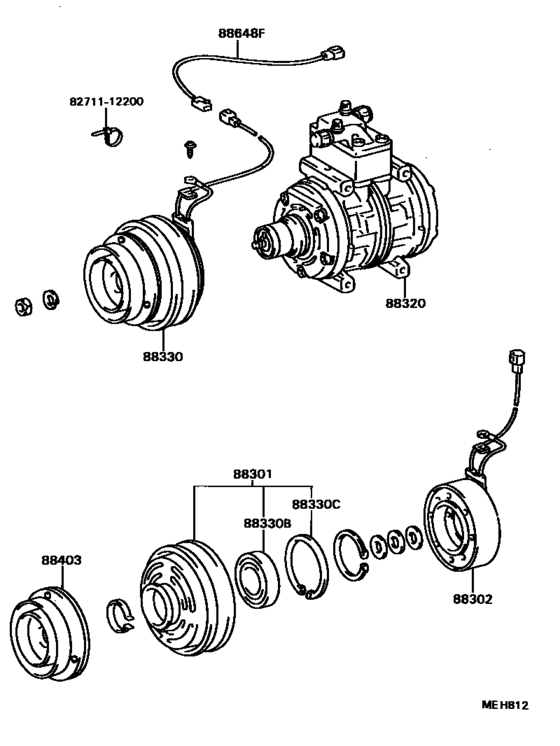

Heating & Air Conditioning - Compressor ([09.1986 - ] (8609- )GEN) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-22030
Rotor Sub-Assy, Magnet Clutch
[09.1986 - 02.2000] YK110..GEN |
88412-22030 |
— | ||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[06.1981 - 02.2000] RK110,YK110..GEN |
88411-14050 |
— | ||
|
88320
|
88320
88320-35110
Compressor Assy, Cooler
[09.1986 - 02.2000] YK110..GEN |
88320-35110 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-35H90
Compressor Assy, Cooler
[09.1986 - 02.2000] YK110..GEN |
88320-35H90 |
— | ||
|
88330
|
88330
88410-22080 Clutch Assy, Magnet[09.1986 - 02.2000] YK110..GEN |
88410-22080 |
US $551.82 |
||
| replacement | |||||
|
88330
|
88330
88410-36390
Clutch Assy, Magnet
[09.1986 - 02.2000] YK110..GEN |
88410-36390 |
— | ||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[06.1981 - 02.2000] RK110,YK110..GEN |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07114 Ring, Snap (For Magnet Clutch)[06.1981 - 02.2000] RK110,YK110..GEN |
90099-07114 |
from US $1.21 |
||
|
88403
|
88403
88403-14030
Hub Sub-Assy, Magnet Clutch
[06.1981 - 02.2000] RK110,YK110..GEN |
88403-14030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[06.1981 - 02.2000] RK110,YK110..GEN |
88403-12030 |
— | ||
|
88648F
|
88648F
88648-89107
Wire, Magnet Clutch
[01.1982 - 02.2000] RK110,YK110..GEN |
88648-89107 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
