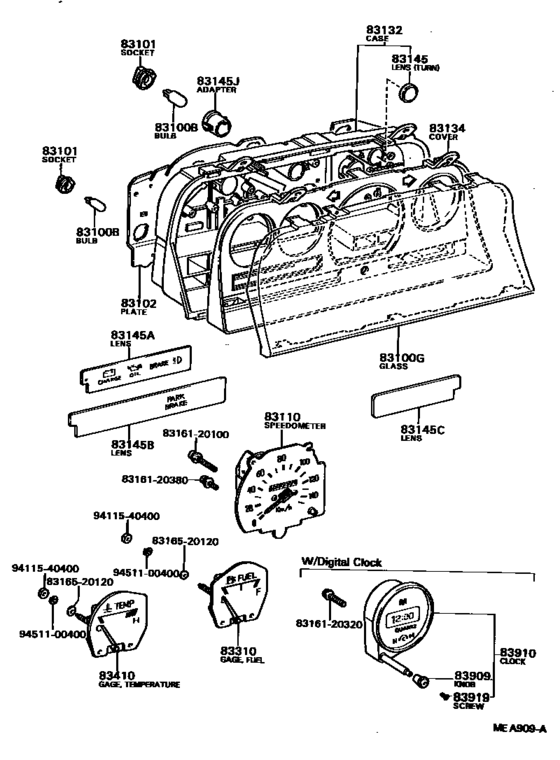

Meter ([08.1981 - ] (8108- )) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[04.1988 - 02.2000] YK110 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[04.1988 - 02.2000] YK110 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-89251
Glass, Combination Meter
[08.1981 - 04.1988] RK110 |
83138-89251 |
— | ||
|
83100G
|
83100G
83138-89253
Glass, Combination Meter
[08.1981 - 04.1988] RK110..GEN,SA W/CLOCK |
83138-89253 |
— | ||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[04.1988 - 02.2000] YK110 |
83101-20040 |
from US $1.70 |
||
|
83102
|
83102
83247-92300 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [04.1988 - 02.2000] YK110 |
83247-92300 |
US $59.84 |
||
|
83110
|
83110
83110-92302 Speedometer Assy[04.1988 - 08.1993] YK110 |
83110-92302 |
US $256.26 |
||
| replacement | |||||
|
83110
|
83110
83110-3D020 Speedometer Assy[04.1988 - 08.1993] YK110 |
83110-3D020 |
US $260.62 |
||
|
83110
|
83110
83110-92303 Speedometer Assy[04.1988 - 02.2000] YK110..LHD..IV;YK110..5F..175;YK110..LHD..15T;YK110..RHD..GEN;YK110..LHD..TW..CBU MILE & KM |
83110-92303 |
US $260.62 |
||
|
83132
|
83132
83132-89251
Case, Combination Meter
[08.1981 - 04.1988] RK110 |
83132-89251 |
— | ||
|
83134
|
83134
83134-89200
Cover, Combination Meter, No.1
[08.1981 - 04.1988] RK110..GEN,SA W/CLOCK |
83134-89200 |
— | ||
|
83134
|
83134
83134-89201
Cover, Combination Meter, No.1
[08.1981 - 04.1988] RK110 |
83134-89201 |
— | ||
|
83145
|
83145
83145-89245
Lens, Meter, No.1
[08.1981 - 03.1988] RK110 TURN |
83145-89245 |
— | ||
|
83145
|
83145
83145-89320
Lens, Meter, No.1
[04.1988 - 02.2000] YK110 |
83145-89320 |
— | ||
|
83145A
|
83145A
83145-89229
Lens, Meter, No.2
[08.1981 - 04.1988] RK110..GEN,SA OIL |
83145-89229 |
— | ||
|
83145B
|
83145B
83145-89233 Lens, Meter, No.3[08.1981 - 04.1988] RK110..GEN,SA BLIND |
83145-89233 |
US $8.74 |
||
|
83145C
|
83145C
83145-89230 Lens, Meter, No.4[08.1981 - 04.1988] RK110 BLIND |
83145-89230 |
US $6.12 |
||
|
83145J
|
83145J
83145-16020 Adapter, Meter Bulb Socket[08.1981 - 04.1988] RK110 |
83145-16020 |
US $8.59 |
||
|
83310
|
83310
83243-89211
Gage Assy, Fuel Receiver
[08.1981 - 04.1988] RK110..GEN,SA |
83243-89211 |
— | ||
|
83410
|
83410
83244-89211
Gage Assy, Water Temperature Receiver
[08.1981 - 04.1988] RK110..GEN,SA |
83244-89211 |
— | ||
|
83909
|
83909
83909-12230
Knob, Clock
[08.1981 - 04.1988] RK110..GEN,SA |
83909-12230 |
— | ||
|
83910
|
83910
83910-89104
Clock Assy
[08.1981 - 04.1988] RK110..GEN,SA DIGITAL |
83910-89104 |
— | ||
|
83919
|
83919
83919-12230 Screw, Clock[08.1981 - 04.1988] RK110..GEN,SA |
83919-12230 |
US $1.92 |
||
|
8316120100
|
8316120100
83161-20100 Case, Combination Meter Mirror, No.1 |
83161-20100 |
US $1.69 |
||
|
8316120320
|
8316120320
83161-20320 Case, Combination Meter Mirror, No.1 |
83161-20320 |
US $1.02 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
