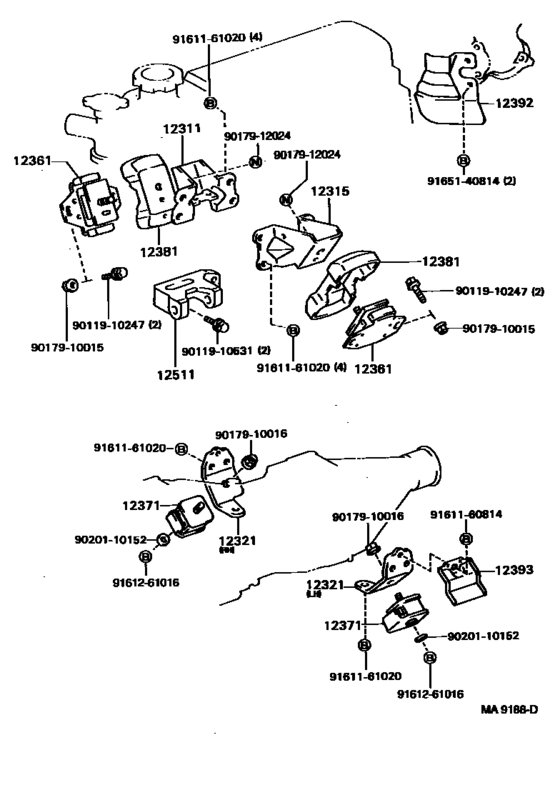

Mounting ([09.1986 - ] (8609- )) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-71010 Bracket, Engine Mounting, Front No.1 Rh[09.1986 - 02.2000] 4Y..YK110 |
12311-71010 |
US $34.51 |
||
|
12315
|
12315
12315-71010 Bracket, Engine Mounting, Front No.1 Lh[09.1986 - 02.2000] 4Y..YK110 |
12315-71010 |
from US $40.48 |
||
|
12321
|
12321
12321-73020 Bracket, Engine Mounting, Rear, No.1ENGINE MOUNTING, REAR, NO.1 [04.1988 - 02.2000] 4Y..YK110 RH |
12321-73020 |
US $20.82 |
||
|
12321
|
12321
12322-73010 Bracket, Engine Mounting, Rear, No.1ENGINE MOUNTING, REAR, NO.1 [04.1988 - 02.2000] 4Y..YK110 LH |
12322-73010 |
US $20.82 |
||
|
12361
|
12361
12361-35050 Insulator, Engine Mounting, Front[09.1986 - 02.2000] 4Y..YK110 |
12361-35050 |
from US $59.23 |
||
|
12371
|
12371
12371-40020 Insulator, Engine Mounting, Rear No.1ENGINE MOUNTING, REAR NO.1 [09.1986 - 02.2000] 4Y..YK110 |
12371-40020 |
US $48.34 |
||
| replacement | |||||
|
12371
|
12371
12371-49015
Insulator, Engine Mounting, Rear No.1
[09.1986 - 02.2000] 4Y..YK110 |
12371-49015 |
— | ||
|
12381
|
12381
12381-73010 Stabilizer, Engine Mounting[09.1986 - 02.2000] 4Y..YK110 |
12381-73010 |
US $25.19 |
||
|
12392
|
12392
12391-72010 Insulator, Engine Mounting Heat, Front Lh[09.1986 - 02.2000] 4Y..YK110 |
12391-72010 |
US $27.43 |
||
|
12393
|
12393
12391-73010 Insulator, Engine Mounting Heat, FrontENGINE MOUNTING HEAT, FRONT [09.1986 - 02.2000] 4Y..YK110 |
12391-73010 |
US $19.95 |
||
|
12511
|
12511
12511-71010 Bracket, Alternator, No.1[09.1986 - 02.2000] 4Y..YK110 |
12511-71010 |
US $45.86 |
||
|
9011910247
|
9011910247
90119-10247 BOLT |
90119-10247 |
US $3.20 |
||
|
9011910531
|
9011910531
90119-10531 BOLT WWASHER |
90119-10531 |
from US $1.83 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.09 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.17 |
||
|
9020110152
|
9020110152
90201-10152 WASHER |
90201-10152 |
from US $1.40 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161261016
|
9161261016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
