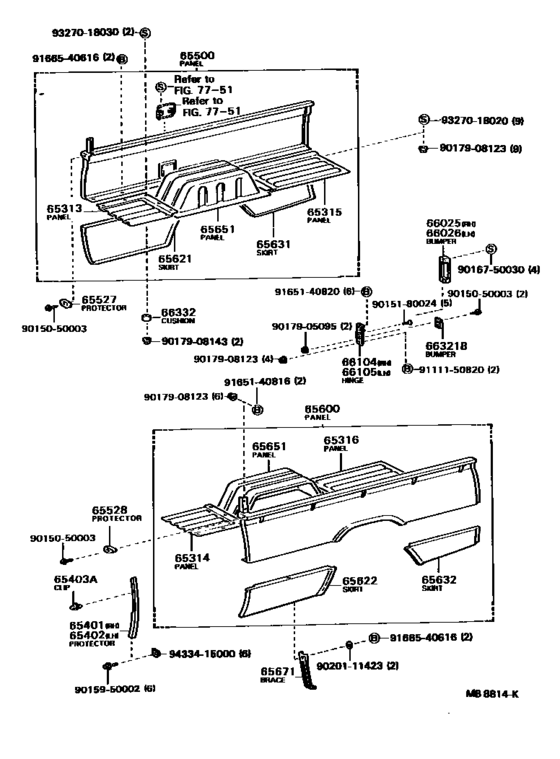

Rear Body Side Panel ([03.1979 - ] (7903- )T1) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65313
|
65313
65313-95115 Panel, Floor Front Corner, RhFLOOR FRONT CORNER, RH [03.1979 - 04.1988] RK110..T1 |
65313-95115 |
US $85.90 |
||
|
65314
|
65314
65314-95115 Panel, Floor Front Corner, LhFLOOR FRONT CORNER, LH [03.1979 - 04.1988] RK110..T1 |
65314-95115 |
US $85.90 |
||
|
65315
|
65315
65315-95113
Panel, Floor Rear Corner, Rh
[03.1979 - 04.1988] RK110 |
65315-95113 |
— | ||
|
65316
|
65316
65316-95113 Panel, Floor Rear Corner, LhFLOOR REAR CORNER, LH [03.1979 - 04.1988] RK110 |
65316-95113 |
US $113.57 |
||
|
65401
|
65401
65481-35901 Protector, Front Corner, RhFRONT CORNER, RH [11.1983 - 04.1988] RK110 |
65481-35901 |
US $182 |
||
|
65402
|
65402
65482-35901 Protector, Front Corner, LhFRONT CORNER, LH [11.1983 - 04.1988] RK110 |
65482-35901 |
US $182 |
||
|
65403A
|
65403A
65487-95110 Clip, Corner ProtectorCORNER PROTECTOR [03.1979 - 04.1988] RK110 |
65487-95110 |
US $3.93 |
||
|
65500
|
65500
65500-95146 Panel Assy, Rear Body Side, RhREAR BODY SIDE, RH [03.1979 - 04.1988] RK110..T1..(ARL,GEN) |
65500-95146 |
US $1,126.94 |
||
|
65527
|
65527
65527-95110
Protector, Top Rail Side, Rh
[03.1979 - 04.1988] RK110 |
65527-95110 |
— | ||
|
65528
|
65528
65528-95110
Protector, Top Rail Side, Lh
[03.1979 - 04.1988] RK110 |
65528-95110 |
— | ||
|
65600
|
65600
65600-95144 Panel Assy, Rear Body Side, LhREAR BODY SIDE, LH [03.1979 - 04.1988] RK110..T1 |
65600-95144 |
US $1,126.94 |
||
|
65621
|
65621
65621-95123 Skirt, Side Panel, Front RhSIDE PANEL, FRONT RH [05.1979 - 04.1988] RK110..T1 |
65621-95123 |
US $84.45 |
||
|
65622
|
65622
65622-95122 Skirt, Side Panel, Front LhSIDE PANEL, FRONT LH [05.1979 - 04.1988] RK110..T1 |
65622-95122 |
US $84.45 |
||
|
65631
|
65631
65601-95115 Skirt, Side Panel, Rear RhSIDE PANEL, REAR RH [05.1979 - 04.1988] RK110 |
65601-95115 |
US $80.08 |
||
|
65632
|
65632
65602-95117 Skirt, Side Panel, Rear, LhSIDE PANEL, REAR, LH [05.1979 - 04.1988] RK110 |
65602-95117 |
US $80.08 |
||
|
65651
|
65651
65635-95111 Panel, Wheel HouseWHEEL HOUSE [08.1979 - 04.1988] RK110..T1 RH |
65635-95111 |
US $198.02 |
||
|
65651
|
65651
65636-95111
Panel, Wheel House
[08.1979 - 04.1988] RK110..T1 LH |
65636-95111 |
— | ||
|
65671
|
65671
65671-95115
Brace, Side Panel Skirt, Front
[04.1988 - 08.1993] YK110..T1..CBU |
65671-95115 |
— | ||
|
66025
|
66025
65559-95110 Bumper Sub-Assy, Rear Body Rubber, RhREAR BODY RUBBER, RH [03.1979 - 04.1988] RK110 |
65559-95110 |
US $18.05 |
||
|
66026
|
66026
65559-95110 Bumper Sub-Assy, Rear Body Rubber, RhREAR BODY RUBBER, RH [03.1979 - 04.1988] RK110 |
65559-95110 |
US $18.05 |
||
|
66104
|
66104
66101-95112
Hinge Sub-Assy, Tail Gate, Male, Rh
[03.1979 - 04.1988] RK110 |
66101-95112 |
— | ||
|
66105
|
66105
66102-95112
Hinge Sub-Assy, Tail Gate, Male, Lh
[03.1979 - 04.1988] RK110 |
66102-95112 |
— | ||
|
66321B
|
66321B
65739-95110 Bumper, Gate RubberGATE RUBBER [03.1979 - 04.1988] RK110 |
65739-95110 |
US $8.01 |
||
|
66332
|
66332
90540-09060 Cushion, Rubber[04.1988 - 02.2000] YK110..T1..CBU LH |
90540-09060 |
from US $1.49 |
||
|
9015050003
|
9015050003
90150-50003 New Genuine Part |
90150-50003 |
US $1.75 |
||
|
9015180024
|
9015180024
90151-80024 New Genuine Part |
90151-80024 |
US $1.31 |
||
|
9015950002
|
9015950002
90159-50002 SCREW |
90159-50002 |
US $1.12 |
||
|
9016750030
|
9016750030
90167-50030 New Genuine Part |
90167-50030 |
US $1.60 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9020111423
|
9020111423
90201-11423 New Genuine Part |
90201-11423 |
US $3.20 |
||
|
9111150820
|
9111150820
91111-50820 New Genuine Part |
91111-50820 |
from US $2.91 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9327018020
|
9327018020
93270-18020
New Genuine Part
|
93270-18020 |
— | ||
|
9327018030
|
9327018030
93270-18030
New Genuine Part
|
93270-18030 |
— | ||
|
9433415000
|
9433415000
94334-15000 New Genuine Part |
94334-15000 |
US $1.02 |
||
