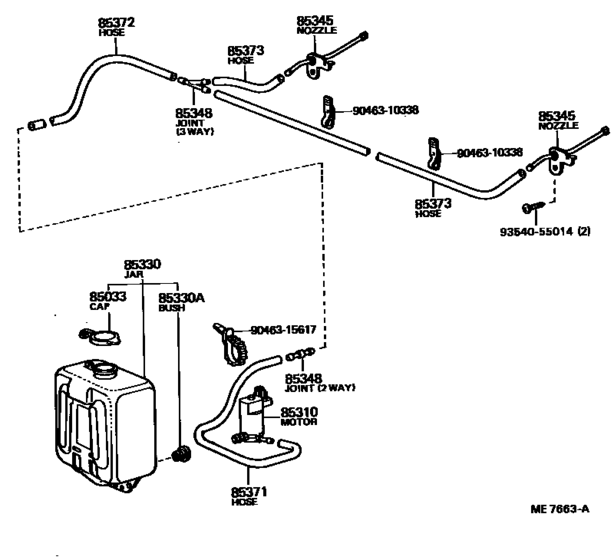

Windshield Washer ([03.1979 - ] (7903- )) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- GEN
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4F
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- LHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-30050
Cap Assy, Windshield Washer
[03.1979 - 02.2000] RK110,YK110 |
85332-30050 |
— | ||
|
85310
|
85310
85310-20100
Motor And Pump Assy, Windshield Washer
[03.1979 - 03.1987] RK110 |
85310-20100 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[03.1979 - 03.1987] RK110 |
85310-22080 |
from US $49.97 |
||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[03.1987 - 02.2000] YK110 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85330-89104
Jar Assy, Windshield Washer
[03.1979 - 04.1988] RK110 |
85330-89104 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[03.1979 - 02.2000] RK110,YK110 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[03.1979 - 02.2000] RK110,YK110 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[03.1979 - 02.2000] RK110,YK110 |
90068-32002 |
US $7.46 |
||
|
85345
|
85345
85341-89104
Nozzle, Windshield Washer
[03.1979 - 04.1988] RK110 |
85341-89104 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[01.1982 - 04.1988] RK110 3 WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[03.1979 - 03.1987] RK110 2 WAY |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[03.1979 - 03.1987] RK110 2 WAY |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1979 - 04.1988] RK110 L=450 |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1979 - 04.1988] RK110 *H,L=700 |
90446-06013 |
from US $0.70 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1979 - 04.1988] RK110 *H,L=100 |
90446-06013 |
from US $0.70 |
||
|
9046310338
|
9046310338
90463-10338
Clamp(For Hood Lock Control Cable)
|
90463-10338 |
— | ||
|
9046315617
|
9046315617
90463-15617 New Genuine Part |
90463-15617 |
US $2.18 |
||
|
9354055014
|
9354055014
93540-55014 New Genuine Part |
93540-55014 |
US $0.96 |
||
