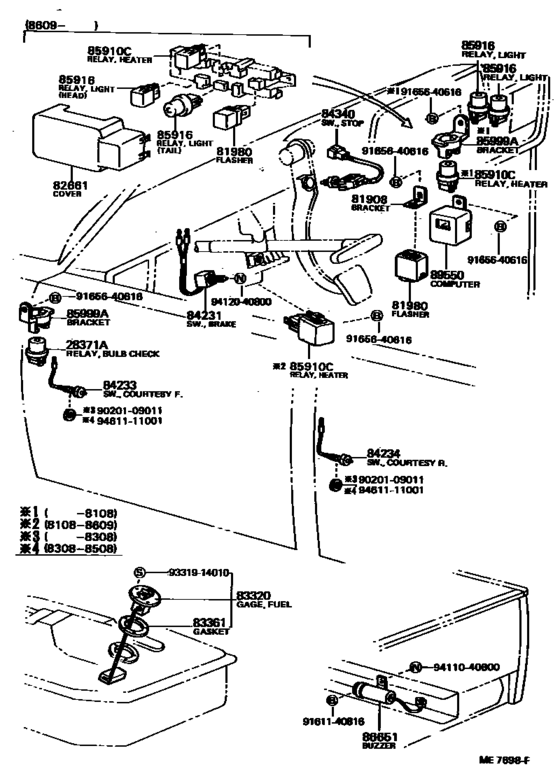

Switch & Relay & Computer ([03.1979 - ] (7903- )RHD) Diagram Toyota STOUT
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- YK110
- body
- T1
- ENGINE
- 4Y
- DESTINATION
- SA
- From
- 04.1988
- To
- 08.1993
- Gear Shift Type
- 4H
- Vehicle Model
- STOUT
- Loading Capacity
- 15T
- Driver's Position
- RHD
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[04.1986 - 04.1988] RK110 |
81980-16010 |
US $121.36 |
||
|
82661
|
82661
82661-90B05 Cover, Relay Block, No.1[09.1986 - 02.2000] YK110 |
82661-90B05 |
US $25.19 |
||
|
83320
|
83320
83320-39205 Gage Assy, Fuel SenderFUEL SENDER [03.1979 - 04.1988] RK110 |
83320-39205 |
US $58.39 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[03.1979 - 04.1988] RK110 |
83361-20030 |
from US $5.12 |
||
|
84231
|
84231
84380-35010 Switch Assy, Courtesy Lamp (For Parking Brake)[03.1979 - 04.1988] RK110 |
84380-35010 |
US $15.66 |
||
|
84233
|
84233
84231-20080
Switch Assy, Courtesy Lamp (For Front Door)
[08.1985 - 04.1988] RK110 |
84231-20080 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[08.1985 - 04.1988] RK110 |
84231-28010 |
from US $16.26 |
||
|
84233
|
84233
84231-28020 Switch, Courtesy Lamp[06.1988 - 02.2000] YK110 |
84231-28020 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-28010 Switch Assy, Courtesy Lamp[06.1988 - 02.2000] YK110 |
84231-28010 |
from US $16.26 |
||
|
84340
|
84340
84340-22072 Switch Assy, Stop Lamp[02.1982 - 04.1988] RK110 |
84340-22072 |
from US $26.36 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[09.1986 - 02.2000] YK110 |
90987-04002 |
from US $24.67 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[04.1988 - 02.2000] YK110 TAIL |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85916
|
85916
909870200483 [04.1988 - 02.2000] YK110 TAIL |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-02006 Relay[04.1988 - 02.2000] YK110 HEAD |
90987-02006 |
from US $27.28 |
||
|
89550
|
89550
89550-27040 Computer Assy, Emission Control[09.1986 - 02.2000] YK110 |
89550-27040 |
US $103.38 |
||
|
9020109011
|
9020109011
90201-09011 New Genuine Part |
90201-09011 |
US $3.52 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
