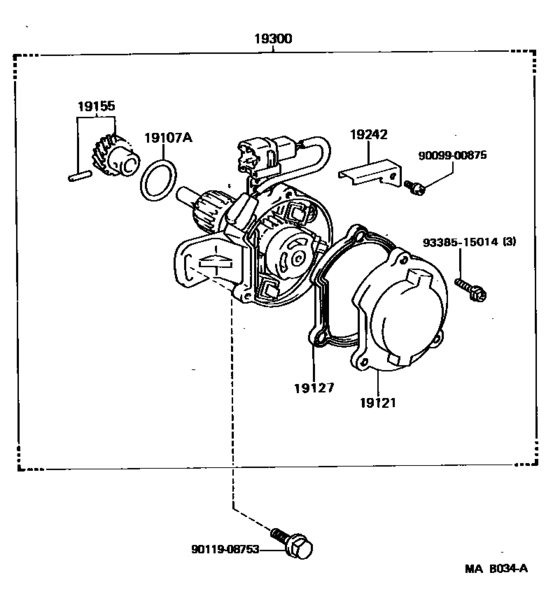

Distributor ([08.1988 - ] (8808- )7MGTE) Diagram Toyota SUPRA
- Year
- 1988 - 1993
- Sales region
- General
- Frame
- MA70
- body
- LB
- ENGINE
- 7MGTE
- TRANSMISSION
- MTM
- DESTINATION
- C
- Model
- SUPRA 70
- From
- 08.1988
- To
- 05.1993
- Gear Shift Type
- 5F
- Vehicle Model
- SUPRA
- Driver's Position
- LHD
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19107A
|
19107A
90099-14018
Ring, O, Distributor Housing
[08.1988 - 03.1991] 7MGTE..MA70 |
90099-14018 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[08.1988 - 03.1991] 7MGTE..MA70 |
90099-14088 |
from US $2.71 |
||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[03.1991 - 05.1993] 7MG#..MA70 |
90099-14088 |
from US $2.71 |
||
|
19121
|
19121
19121-42010 Cover, Dust Proof[08.1988 - 05.1993] 7MGTE..MA70 |
19121-42010 |
US $5.94 |
||
|
19127
|
19127
19127-42010 Packing, Dust Proof[08.1988 - 05.1993] 7MGTE..MA70 |
19127-42010 |
US $5.94 |
||
|
19155
|
19155
19195-42010
Gear, Spiral, Distributor
[08.1988 - 05.1993] 7MGTE..MA70 |
19195-42010 |
— | ||
|
19242
|
19242
19242-70010 Clamp, Cord[08.1988 - 05.1993] 7MGTE..MA70 |
19242-70010 |
US $14.12 |
||
|
19300
|
19300
19300-42010
Sensor Assy, Cam Position
[08.1988 - 05.1993] 7MGTE..MA70 |
19300-42010 |
— | ||
|
9009900875
|
9009900875
90099-00875
New Genuine Part
|
90099-00875 |
— | ||
|
9011908753
|
9011908753
90119-08753 Bolt, W/washer(For Repair Actuator Set) |
90119-08753 |
US $1.89 |
||
| replacement | |||||
|
9011908753
|
9011908753
90119-08770 Bolt, W/washer(For Repair Actuator Set) |
90119-08770 |
US $2.40 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.76 |
||
