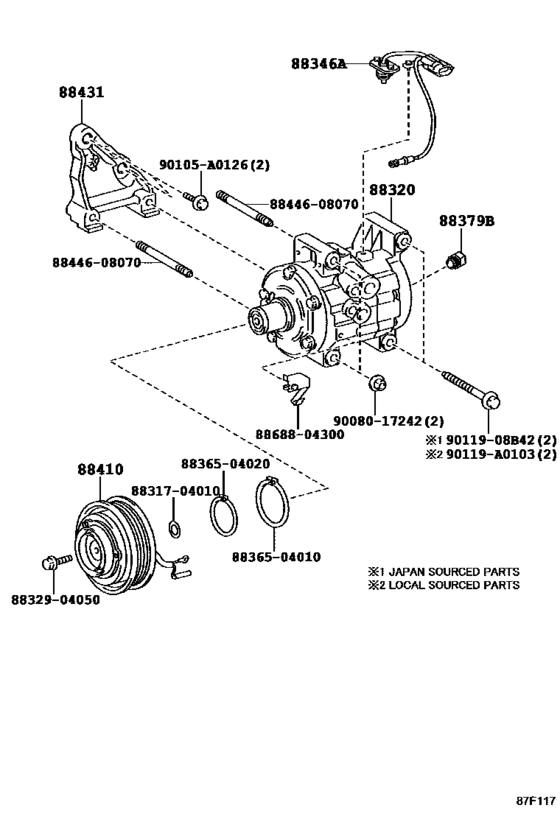

Heating & Air Conditioning - Compressor ([08.2015 - ] (1508- )GRN305,310,325,330) Diagram Toyota TACOMA
- Year
- 2015 - 2017
- Sales region
- U.S.A.
- Frame
- GRN305
- grade
- SR5
- ENGINE
- 2GRFKS
- DESTINATION
- USA
- CAB
- DCB
- From
- 08.2015
- To
- 09.2017
- Gear Shift Type
- 6F
- Vehicle Model
- TACOMA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-04070
Compressor Assy, Cooler
[08.2015 -] GRN305,310,325,330,TRN245,265 |
88320-04070 |
— | ||
|
88346A
|
88346A
88346-04020
Sensor, Compressor Pick Up
[08.2015 -] GRN305,310,325,330,TRN245,265 |
88346-04020 |
— | ||
|
88379B
|
88379B
88379-04020
Valve, Pressure Relief
[08.2015 -] GRN305,310,325,330,TRN245,265 |
88379-04020 |
— | ||
|
88410
|
88410
88410-04070
Clutch Assy, Magnet
[08.2015 -] GRN305,310,325,330,TRN245,265 |
88410-04070 |
— | ||
|
88431
|
88431
88431-04100
Bracket, Compressor Mounting, No.1
[08.2015 -] GRN305,310,325,330 |
88431-04100 |
— | ||
|
90105A0126
|
90105A0126
90105-A0126
BOLT FLANGE
|
90105-A0126 |
— | ||
|
90119A0103
|
90119A0103
90119-A0103
New Genuine Part
|
90119-A0103 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8831704010
|
8831704010
88317-04010 Spacer, Cooler Compressor |
88317-04010 |
US $3.64 |
||
|
8832904050
|
8832904050
88329-04050
Piston Sub-assy, Cooler Compressor
|
88329-04050 |
— | ||
|
8836504010
|
8836504010
88365-04010
Ring, Snap
|
88365-04010 |
— | ||
|
8836504020
|
8836504020
88365-04020 Ring, Snap |
88365-04020 |
US $3.79 |
||
|
8844608070
|
8844608070
88446-08070 Bolt, Idle Pulley |
88446-08070 |
US $2.18 |
||
|
8868804300
|
8868804300
88688-04300
Bracket, Cooler Diaphragm
|
88688-04300 |
— | ||
|
9008017242
|
9008017242
90080-17242
New Genuine Part
|
90080-17242 |
— |
