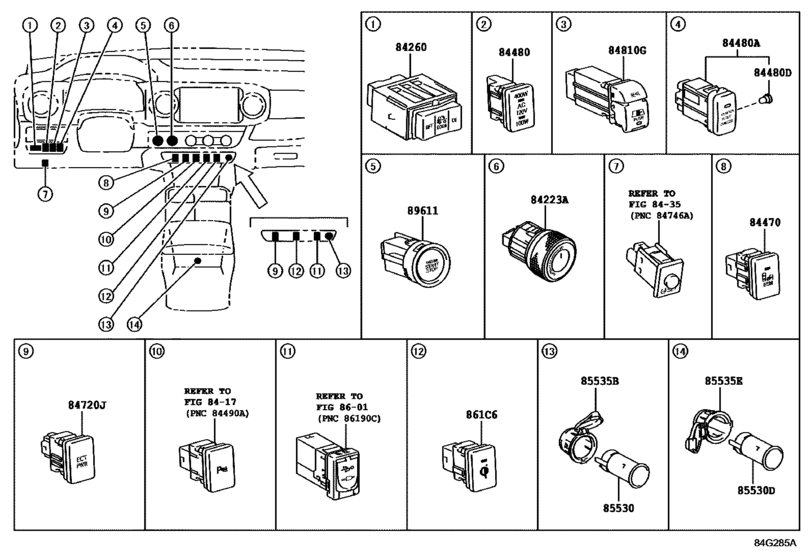

Switch & Relay & Computer ([08.2015 - ] INSTRUMENT PANEL SWITCH (1508- )) Diagram Toyota TACOMA
- Year
- 2015 - 2017
- Sales region
- U.S.A.
- Frame
- GRN305
- grade
- SR5
- ENGINE
- 2GRFKS
- DESTINATION
- USA
- CAB
- DCB
- From
- 08.2015
- To
- 09.2017
- Gear Shift Type
- 6F
- Vehicle Model
- TACOMA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
861C6
|
861C6
861C6-06011
Switch, Mobile Wireless Charger
[08.2015 -] GRN305,310,325,330 WIRELESS CHARGER-WITH |
861C6-06011 |
— | ||
|
84223A
|
84223A
84223-0C010
Switch, Transfer Position
[08.2015 -] GRN305,310,TRN245 |
84223-0C010 |
— | ||
|
84260
|
84260
84267-0C020
Switch Assy, Deck Lamp
[08.2015 -] GRN305,310,325,330,TRN265..DCB |
84267-0C020 |
— | ||
|
84470
|
84470
84470-04010
Switch Assy, Warning Canceling
[08.2015 -] GRN305,310,325,330..LIMD; GRN305,310,325,330..SR5 CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALER T); GRN305,310,325,330..SR5 BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
84470-04010 |
— | ||
|
84480
|
84480
84480-04040
Switch Assy, Main
[08.2015 -] GRN305,310,325,330..LIMD; GRN305,310,325,330..SR5 ACCESSORY CONNECTOR-POWER OUTLET SOCKET(FRONT:2 & REAR:1) |
84480-04040 |
— | ||
|
84480A
|
84480A
84480-04020
Switch Assy, Clutch Start Cancel
[08.2015 -] GRN305,TRN245..5F,6F |
84480-04020 |
— | ||
|
84480D
|
84480D
90011-01018
Bulb, Hazard Warning Signal Switch
[08.2015 -] GRN305,TRN245..5F,6F 14V 0.91W,W(SOCKET) |
90011-01018 |
— | ||
|
84810G
|
84810G
84810-0C090
Switch Assy, Back Door Power Window Regulator
[08.2016 -] GRN305,310,325,330..LIMD; GRN305,310,325,330..DCB..SR5 BACK GLASS-SLIDING TYPE(POWER,PRIVACY) |
84810-0C090 |
— | ||
|
85530
|
85530
85530-AE010 Socket Assy, Power Outlet, No.1POWER POINT [08.2015 -] GRN305,310,325,330,TRN245,265 |
85530-AE010 |
from US $26.58 |
||
|
85530D
|
85530D
85530-AE010 Socket Assy, Power Outlet, No.1POWER POINT [08.2015 -] GRN305,310,325,330,TRN245,265 |
85530-AE010 |
from US $26.58 |
||
|
85535B
|
85535B
85535-AE010
Cover, Power Outlet Socket, No.1
[08.2015 -] GRN305,310,325,330,TRN245,265 |
85535-AE010 |
— | ||
|
85535E
|
85535E
85535-0C050 Cover, Power Outlet Socket, No.1[08.2015 -] GRN305,310,325,330,TRN245,265 |
85535-0C050 |
from US $6.86 |
