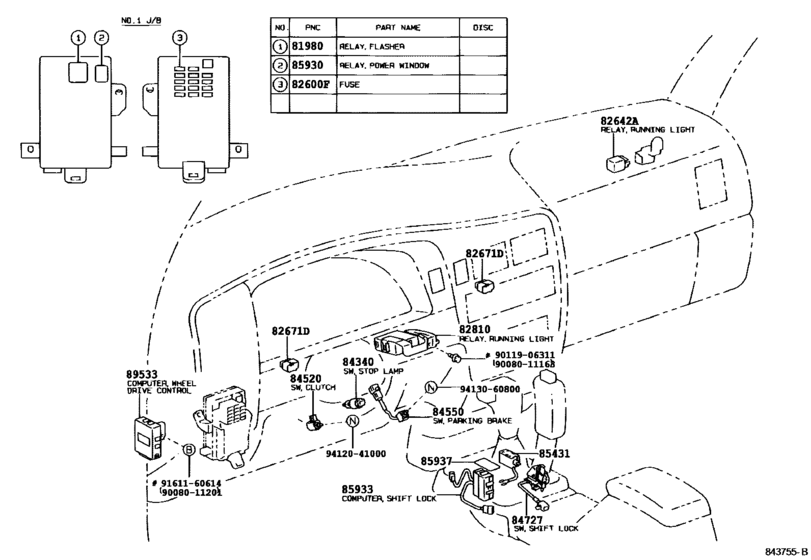

Switch & Relay & Computer ([09.2000 - 09.2004] COWL (0009-0409)) Diagram Toyota TACOMA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- VZN170
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- DCB
- From
- 09.2000
- To
- 09.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- TACOMA
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-AC030 Flasher Assy, Turn Signal[09.2000 -] RZN161,171,VZN170 |
81980-AC030 |
US $101.92 |
||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[09.2000 -] RZN161,171,VZN170 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[09.2000 -] VZN170..DCB 10A,MINI FUSE; RZN161,171,VZN170..RCB,XTR 10A,MINI FUSE,(L) |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[09.2000 -] VZN170..DCB 15A,MINI FUSE; RZN161,171,VZN170..RCB,XTR 15A,MINI FUSE,(L) |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[09.2000 -] RZN161,171,VZN170 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82642A
|
82642A
90987-02006 Relay[09.2000 -] RZN161,171,VZN170 |
90987-02006 |
from US $27.28 |
||
|
82671D
|
82671D
82671-30360 Block, Junction[09.2000 - 09.2002] RZN171..4FC;RZN161,VZN170..DCB,RCB; RZN171..W;VZN170..XTR CANADA SPEC & W(*ADD) |
82671-30360 |
US $8.04 |
||
|
82810
|
82810
82810-04011
Relay Assy, Running Light
[09.2000 -] RZN161,171,VZN170 |
82810-04011 |
— | ||
|
84340
|
84340
84340-04020 Switch Assy, Stop Lamp[09.2000 - 09.2002] RZN161,171,VZN170 |
84340-04020 |
US $18.78 |
||
|
84340
|
84340
84340-04030
Switch Assy, Stop Lamp
[09.2000 -] RZN161,171,VZN170 W(CRUISE CONTROL) |
84340-04030 |
— | ||
|
84550
|
84550
84550-34010 Switch Assy, Parking BrakePARKING BRAKE [09.2000 -] RZN161,171,VZN170 |
84550-34010 |
from US $21.13 |
||
|
84727
|
84727
84727-35090 Switch, Shift Lock Control[09.2000 - 09.2004] RZN161,171,VZN170..4FC |
84727-35090 |
from US $50.67 |
||
|
85431
|
85431
85431-35090 Solenoid, Shift Lock[09.2000 - 09.2004] RZN161,171,VZN170..4FC |
85431-35090 |
US $39.84 |
||
|
85930
|
85930
90084-98031 Relay, Ignition, No.1[09.2000 -] RZN161,171,VZN170 (L) |
90084-98031 |
US $63.48 |
||
|
85930
|
85930
90987-02012 Relay, Ignition, No.1[09.2000 -] RZN161,171,VZN170 (J) |
90987-02012 |
from US $26.99 |
||
|
85933
|
85933
85933-35150 Computer, Shift Lock Control[09.2000 - 09.2004] RZN161,171,VZN170..4FC |
85933-35150 |
US $121.36 |
||
|
85937
|
85937
85937-35010 Protector, Shift Lock Control[09.2000 - 09.2004] RZN161,171,VZN170..4FC |
85937-35010 |
US $3.06 |
||
|
89533
|
89533
89533-35060
Computer, 4 Wheel Drive Control
[09.2000 -] VZN170;RZN161,171..W W(REAR DIFFERENTIAL LOCK) |
89533-35060 |
— | ||
|
89533
|
89533
89533-35160
Computer, 4 Wheel Drive Control
[09.2000 -] VZN170 W(2-4 SELECTOR) |
89533-35160 |
— | ||
|
9008011163
|
9008011163
90080-11163
New Genuine Part
|
90080-11163 |
— | ||
|
9008011201
|
9008011201
90080-11201
New Genuine Part
|
90080-11201 |
— | ||
|
9011906311
|
9011906311
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.70 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
