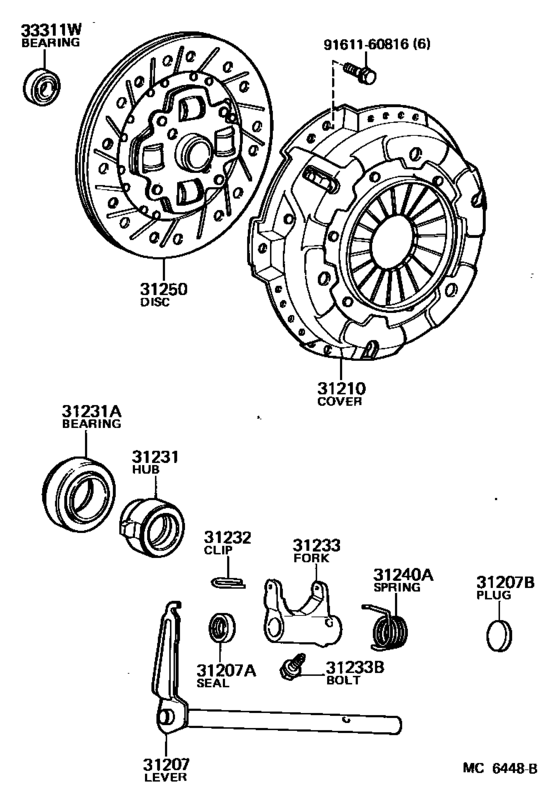

Clutch & Release Fork ([08.1979 - 04.1982] (7908-8204)MTM) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31207
|
31207
31207-16020 Lever Sub-Assy, Clutch Release ForkCLUTCH RELEASE FORK [08.1979 - 04.1982] AL1#..MTM |
31207-16020 |
US $58.39 |
||
| replacements | |||||
|
31207
|
31207
31207-16040 Lever Sub-Assy, Clutch Release ForkCLUTCH RELEASE FORK [08.1979 - 04.1982] AL1#..MTM |
31207-16040 |
US $64.21 |
||
|
31207
|
31207
31249-16010 Boot, Clutch Release Fork Shaft[08.1979 - 04.1982] AL1#..MTM |
31249-16010 |
US $5.97 |
||
|
31207A
|
31207A
90313-18001
Seal, Oil(For Clutch Release Fork Lever)
[08.1979 - 07.1982] AL1#..MTM |
90313-18001 |
— | ||
|
31207B
|
31207B
96411-12500
Plug, Tight, No.2
[08.1979 - 07.1982] AL1#..MTM |
96411-12500 |
— | ||
| replacement | |||||
|
31207B
|
31207B
96411-42500 Plug, Tight, No.1[08.1979 - 07.1982] AL1#..MTM |
96411-42500 |
from US $2.95 |
||
|
31210
|
31210
31210-12061 Cover Assy, ClutchCLUTCH [08.1979 - 10.1979] AL1#..MTM |
31210-12061 |
US $160.16 |
||
| replacement | |||||
|
31210
|
31210
31210-12064
Cover Assy, Clutch
[08.1979 - 10.1979] AL1#..MTM |
31210-12064 |
— | ||
|
31210
|
31210
31210-12062 Cover Assy, ClutchCLUTCH [10.1979 - 08.1981] AL1#..MTM |
31210-12062 |
US $161.62 |
||
| replacement | |||||
|
31210
|
31210
31210-12064
Cover Assy, Clutch
[10.1979 - 08.1981] AL1#..MTM |
31210-12064 |
— | ||
|
31231
|
31231
31231-16010
Hub, Clutch Release Bearing
[08.1979 - 08.1981] AL1#..MTM |
31231-16010 |
— | ||
| replacement | |||||
|
31231
|
31231
31231-16020
Hub, Clutch Release Bearing
[08.1979 - 08.1981] AL1#..MTM |
31231-16020 |
— | ||
|
31231A
|
31231A
90363-40005 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [08.1979 - 02.1980] AL1#..MTM |
90363-40005 |
US $40.04 |
||
| replacement | |||||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1979 - 02.1980] AL1#..MTM |
90363-40022 |
from US $41.80 |
||
|
31231A
|
31231A
90363-40013 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [02.1980 - 09.1980] AL12..MTM;AL10..MTM..USA |
90363-40013 |
US $40.04 |
||
| replacement | |||||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[02.1980 - 09.1980] AL12..MTM;AL10..MTM..USA |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-16010 Clip Or Spring, Release Bearing HubRELEASE BEARING HUB [08.1979 - 04.1982] AL1#..MTM |
31232-16010 |
US $1.60 |
||
|
31233
|
31233
31233-16010 Fork, Clutch ReleaseCLUTCH RELEASE [08.1979 - 03.1982] AL1#..MTM |
31233-16010 |
US $27.52 |
||
|
31233B
|
31233B
90109-10026 Bolt(For Release Fork & Release Lever Setting)[08.1979 - 07.1982] AL1#..MTM |
90109-10026 |
US $3.79 |
||
| replacement | |||||
|
31233B
|
31233B
90109-10079 Bolt(For Release Fork & Release Lever Setting)[08.1979 - 07.1982] AL1#..MTM |
90109-10079 |
US $3.35 |
||
|
31240A
|
31240A
90508-32004 Spring, Tension(For Clutch Release Fork Return)[08.1979 - 07.1982] AL1#..MTM |
90508-32004 |
US $3.35 |
||
|
31250
|
31250
31250-16011
Disc Assy, Clutch
[08.1979 - 08.1981] AL1#..MTM |
31250-16011 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12175 Disc Assy, Clutch[08.1979 - 08.1981] AL1#..MTM |
31250-12175 |
from US $122.30 |
||
|
33311W
|
33311W
97123-06001 Bearing (For Input Shaft)[08.1979 - 10.1980] AL1#..MTM 6001 ZZ C3 |
97123-06001 |
US $5.59 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
