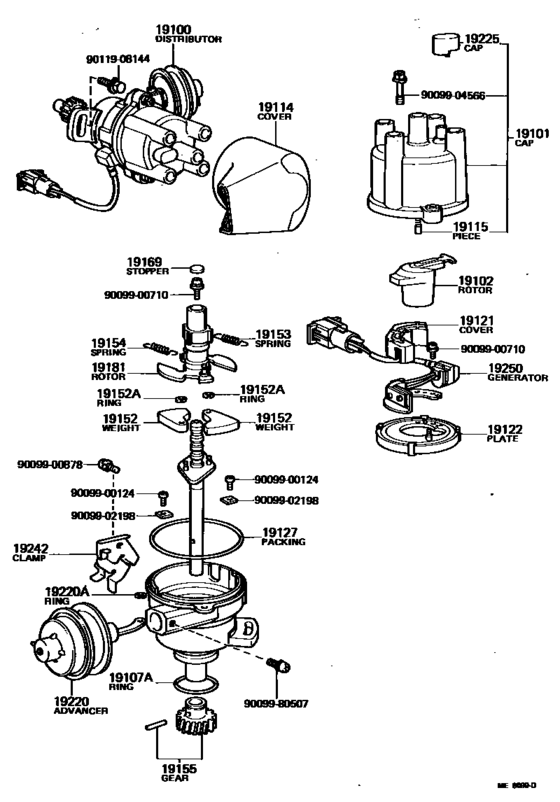

Distributor ([08.1979 - 07.1982] (7908-8207)1AC,3AC) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-15030 Distributor Assy[08.1979 - 08.1980] 1AC..AL10..USA |
19100-15030 |
US $1,023.57 |
||
| replacement | |||||
|
19100
|
19100
19100-15050
Distributor Assy
[08.1979 - 08.1980] 1AC..AL10..USA |
19100-15050 |
— | ||
|
19101
|
19101
19101-15021 Cap Sub-Assy, Distributor[08.1979 - 07.1982] 1AC,3AC..AL1# |
19101-15021 |
US $41.93 |
||
| replacement | |||||
|
19101
|
19101
19101-15022 Cap Sub-Assy, Distributor[08.1979 - 07.1982] 1AC,3AC..AL1# |
19101-15022 |
US $41.64 |
||
|
19102
|
19102
19102-15021 Rotor Sub-Assy, Distributor[08.1979 - 08.1980] 1AC..AL10..USA |
19102-15021 |
US $9.46 |
||
| replacement | |||||
|
19102
|
19102
19102-38210 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 08.1980] 1AC..AL10..USA |
19102-38210 |
US $15.20 |
||
|
19107A
|
19107A
96710-04030
Ring, O, Distributor Housing
[08.1979 - 07.1982] 1AC,3A#..AL1# |
96710-04030 |
— | ||
| replacement | |||||
|
19107A
|
19107A
96711-35030 Ring, O, Distributor Housing[08.1979 - 07.1982] 1AC,3A#..AL1# |
96711-35030 |
from US $3.49 |
||
|
19114
|
19114
19114-15010
Cover, Water Proof(For Distributor)
[08.1979 - 08.1980] 1AC..AL10..CND; 1AC..AL10..USA COLD SPEC |
19114-15010 |
— | ||
| replacement | |||||
|
19114
|
19114
19114-15011
Cover, Water Proof(For Distributor)
[08.1979 - 08.1980] 1AC..AL10..CND; 1AC..AL10..USA COLD SPEC |
19114-15011 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1979 - 07.1982] 1AC,3A#..AL1# |
19115-50010 |
— | ||
|
19121
|
19121
19121-15021
Cover, Dust Proof
[08.1979 - 07.1982] 1AC,3AC..AL1# |
19121-15021 |
— | ||
|
19122
|
19122
19122-15010
Plate, Stationary, Distributor
[08.1979 - 07.1982] 1AC,3AC..AL1# |
19122-15010 |
— | ||
|
19127
|
19127
19127-15021 Packing, Dust Proof[08.1979 - 07.1982] 1AC,3AC..AL1# |
19127-15021 |
from US $1.40 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1979 - 07.1982] 1AC,3A#..AL1# |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1979 - 07.1982] 1AC,3A#..AL1# |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07104
Ring, Snap(For Governor Weight)
[08.1979 - 07.1982] 1AC,3A..AL1# |
90099-07104 |
— | ||
|
19153
|
19153
19153-15030
Spring, Governor, A
[08.1979 - 08.1980] 1AC..AL10 |
19153-15030 |
— | ||
|
19154
|
19154
19154-15030
Spring, Governor, B
[08.1979 - 08.1980] 1AC..AL10 |
19154-15030 |
— | ||
|
19155
|
19155
19195-15021
Gear, Spiral, Distributor
[08.1979 - 07.1982] 1AC,3A#..AL1# |
19195-15021 |
— | ||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[08.1979 - 07.1982] 1AC,3A#..AL1# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[08.1979 - 07.1982] 1AC,3A#..AL1# |
19169-63011 |
— | ||
|
19181
|
19181
19181-15030
Rotor, Distributor, Signal
[08.1979 - 08.1980] 1AC..AL10 |
19181-15030 |
— | ||
|
19220
|
19220
19220-15030 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1979 - 08.1980] 1AC..AL10 |
19220-15030 |
US $91.73 |
||
|
19220A
|
19220A
90099-07104
Ring, Snap(For Governor Weight)
[08.1979 - 07.1982] 1AC,3A..AL1# |
90099-07104 |
— | ||
|
19225
|
19225
19225-38011
Cap, Rubber
[08.1979 - 07.1982] 1AC,3AC..AL1# |
19225-38011 |
— | ||
|
19242
|
19242
19242-15010
Clamp, Cord
[08.1979 - 10.1979] 1AC..AL10 |
19242-15010 |
— | ||
|
19242
|
19242
19242-15030
Clamp, Cord
[10.1979 - 07.1982] 1AC,3AC..AL1# |
19242-15030 |
— | ||
|
19250
|
19250
19250-15030 Generator Assy, SignalSIGNAL [08.1979 - 07.1982] 1AC,3AC..AL1# |
19250-15030 |
US $167.44 |
||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908144
|
9011908144
90119-08144
New Genuine Part
|
90119-08144 |
— | ||
| replacement | |||||
|
9011908144
|
9011908144
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
