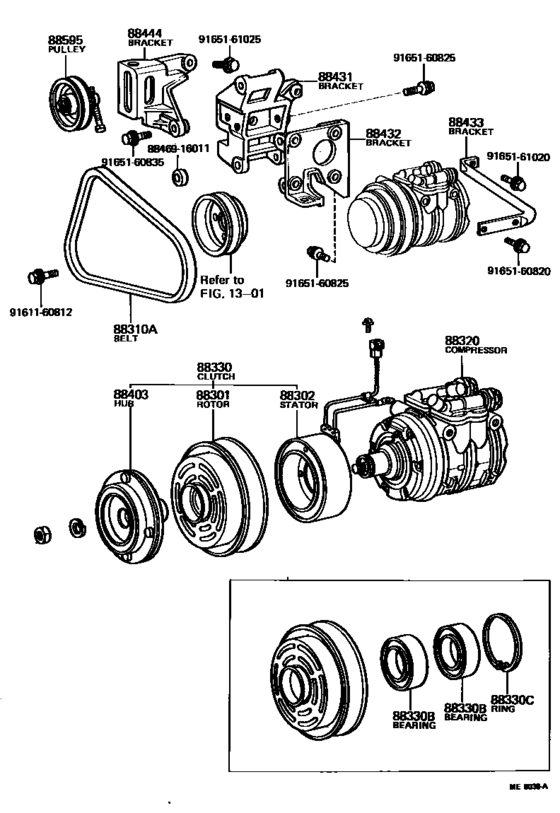

Heating & Air Conditioning - Compressor ([08.1979 - 07.1982] (7908-8207)USA) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12040
Rotor Sub-Assy, Magnet Clutch
[08.1979 - 08.1981] AL1#..USA |
88412-12040 |
— | ||
|
88302
|
88302
88411-22040
Stator Sub-Assy, Magnet Clutch
[08.1979 - 08.1981] AL1#..USA |
88411-22040 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[08.1979 - 08.1981] AL1#..USA |
88411-14050 |
— | ||
|
88310A
|
88310A
99332-60950
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1979 - 08.1981] AL1#..USA |
99332-60950 |
— | ||
|
88320
|
88320
88320-16020
Compressor Assy, Cooler
[08.1979 - 08.1981] AL1#..USA |
88320-16020 |
— | ||
|
88330
|
88330
88410-22060 Clutch Assy, Magnet[08.1979 - 08.1981] AL1#..USA |
88410-22060 |
US $582.40 |
||
| replacement | |||||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[08.1979 - 08.1981] AL1#..USA |
88410-14090 |
US $551.82 |
||
|
88330B
|
88330B
90099-10108
Bearing, Magnet Clutch
[08.1979 - 08.1981] AL1#..USA |
90099-10108 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[08.1979 - 08.1981] AL1#..USA |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07094
Ring, Snap (For Magnet Clutch)
[08.1979 - 08.1981] AL1#..USA |
90099-07094 |
— | ||
|
88403
|
88403
88403-26030
Hub Sub-Assy, Magnet Clutch
[08.1979 - 08.1981] AL1#..USA |
88403-26030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-30270
Hub Sub-Assy, Magnet Clutch
[08.1979 - 08.1981] AL1#..USA |
88403-30270 |
— | ||
|
88431
|
88431
88431-16010
Bracket, Compressor Mounting, No.1
[08.1979 - 08.1981] AL1#..USA |
88431-16010 |
— | ||
|
88432
|
88432
88437-16010
Bracket, Compressor Mounting, No.2
[08.1979 - 08.1981] AL1#..USA |
88437-16010 |
— | ||
|
88433
|
88433
88434-16010
Bracket, Compressor Mounting, No.3
[08.1979 - 08.1981] AL1#..USA |
88434-16010 |
— | ||
|
88444
|
88444
88444-16010
Bracket, Idle Pulley
[08.1979 - 08.1980] AL10..USA |
88444-16010 |
— | ||
| replacements | |||||
|
88444
|
88444
91622-61022 BOLT WWASHER[08.1979 - 08.1980] AL10..USA |
91622-61022 |
US $1.25 |
||
|
88444
|
88444
88444-16011
Bracket, Idle Pulley
[08.1979 - 08.1980] AL10..USA |
88444-16011 |
— | ||
|
88595
|
88595
88440-16010
Pulley, Cooler Compressor Idle
[08.1979 - 08.1981] AL1#..USA |
88440-16010 |
— | ||
| replacement | |||||
|
88595
|
88595
88440-22050
Pulley, Cooler Compressor Idle
[08.1979 - 08.1981] AL1#..USA |
88440-22050 |
— | ||
|
8846916011
|
8846916011
88469-16011
Switch, Pressure Control
|
88469-16011 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.54 |
||
