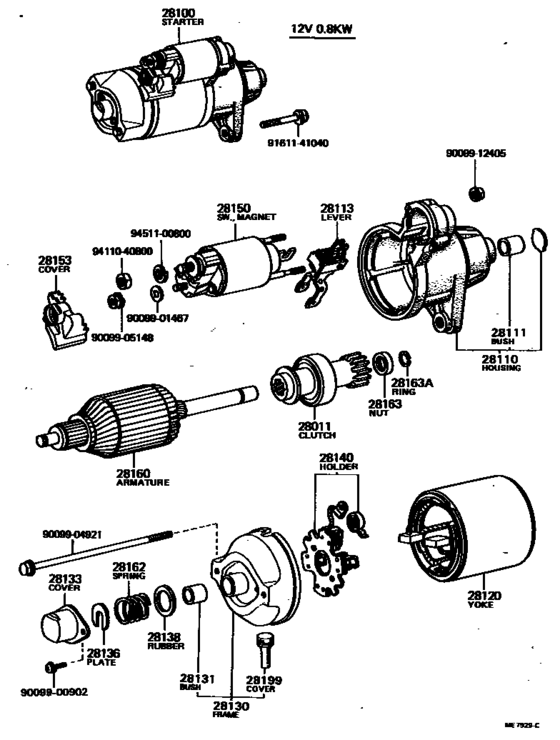

Starter ([08.1979 - 07.1982] (7908-8207)1AC,3AC..USA) Diagram Toyota TERCEL
- Year
- 1979 - 1980
- Sales region
- U.S.A.
- Frame
- AL10
- grade
- DLX
- body
- 2DS
- ENGINE
- 1AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-15010 Clutch Sub-Assy, Starter[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28011-15010 |
US $69.01 |
||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-15011 Starter Assy[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW,12V 0.8KW |
28100-15011 |
US $942.03 |
||
|
28100
|
28100
28100-15020 Starter Assy[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 1.0KW,12V 0.9KW |
28100-15020 |
US $1,240.51 |
||
|
28110
|
28110
28110-15011 Housing Assy, Starter Drive[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28110-15011 |
US $84.45 |
||
|
28110
|
28110
28110-15020 Housing Assy, Starter Drive[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28110-15020 |
US $80.08 |
||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28111-51011 |
— | ||
|
28113
|
28113
28113-15011 Lever, Starter Pinion Drive[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28113-15011 |
US $16.45 |
||
|
28120
|
28120
28120-15010
Yoke Assy, Starter
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28120-15010 |
— | ||
|
28120
|
28120
28120-26070
Yoke Assy, Starter
[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28120-26070 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-15010 Frame Assy, Starter Commutator End[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28130-15010 |
US $34.07 |
||
|
28130
|
28130
28130-15020 Frame Assy, Starter Commutator End[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28130-15020 |
US $21.11 |
||
|
28131
|
28131
90099-10134
Bearing, Starter Flange
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
90099-10134 |
— | ||
|
28133
|
28133
28132-15010
Cover, Starter Bearing(For Drive Housing)
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28132-15010 |
— | ||
| replacement | |||||
|
28133
|
28133
28132-15011
Cover, Bearing(For End Frame)
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28132-15011 |
— | ||
|
28136
|
28136
28136-15010
Plate, Starter Lock
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28136-15010 |
— | ||
|
28138
|
28138
28138-15010
Rubber(For Starter Bearing Cover)
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28138-15010 |
— | ||
|
28140
|
28140
28140-15010
Holder Assy, Starter Brush
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28140-15010 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28140-26070 |
from US $16.77 |
||
|
28150
|
28150
28150-15011 Switch Assy, Magnet StarterMAGNET STARTER [08.1979 - 09.1980] 1AC,3AC..AL1#..USA 12V 0.8KW |
28150-15011 |
US $138.32 |
||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[08.1979 - 09.1980] 1AC,3AC..AL1#..USA 12V 0.8KW |
28150-37011 |
— | ||
|
28150
|
28150
28150-15020 Switch Assy, Magnet Starter[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28150-15020 |
US $352.35 |
||
|
28153
|
28153
28159-15010
Cover, Magnet Switch
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28159-15010 |
— | ||
|
28160
|
28160
28160-15010 Armature Assy, Starter[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28160-15010 |
US $230.05 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1979 - 07.1982] 1AC,3A#..AL1# 12V 0.9KW |
28160-26071 |
— | ||
|
28162
|
28162
28162-15010
Spring, Starter Brake
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28162-15010 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
90099-07047 |
— | ||
|
28199
|
28199
28199-77090
Cover, Starter End Frame
[08.1979 - 07.1982] 1AC,3AC..AL1#..USA 12V 0.8KW |
28199-77090 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009901467
|
9009901467
90099-01467
New Genuine Part
|
90099-01467 |
— | ||
|
9009904921
|
9009904921
90099-04921
New Genuine Part
|
90099-04921 |
— | ||
|
9009905148
|
9009905148
90099-05148
New Genuine Part
|
90099-05148 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9161141040
|
9161141040
91611-41040
Bolt(for Transaxle Case & Engine Setting)
|
91611-41040 |
— | ||
| replacement | |||||
|
9161141040
|
9161141040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.08 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
