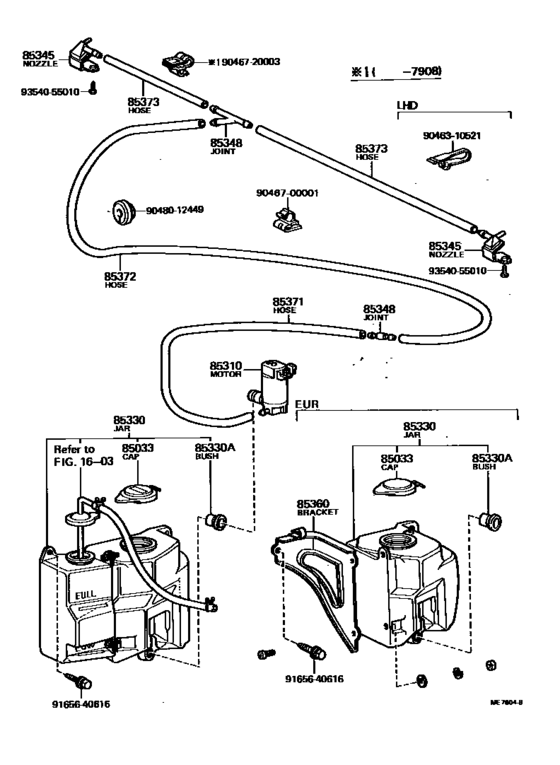

Windshield Washer ([01.1979 - ] (7901- )) Diagram Toyota TERCEL
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- AL11
- grade
- DLX
- body
- 4DS
- ENGINE
- 2A
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 08.1979
- To
- 04.1982
- Gear Shift Type
- 3FC
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-16010
Cap Assy, Windshield Washer
[01.1979 - 04.1982] AL11 |
85332-16010 |
— | ||
|
85310
|
85310
85310-20100
Motor And Pump Assy, Windshield Washer
[01.1979 - 04.1982] AL11 |
85310-20100 |
— | ||
| replacement | |||||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[01.1979 - 04.1982] AL11 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85330-16020
Jar Assy, Windshield Washer
[01.1979 - 02.1979] AL11..GEN |
85330-16020 |
— | ||
| replacement | |||||
|
85330
|
85330
85330-16060
Jar Assy, Windshield Washer
[01.1979 - 02.1979] AL11..GEN |
85330-16060 |
— | ||
|
85330
|
85330
85330-16021
Jar Assy, Windshield Washer
[02.1979 - 08.1979] AL11..GEN |
85330-16021 |
— | ||
| replacement | |||||
|
85330
|
85330
85330-16060
Jar Assy, Windshield Washer
[02.1979 - 08.1979] AL11..GEN |
85330-16060 |
— | ||
|
85330
|
85330
85330-16022
Jar Assy, Windshield Washer
[08.1979 - 08.1980] AL11..GEN |
85330-16022 |
— | ||
| replacement | |||||
|
85330
|
85330
85330-16060
Jar Assy, Windshield Washer
[08.1979 - 08.1980] AL11..GEN |
85330-16060 |
— | ||
|
85330
|
85330
85330-16060
Jar Assy, Windshield Washer
[08.1980 - 04.1982] AL11..GEN |
85330-16060 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[01.1979 - 04.1982] AL11 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[01.1979 - 04.1982] AL11 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[01.1979 - 04.1982] AL11 |
90068-32002 |
US $7.46 |
||
|
85345
|
85345
85345-16010
Nozzle, Windshield Washer
[01.1979 - 04.1982] AL11 RH |
85345-16010 |
— | ||
|
85345
|
85345
85346-16010
Nozzle, Windshield Washer
[01.1979 - 04.1982] AL11 LH |
85346-16010 |
— | ||
|
85348
|
85348
85355-14010
Joint, Windshield Washer Hose, No.1
[01.1979 - 04.1982] AL11 3 WAY |
85355-14010 |
— | ||
| replacement | |||||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[01.1979 - 04.1982] AL11 3 WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85355-87201
Joint, Windshield Washer Hose, No.1
[01.1979 - 04.1982] AL11 2 WAY |
85355-87201 |
— | ||
| replacement | |||||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[01.1979 - 04.1982] AL11 2 WAY |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1979 - 04.1982] AL11 *H,L=400 |
90446-06013 |
US $0.70 |
||
|
85371
|
85371
90446-06286
Hose, Windshield Washer (From Motor To Joint)
[01.1979 - 12.1979] AL11 *H,L=400 |
90446-06286 |
— | ||
| replacement | |||||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1979 - 12.1979] AL11 *H,L=400 |
90446-06013 |
US $0.70 |
||
|
85372
|
85372
90099-33315
Hose Or Pipe(For Radiator Reserve Tank)
[01.1979 - 12.1979] AL11 *H,L=900 |
90099-33315 |
— | ||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1979 - 04.1982] AL11 *H,L=900 |
90446-06013 |
US $0.70 |
||
|
85373
|
85373
90099-33248
Hose, Rear Washer (From Joint To Joint), No.3
[01.1979 - 04.1982] AL11 *H,L=80 |
90099-33248 |
— | ||
|
85373
|
85373
90446-06286
Hose, Windshield Washer (From Motor To Joint)
[01.1979 - 04.1982] AL11 *H,L=400 |
90446-06286 |
— | ||
| replacement | |||||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[01.1979 - 04.1982] AL11 *H,L=400 |
90446-06013 |
US $0.70 |
||
|
9046310521
|
9046310521
90463-10521 CLAMP |
90463-10521 |
from US $1.07 |
||
|
9046700001
|
9046700001
90467-00001 Clamp, Hose(for Water Hose) |
90467-00001 |
US $2.04 |
||
| replacement | |||||
|
9046700001
|
9046700001
16581-63010 Clamp, Hose(for Water Hose) |
16581-63010 |
US $4.16 |
||
|
9046720003
|
9046720003
90467-20003
New Genuine Part
|
90467-20003 |
— | ||
|
9048012449
|
9048012449
90480-12449
New Genuine Part
|
90480-12449 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.12 |
||
