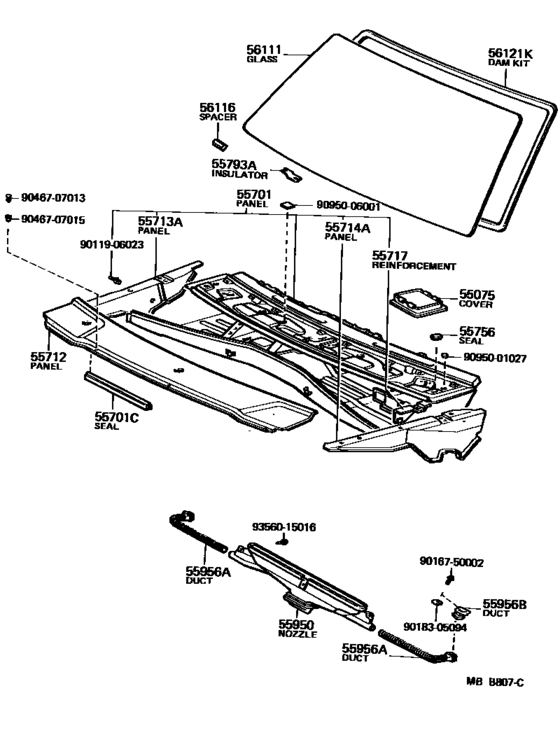

Cowl Panel & Windshield Glass ([08.1980 - 07.1982] (8008-8207)) Diagram Toyota TERCEL
- Year
- 1980 - 1981
- Sales region
- U.S.A.
- Frame
- AL12
- grade
- DLX
- body
- 2DS
- ENGINE
- 3AC
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1980
- To
- 08.1981
- Gear Shift Type
- 5F
- Vehicle Model
- TERCEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55075
|
55075
55077-16010
Cover Sub-Assy, Heater Air Duct Hole
[08.1979 - 07.1982] AL1#..USA |
55077-16010 |
— | ||
|
55701
|
55701
55700-16021
Panel Sub-Assy, Cowl
[08.1980 - 07.1982] AL12 |
55700-16021 |
— | ||
|
55701
|
55701
55700-16901
Panel Sub-Assy, Cowl
[08.1979 - 08.1980] AL1# |
55700-16901 |
— | ||
|
55701C
|
55701C
53389-16010 Seal, Hood To Cowl Top SideHOOD TO COWL TOP SIDE [08.1979 - 08.1980] AL1# |
53389-16010 |
US $10.92 |
||
| replacement | |||||
|
55701C
|
55701C
53389-16020
Seal, Hood To Cowl Top Side
[08.1979 - 08.1980] AL1# |
53389-16020 |
— | ||
|
55701C
|
55701C
53389-16020
Seal, Hood To Cowl Top Side
[08.1980 - 07.1982] AL12 |
53389-16020 |
— | ||
|
55712
|
55712
55711-16020
Panel, Cowl Top Outside, Front
[08.1979 - 08.1980] AL1# |
55711-16020 |
— | ||
|
55712
|
55712
55711-16040 Panel, Cowl Top Outside, FrontCOWL TOP OUTSIDE, FRONT [08.1980 - 07.1982] AL12 |
55711-16040 |
US $71.34 |
||
|
55713A
|
55713A
55713-16010
Panel, Cowl Top Side, Rh
[08.1979 - 07.1982] AL1# |
55713-16010 |
— | ||
|
55714A
|
55714A
55714-16010
Panel, Cowl Top Side, Lh
[08.1979 - 07.1982] AL1# |
55714-16010 |
— | ||
|
55717
|
55717
55723-16010
Reinforcement, Cowl Top Outside
[08.1979 - 07.1982] AL1# RH |
55723-16010 |
— | ||
|
55717
|
55717
55724-16010
Reinforcement, Cowl Top Outside
[08.1979 - 07.1982] AL1# LH |
55724-16010 |
— | ||
|
55756
|
55756
55757-16010 Seal, Heater Air DuctHEATER AIR DUCT [08.1980 - 07.1982] AL12 |
55757-16010 |
US $8.30 |
||
|
55793A
|
55793A
55788-16030
Insulator, Cowl Top Panel, No.2
[08.1980 - 07.1982] AL12 |
55788-16030 |
— | ||
|
55950
|
55950
55950-16010
Nozzle Assy, Defroster
[08.1979 - 07.1982] AL1# |
55950-16010 |
— | ||
|
55956A
|
55956A
55971-16010
Duct, Side Defroster Nozzle, No.1
[08.1979 - 07.1982] AL1# RH |
55971-16010 |
— | ||
|
55956A
|
55956A
55971-16020
Duct, Side Defroster Nozzle, No.1
[08.1979 - 07.1982] AL1# LH |
55971-16020 |
— | ||
|
55956B
|
55956B
55972-16020
Duct, Side Defroster Nozzle, No.2
[08.1979 - 07.1982] AL1# |
55972-16020 |
— | ||
|
56111
|
56111
56111-16040
Glass, Windshield
[08.1979 - 08.1981] AL1#..DLX,SR5 *TL,T=5.3 |
56111-16040 |
— | ||
|
56116
|
56116
56116-16010
Spacer, Windshield Glass
[08.1979 - 07.1982] AL1# |
56116-16010 |
— | ||
|
56121K
|
56121K
04562-30030
Dam Kit, Windshield Glass
[08.1979 - 07.1982] AL1# |
04562-30030 |
— | ||
| replacement | |||||
|
56121K
|
56121K
04562-30040 Dam Kit, Windshield Glass[08.1979 - 07.1982] AL1# |
04562-30040 |
from US $36.33 |
||
|
9011906023
|
9011906023
90119-06023 New Genuine Part |
90119-06023 |
US $1.60 |
||
| replacement | |||||
|
9011906023
|
9011906023
90119-06514 BOLT WWASHER |
90119-06514 |
US $1.60 |
||
|
9016750002
|
9016750002
90167-50002
Direct
|
90167-50002 |
— | ||
| replacement | |||||
|
9016750002
|
9016750002
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9046707013
|
9046707013
90467-07013 New Genuine Part |
90467-07013 |
US $2.04 |
||
|
9046707015
|
9046707015
90467-07015 New Genuine Part |
90467-07015 |
US $2.04 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9356015016
|
9356015016
93560-15016 New Genuine Part |
93560-15016 |
US $1.12 |
||
