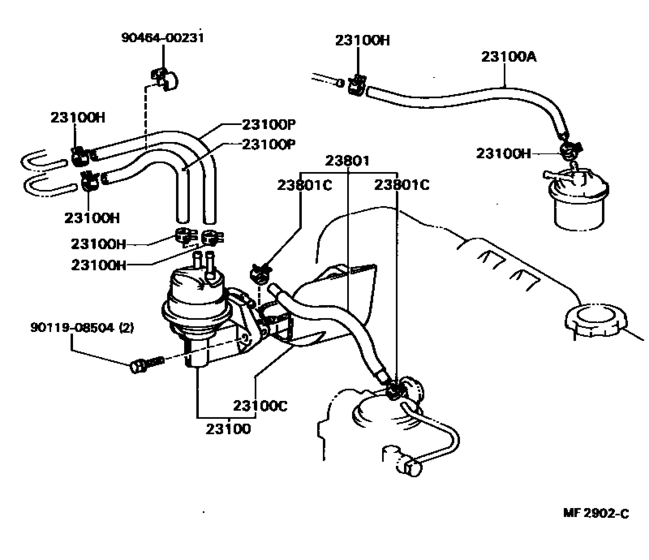

Fuel Pump & Pipe ([05.1982 - ] (8205- )) Diagram Toyota TERCEL
- Year
- 1982 - 1984
- Sales region
- Europe
- Frame
- AL20
- grade
- DLX
- body
- SED
- ENGINE
- 2A
- TRANSMISSION
- ATM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 3FC
- No.of Doors
- 5DS
- Vehicle Model
- TERCEL
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-19155
Pump Assy, Fuel
[05.1982 - 05.1986] 2A,3A#..AL2# |
23100-19155 |
— | ||
| replacement | |||||
|
23100
|
23100
23100-19095
Pump Assy, Fuel
[05.1982 - 05.1986] 2A,3A#..AL2# |
23100-19095 |
— | ||
|
23100A
|
23100A
95332-06030
Hose(For Carburetor)
[05.1982 - 01.1987] 2A,3A#..AL2#..LHD *H,L=240 |
95332-06030 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95333-06030
Hose, Fuel
[05.1982 - 01.1987] 2A,3A#..AL2#..LHD *H,L=240 |
95333-06030 |
— | ||
|
23100C
|
23100C
23915-15010
Insulator, Fuel Pump
[05.1982 - 02.1985] 2A,3A#..AL2# |
23915-15010 |
— | ||
| replacement | |||||
|
23100C
|
23100C
23915-15011
Insulator, Fuel Pump
[05.1982 - 02.1985] 2A,3A#..AL2# |
23915-15011 |
— | ||
|
23100H
|
23100H
96132-30400
Clip Or Clamp(For Ventilation Hose)
[05.1982 - 01.1988] 2A,3A#..AL2# RETURN |
96132-30400 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1982 - 01.1988] 2A,3A#..AL2# RETURN |
96132-51000 |
from US $1.48 |
||
|
23100H
|
23100H
96132-30600
Clip(For Actuator Hose)
[05.1982 - 01.1988] 2A,3A#..AL2# MAIN |
96132-30600 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[05.1982 - 01.1988] 2A,3A#..AL2# MAIN |
96132-51100 |
from US $1.92 |
||
|
23100P
|
23100P
95332-04030
Hose, No.2(For Lpg Regulator To Lpg Carburetor)
[05.1982 - 08.1984] 2A,3A..AL20,25..LHD *H,L=220,RETURN |
95332-04030 |
— | ||
| replacement | |||||
|
23100P
|
23100P
95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)[05.1982 - 08.1984] 2A,3A..AL20,25..LHD *H,L=220,RETURN |
95333-04030 |
US $8.56 |
||
|
23100P
|
23100P
95332-06030
Hose(For Carburetor)
[05.1982 - 08.1984] 2A,3A..AL20,25..LHD *H,L=260,MAIN |
95332-06030 |
— | ||
| replacement | |||||
|
23100P
|
23100P
95333-06030
Hose, Fuel
[05.1982 - 08.1984] 2A,3A..AL20,25..LHD *H,L=260,MAIN |
95333-06030 |
— | ||
|
23801
|
23801
23271-15010
Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1
[05.1982 - 08.1984] 2A,3AC..AL2#;3A..AL25..LHD |
23271-15010 |
— | ||
|
23801C
|
23801C
96132-30600
Clip(For Actuator Hose)
[05.1982 - 01.1988] 2A,3A#..AL2# |
96132-30600 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51100 Clip (For Hose)[05.1982 - 01.1988] 2A,3A#..AL2# |
96132-51100 |
from US $1.92 |
||
|
9011908504
|
9011908504
90119-08504
Bolt(For Clutch Release Cylinder Setting)
|
90119-08504 |
— | ||
| replacement | |||||
|
9011908504
|
9011908504
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9046400231
|
9046400231
90464-00231 Clamp, Fuel Pipe(Hose), No.1 |
90464-00231 |
US $3.32 |
||
